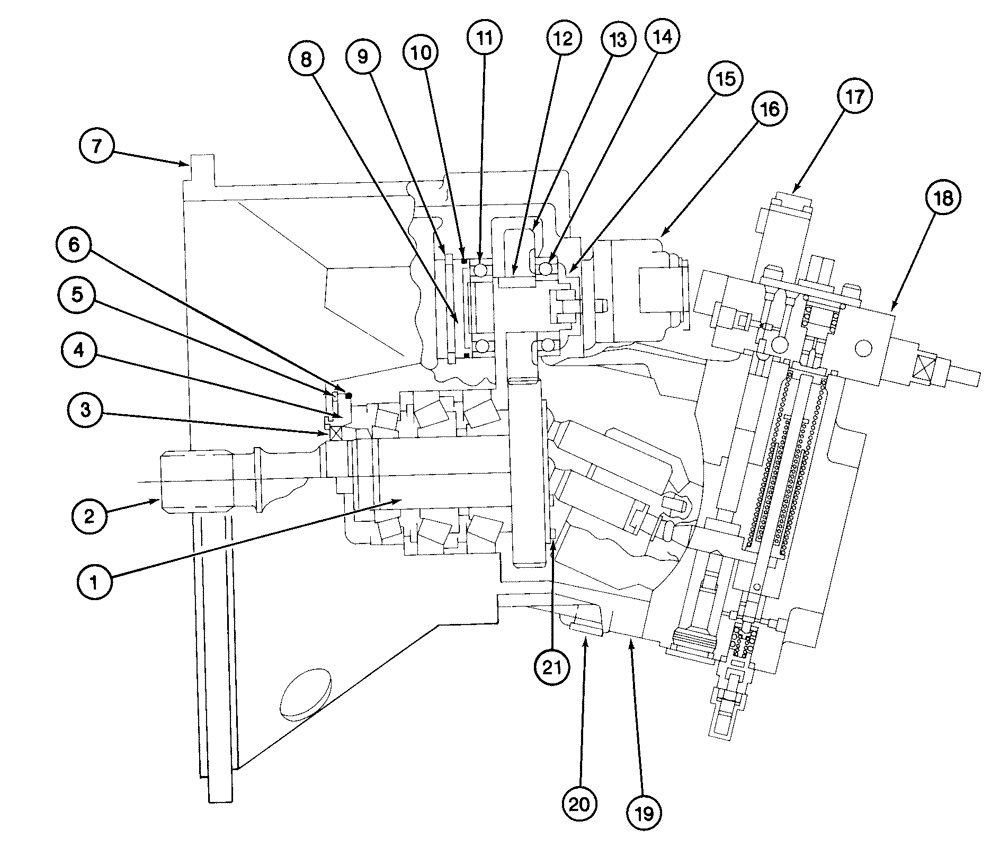

Запчасти Case 9060 (8-014) - 152813A1 AND 160661A1 EQUIPMENT PUMPS, PUMP DRIVE (08) - HYDRAULICS

152813A1

PUMP, HYDRAULIC

PUMP - hydraulic, production, parts list figures 8-014 - 8-022, order 160661A1 pump for service, Includes: Ref. 1 - 21, Serial Range: -EAC0600033

1шт.

160661A1

PUMP

- hydraulic, production, parts list figures 8-014 - 8-022, Includes: Ref. 1 - 21, Start Serial: EAC0600033

1шт.

1

NSS

NOT SOLD SEPARAT

ROTARY - idler side, includes shaft, nut, (2) bearings, spacer, shims, (7) pistons, (7) rings, cylinder block, control plate, retainer, (4) springs, center pin, (14) set screws and separation plate

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - pump, 152813A1 pump only

1шт.

2

164809A1

SHAFT

- pump, 160661A1 pump only

1шт.

3

155111A1

OIL SEAL

- oil, shaft

1шт.

4

156364A1

COVER

- oil seal

1шт.

5

800-21110

SNAP RING,M110, Int

RING - internal retaining, No. 110

1шт.

6

154787A1

O-RING

- cover

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - solenoid valve backup

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - end, pilot gear pump drive

1шт.

9

NSS

NOT SOLD SEPARAT

RING - internal retaining, No. 85

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - end plate

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - shaft, inner

1шт.

12

NSS

NOT SOLD SEPARAT

KEY - shaft

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - transfer, pilot gear pump

1шт.

14

NSS

NOT SOLD SEPARAT

BEARING - shaft, outer

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - drive, pilot gear pump

1шт.

16

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - pilot gear, parts list figure 8-018

1шт.

17

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - pressure reducing, parts list figure 8-018

1шт.

18

REF

INSTRUCTION

CONTROL ASSEMBLY - pump, parts list Figures 8-020 and 8-022

1шт.

19

155303A1

PACKING

- pump

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

21

163572A1

SCREW

BOLT - special

28шт.
