Запчасти Case 9060 (8-012) - BASIC HYDRAULIC CIRCUIT, COOLING SYSTEM AND CONTROL VALVE RETURN (08) - HYDRAULICS

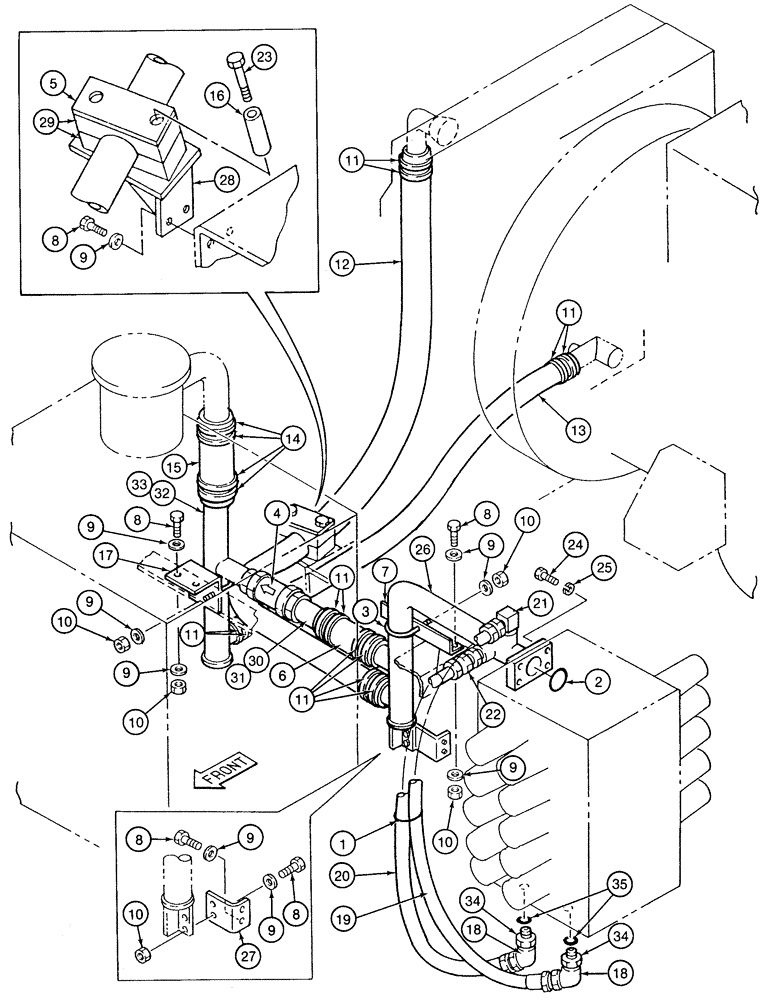

Схема запчастей Case 9060 - (8-012) - BASIC HYDRAULIC CIRCUIT, COOLING SYSTEM AND CONTROL VALVE RETURN (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

2

154679A1

O-RING

- return tube at valve

1шт.

3

152070A1

U-BOLT,M10 x 74mm W x 86mm L

- tube clamp

2шт.

4

153460A1

VALVE

- check

1шт.

5

158180A1

PLATE

- hose clamp retaining

1шт.

6

153385A1

HOSE

- 7-7/8 inch (200 mm) long

1шт.

7

152728A1

BRACKET

- tube support

1шт.

9

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

18шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

10шт.

11

157287A1

COLLAR

CLAMP - adjustable

12шт.

12

153066A1

HOSE

- 67 inch (1700 mm) long, to top of radiator

1шт.

13

153068A1

HOSE

- 47-5/8 inch (1210 mm) long, bottom of, Serial Range: radiator-tank

1шт.

14

152796A1

COLLAR

CLAMP - adjustable

4шт.

15

152894A1

HOSE

- 2-3/8 (60) ID x 9-1/2 inch (240 mm) long, top of tank EAC0600001, Serial Range: -EAC0600001

1шт.

15

152894A1

HOSE

- 2-3/8 (60) ID x 9-1/2 inch (240 mm) long, top of tank, Serial Range: EAC0600002-EAC0600002

1шт.

15

170066A1

HOSE,50.80 mm ID x 240.00 mm

top of tank 50.80 mm ID x 240.00 mm, Start Serial: EAC0600003

1шт.

16

153358A1

SPACER

- hose clamp

2шт.

17

152732A1

BRACKET

- tube support

1шт.

18

152162A1

ELBOW

- 45 degree

2шт.

19

152017A1

HOSE ASSY.,25.40 mm ID x 1200.00 mm

HYDRAULIC HOSE - Control valve return 25.40 mm ID x 1200.00 mm

1шт.

20

150495A1

HYDRAULIC HOSE,25.40 mm ID x 1000.00 mm

- Control valve return 25.40 mm ID x 1000.00 mm

1шт.

21

150724A1

ADAPTER

ELBOW - 90 degree

1шт.

22

150723A1

ADAPTER

- straight, special

1шт.

23

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

- hex, 10 - 1.5 x 120 mm

2шт.

24

627-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 14 - 2.0 x 35 mm, class 10.9, Serial Range: EAC0600001-EAC0600001

4шт.

24

627-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 14 - 2.0 x 35 mm, class 10.9, Serial Range: EAC0600002-EAC0600002

4шт.

24

150858A1

SPECIAL BOLT,High Strength, Hex, M14 x 35mm

BOLT - hex, special, Serial Range: EAC0600003-EAC0600003

4шт.

25

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

26

153075A1

TUBE,505, 460 mm Length

- oil cooler, at control valve

1шт.

27

153076A1

BRACKET

- tube support

1шт.

28

158178A1

BRACKET

- hose clamp support

1шт.

29

158179A1

CLAMP

- hose

2шт.

30

152840A1

TUBE,48.6 mm OD, 165 mm Length

- oil cooler, at check valve, Includes: Ref. 31

1шт.

31

152197A1

O-RING

- tube

1шт.

32

153074A1

TUBE ASSY.

TUBE - oil cooler, at tank, Includes: Ref. 33, Serial Range: EAC0600001-EAC0600001

1шт.

32

153074A1

TUBE ASSY.

TUBE - oil cooler, at tank, Includes: Ref. 33, Serial Range: EAC0600002-EAC0600002

1шт.

32

170019A1

TUBE,50.8 mm OD

- oil cooler, at tank, Includes: Ref. 33, Start Serial: EAC0600003

1шт.

33

152197A1

O-RING

- tube

1шт.

34

153050A1

SOCKET

BUSHING - reducer, Includes: Ref. 35

2шт.

35

154523A1

O-RING

- reducer bushing

1шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

10шт.

Выбрано товаров: 41
