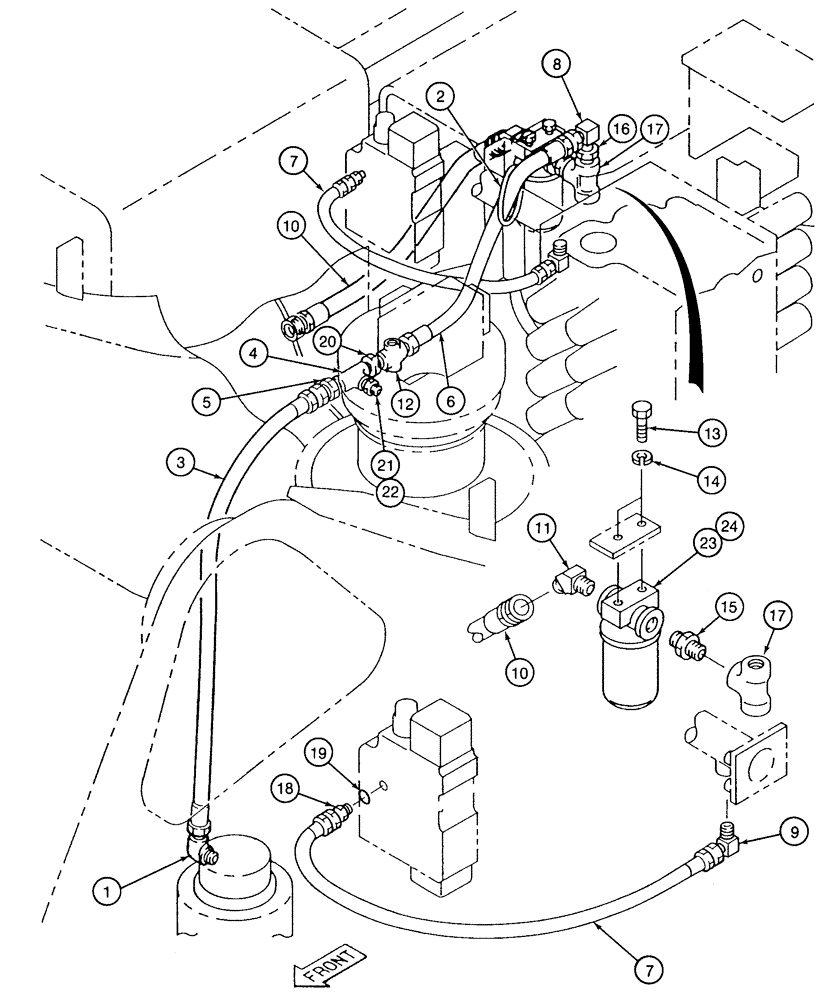

Запчасти Case 9060 (8-010) - BASIC HYDRAULIC CIRCUIT, RETURN LINES TO FILTER AND RESERVOIR (08) - HYDRAULICS

1

153438A1

ELBOW

- 90 degree, special, at hydraulic swivel

1шт.

2

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

3

152938A1

HOSE ASSY.

HOSE - 40-15/16 inch (1040 mm) long, swivel return

1шт.

4

153243A1

TEE

- hydraulic

1шт.

5

150720A1

ADAPTER

- straight, special

1шт.

6

151058A1

HYDRAULIC HOSE,190.00 mm ID x 690.00 mm

Return to filter 190.00 mm ID x 690.00 mm

1шт.

7

152707A1

HYDRAULIC HOSE,12.50 mm ID x 750.00 mm

Pump return 12.50 mm ID x 750.00 mm

1шт.

8

153622A1

ADAPTER

ELBOW - 90 degree, special

1шт.

9

150602A1

ADAPTER

ELBOW - 90 degree

1шт.

10

152681A1

HOSE ASSY.

HOSE - 29-1/8 inch (740 mm) long, filter, Serial Range: return-tank

1шт.

11

150238A1

ADAPTER

ELBOW - 45 degree, special

1шт.

12

150965A1

CROSS

- hydraulic

1шт.

13

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

14

892-11010

LOCK WASHER,M10

2шт.

15

152133A1

NIPPLE, LUBE

ADAPTER - straight, at filter

1шт.

16

151077A1

BUSHING

REDUCER - special

1шт.

17

152146A1

TEE

- hydraulic, at filter

1шт.

18

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, Includes: Ref. 19

1шт.

19

154487A1

O-RING

- adapter

1шт.

20

150852A1

NIPPLE, LUBE

CONNECTOR - straight

1шт.

21

150167A1

NIPPLE, LUBE

ADAPTER - straight, special, Includes: Ref. 22

1шт.

22

154487A1

O-RING

- adapter

1шт.

23

150792A1

FILTER ASSY

FILTER - oil, Includes: Ref. 24

1шт.

24

150794A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.
