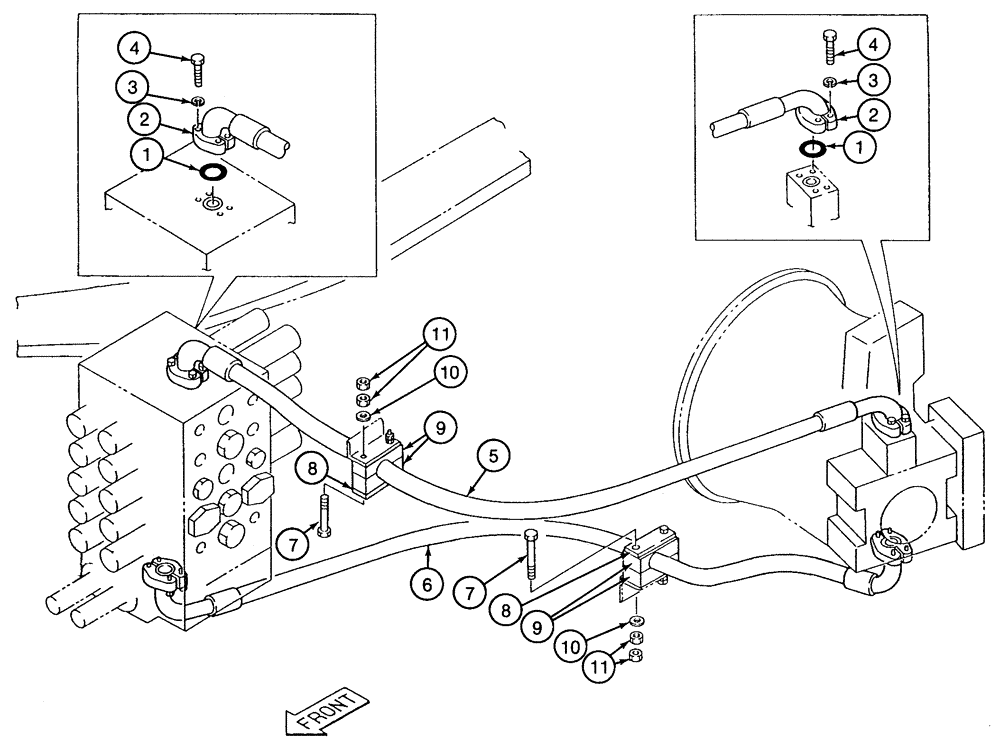

Запчасти Case 9060 (8-008) - BASIC HYDRAULIC CIRCUIT, PUMP TO VALVE (08) - HYDRAULICS

1

153626A1

O-RING

- pressure line hose at pump

4шт.

2

150124A1

FLANGE

- split

8шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

16шт.

4

827-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 10.9

16шт.

5

152850A1

HOSE ASSY.

HOSE - 74-3/4 inch (1900 mm) long, top of pump to top of valve

1шт.

6

153071A1

HOSE ASSY.

HOSE - 74-3/4 inch (1900 mm) long, bottom of pump to bottom of valve

1шт.

7

827-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

4шт.

8

152847A1

PLATE

- retaining, hose clamp

2шт.

9

152735A1

HOSE CLAMP

CLAMP - hose

4шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

11

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

8шт.
