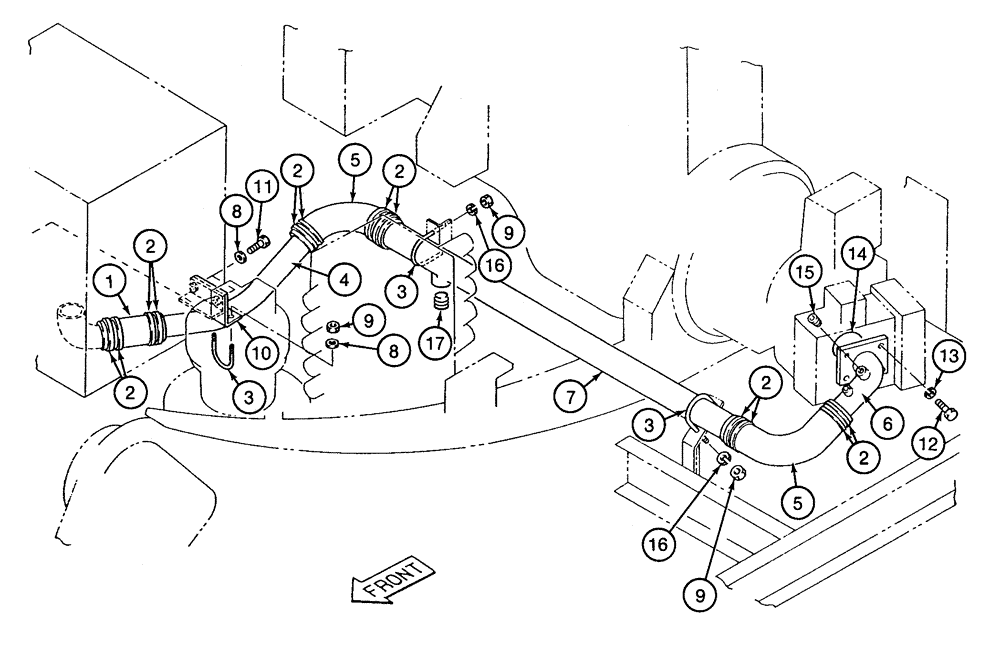

Запчасти Case 9060 (8-006) - BASIC HYDRAULIC CIRCUIT, RESERVOIR TO PUMP (08) - HYDRAULICS

1

152375A1

HOSE,88.90 mm ID x 200.00 mm

- At reservoir 88.90 mm ID x 200.00 mm

1шт.

2

170059A1

CLAMP

- hose

12шт.

3

152074A1

U-BOLT,M12 x 104mm W x 120mm L

- special

3шт.

4

152836A1

PIPE

TUBE - suction line, at tank

1шт.

5

152970A1

HOSE

- suction, pump end

2шт.

6

153072A1

TUBE,89.1 mm OD, 221.3, 136.3 mm Length

- suction line, at pump

1шт.

7

170018A1

HYD TUBE,89.1 mm OD

TUBE - suction line, center

1шт.

8

150811A1

WASHER

- flat, special, 12 mm

4шт.

9

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

6шт.

10

152837A1

BRACKET

- suction line support

1шт.

11

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

12

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

13

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

14

152185A1

O-RING,134.40mm ID x 3.10mm W

- suction line tube at pump

1шт.

15

151039A1

PLUG

- suction tube, pump end

1шт.

16

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

17

170060A1

PLUG

- port, tube

1шт.
