Запчасти Case 9060 (8-002) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

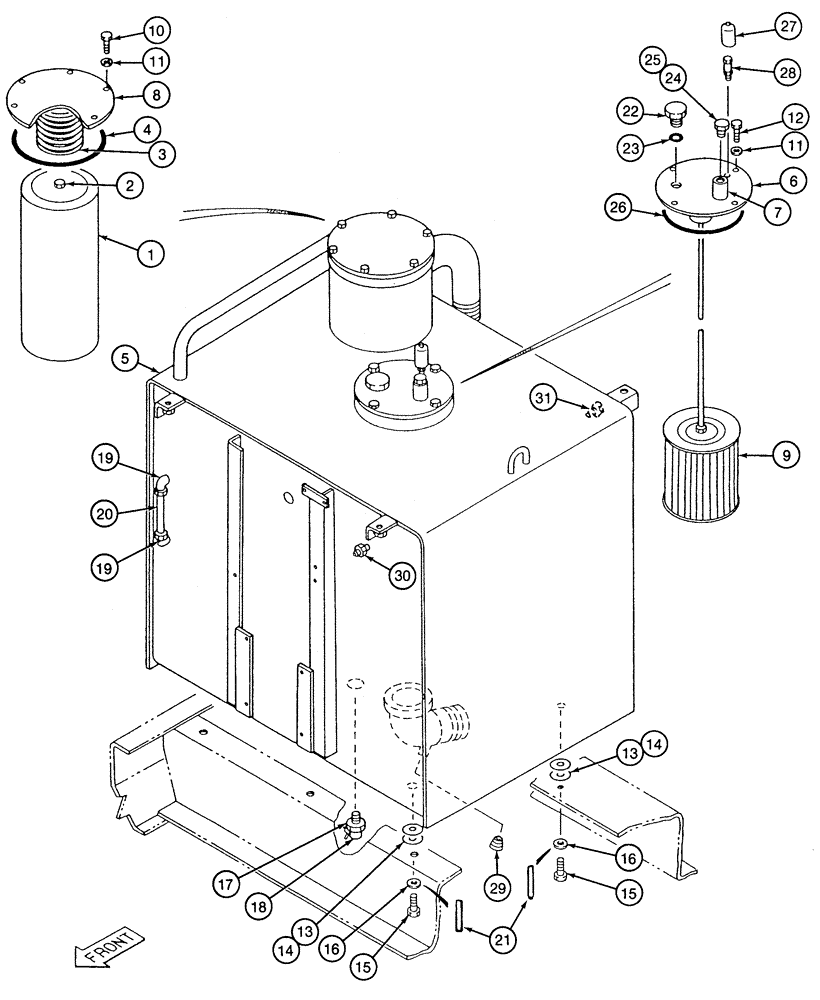

Схема запчастей Case 9060 - (8-002) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

153030A1

HYDRAULIC OIL FILTER

FILTER - return, hydraulic oil

1шт.

2

153037A1

VALVE

- relief, hydraulic reservoir

1шт.

3

153343A1

SPRING

- compression

1шт.

4

150049A1

O-RING,1891.3mm ID x 5.7mm Width

- return filter cover

1шт.

5

152941A1

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic oil, Serial Range: EAC0600001-EAC0600001

1шт.

5

152941A1

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic oil, Serial Range: EAC0600002-EAC0600002

1шт.

5

170021A1

RESERVOIR

- hydraulic oil, Start Serial: EAC0600003

1шт.

6

151095A1

COVER

- air breather, Includes: Ref. 7

1шт.

7

152931A1

FITTING

ADAPTER - straight, cover

1шт.

8

153340A1

COVER

- return filter

1шт.

9

152721A1

FUEL FILTER

STRAINER - hydraulic oil, lower

1шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

6шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

10шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

4шт.

13

170003A1

FRICTION WASHER

PLATE - shim, was 150166A1

1шт.

14

170002A1

FRICTION WASHER

PLATE - shim, was 150479A1

1шт.

15

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

6шт.

16

153357A1

SPACER

- reservoir mounting, Serial Range: EAC0600001-EAC0600001

6шт.

16

153357A1

SPACER

- reservoir mounting, Serial Range: EAC0600002-EAC0600002

6шт.

17

153487A1

BUSHING

- reducer

1шт.

18

153371A1

COCK, DRAIN

FITTING - drain, reservoir

1шт.

19

150527A1

ELBOW

- 90 degree, special, oil level gauge

2шт.

20

150531A1

TUBE,8 mm ID, 10 mm OD, 122 mm Length

- sight gauge, oil level

1шт.

21

153357A1

SPACER

- reservoir mounting, Start Serial: EAC0600003

6шт.

22

152193A1

PLUG

- port, air breather cover, large port, Includes: Ref. 23

1шт.

23

152197A1

O-RING

- plug

1шт.

24

152800A1

PLUG

- port, Includes: Ref. 25

1шт.

25

154487A1

O-RING

- plug

1шт.

26

152978A1

O-RING,164.3mm ID x 5.7mm Width

- air breather cover

1шт.

27

152936A1

CAP

- rubber, breather

1шт.

28

152927A1

VALVE

BREATHER - hydraulic reservoir

1шт.

29

151035A1

PLUG

- pipe, at elbow

1шт.

30

152723A1

PRESSURE SWITCH

SWITCH - pressure, mounted on upper left-hand front of tank, Serial Range: EAC0600001-EAC0600001

1шт.

30

152723A1

PRESSURE SWITCH

SWITCH - pressure, mounted on upper left-hand front of tank, Serial Range: EAC0600002-EAC0600002

1шт.

31

152723A1

PRESSURE SWITCH

SWITCH - pressure, mounted on upper left-hand rear of tank, Start Serial: EAC0600003

1шт.

Выбрано товаров: 35
