Запчасти Case 9060 (6-20) - 151531A1 BRAKE VALVE (06) - POWER TRAIN

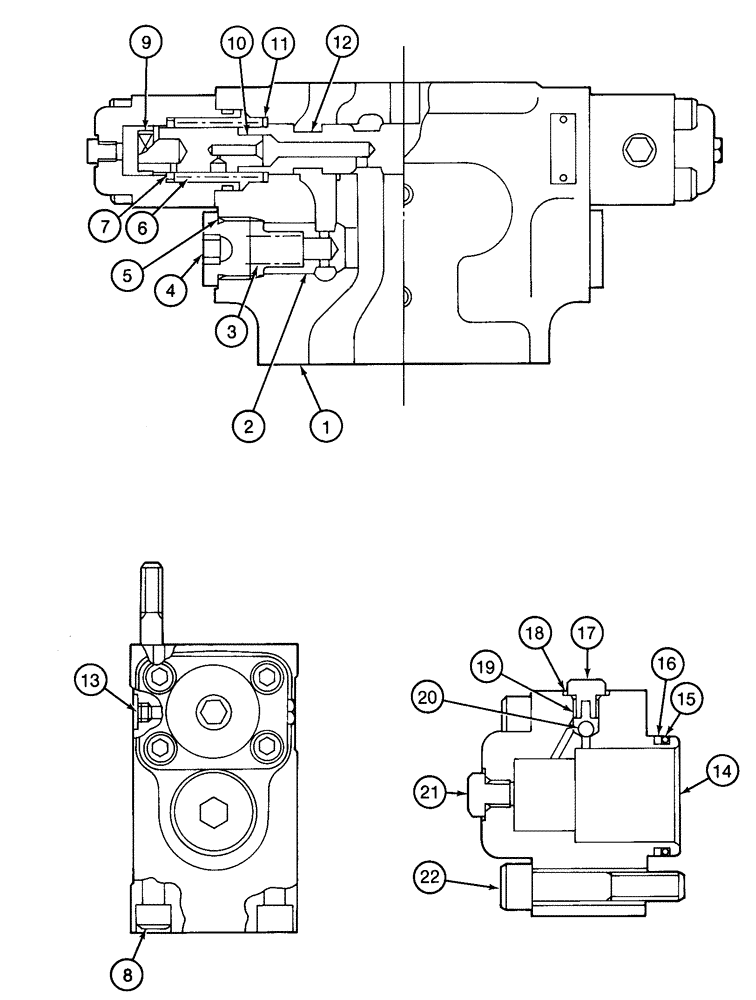

Схема запчастей Case 9060 - (6-20) - 151531A1 BRAKE VALVE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

151531A1

VALVE, BRAKE

VALVE - brake, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

155963A1

VALVE

- check

2шт.

3

156115A1

SPRING

- valve return

2шт.

4

155508A1

PLUG

- port

2шт.

5

154523A1

O-RING

- plug

2шт.

6

156114A1

SPRING

- spool return

2шт.

7

156116A1

SPRING SEAT

SEAT - spring

2шт.

8

151537A1

BOLT (MACHINE),Hex Skt

BOLT - hex socket, special

8шт.

9

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

10

154487A1

O-RING

- plug

2шт.

11

156109A1

SPRING SEAT

SEAT - spring

2шт.

12

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

13

151022A1

PLUG

- hex socket, special

1шт.

155844A1

COVER ASSY

COVER - spool end, Includes: Ref. 14 - 22

2шт.

14

NSS

NOT SOLD SEPARAT

COVER - spool end

1шт.

15

154569A1

O-RING

-, Serial Range: cover-housing

1шт.

16

154032A1

BACK-UP RING

RING - backup

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - port, ball retaining

1шт.

18

154455A1

O-RING

- plug

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - ball return

1шт.

20

NSS

NOT SOLD SEPARAT

BALL - steel

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

22

861-12060

HEX SOC SCREW,M12 x 60mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 60 mm, class 12.9

8шт.

Выбрано товаров: 24
