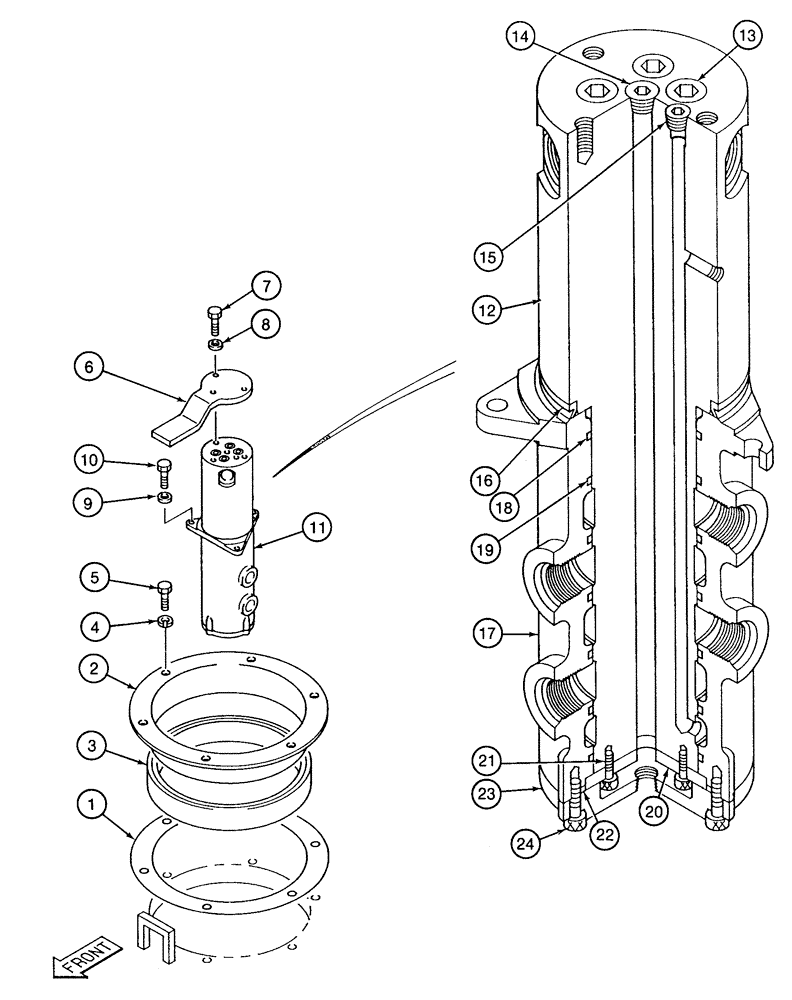

Запчасти Case 9060 (6-18) - HYDRAULIC SWIVEL (06) - POWER TRAIN

1

152596A1

RUBBER SEAL

GASKET - rubber

1шт.

2

152635A1

RETAINER

- wiper ring

1шт.

3

151009A1

SEALING RING

RING - wiper

1шт.

4

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

6шт.

5

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

6шт.

6

152092A1

BAR

- anti-rotation

1шт.

7

626-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

3шт.

8

150991A1

WASHER

- flat, special, 16 mm

3шт.

9

150988A1

WASHER

- flat, special, 12 mm

3шт.

10

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

3шт.

11

152096A1

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, Includes: Ref. 12 - 15

1шт.

12

152088A1

HOUSING

SHAFT - swivel

1шт.

13

150829A1

PLUG

- port, top of swivel, large

3шт.

14

150825A1

PLUG

- port, top of swivel, medium

1шт.

15

150824A1

PLUG

- port, top of swivel, small

1шт.

16

151542A1

SEALING RING

RING - swivel shaft

1шт.

17

151535A1

ROTOR

- hydraulic swivel

1шт.

18

152623A1

O-RING

- rotor to shaft seal

1шт.

19

151545A1

PACKING RING

RING - sealing, Serial Range: rotor-shaft

6шт.

20

152097A1

PLATE, THRUST

PLATE - thrust

1шт.

21

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 20 mm, class 12.9

4шт.

22

154761A1

O-RING,119.4mm ID x 3.1mm Width

SEAL - swivel base, was 150911A1

1шт.

23

151540A1

COVER

BASE - swivel

1шт.

24

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.
