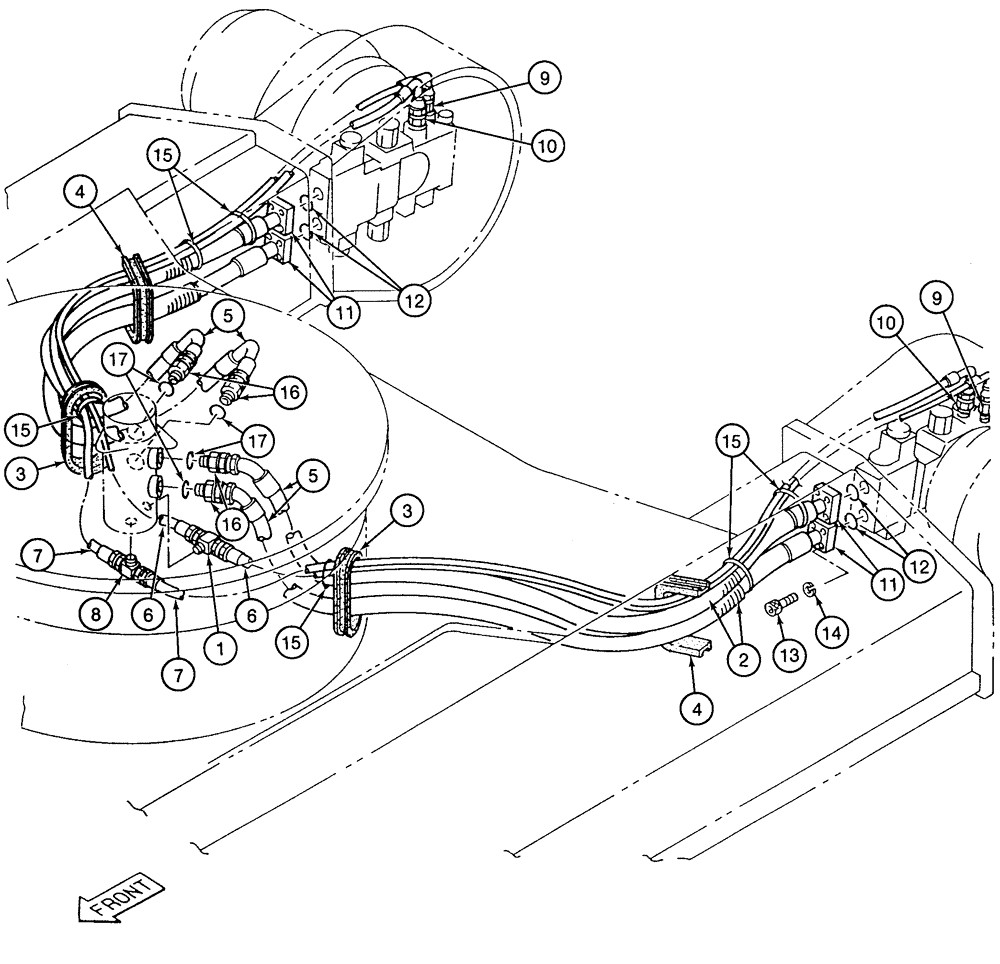

Запчасти Case 9060 (6-16) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS (06) - POWER TRAIN

1

150637A1

TEE

- hydraulic, at lower rear side port of swivel

1шт.

2

152056A1

GUARD

- hose

4шт.

3

151698A1

CUSHION ASSY.

GROMMET - rubber

2шт.

4

150876A1

RUBBER BLOCK

GROMMET - rubber

2шт.

5

151690A1

HOSE ASSY.

HOSE - 94 inch (2390 mm) long, swivel to track drive motors

4шт.

6

152023A1

HOSE ASSY.

HOSE - 112-1/4 inch (2850 mm) long, swivel to track drive motors

2шт.

7

152020A1

HOSE ASSY.

HOSE - 110-1/4 inch (2800 mm) long, at bottom of swivel

2шт.

8

152195A1

TEE

- special, at bottom of swivel

1шт.

9

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, at track drive motor

2шт.

10

150812A1

ADAPTER

- straight, at track drive motor

2шт.

11

150561A1

FLANGE

- split

8шт.

12

150678A1

O-RING

- split flange to track drive motor

4шт.

13

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

SCREW - hex socket 12 - 1.75 x 40 mm, class 12.9

16шт.

14

112312A1

LOCK WASHER

- lock, 12 mm

16шт.

15

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

16

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, Includes: Ref. 17

4шт.

17

154523A1

O-RING

- adapter

1шт.
