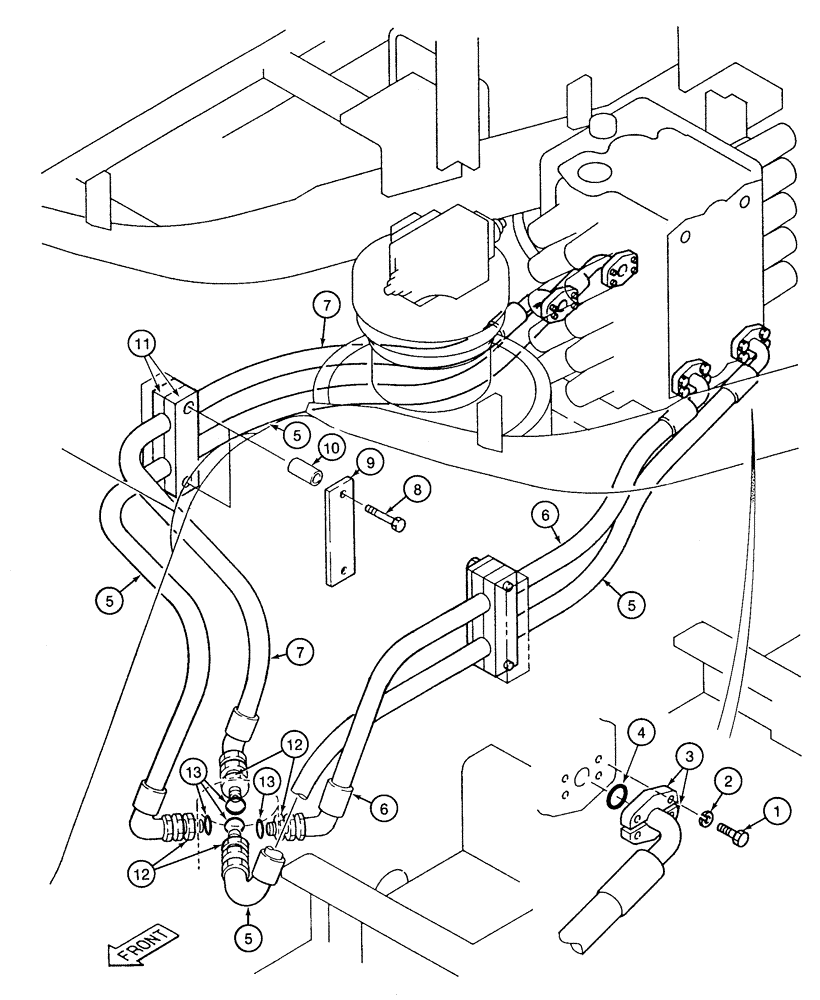

Запчасти Case 9060 (6-14) - TRACK DRIVE HYDRAULIC CIRCUIT, CONTROL VALVE TO HYDRAULIC SWIVEL (06) - POWER TRAIN

1

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

2

892-11010

LOCK WASHER,M10

16шт.

3

153459A1

FLANGE

- split

8шт.

4

150678A1

O-RING

- pressure line hose at valve

4шт.

5

152932A1

HOSE ASSY.

HOSE - 65 inch (1650 mm) long, rear valve ports to front swivel ports

2шт.

6

152933A1

HOSE ASSY.

HOSE - 52-3/8 inch (1330 mm) long, front valve port to LH rear swivel port

1шт.

7

152935A1

HOSE ASSY.

HOSE - 52-3/8 inch (1330 mm) long, front valve port to RH rear swivel port

1шт.

8

828-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9

4шт.

9

152888A1

PLATE, SPACER

PLATE - hose clamp retaining

2шт.

10

152895A1

SPACER

- clamp

4шт.

11

152987A1

COLLAR

CLAMP - hose

4шт.

12

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, hose to swivel, Includes: Ref. 13

4шт.

13

154523A1

O-RING

- adapter, at swivel

1шт.
