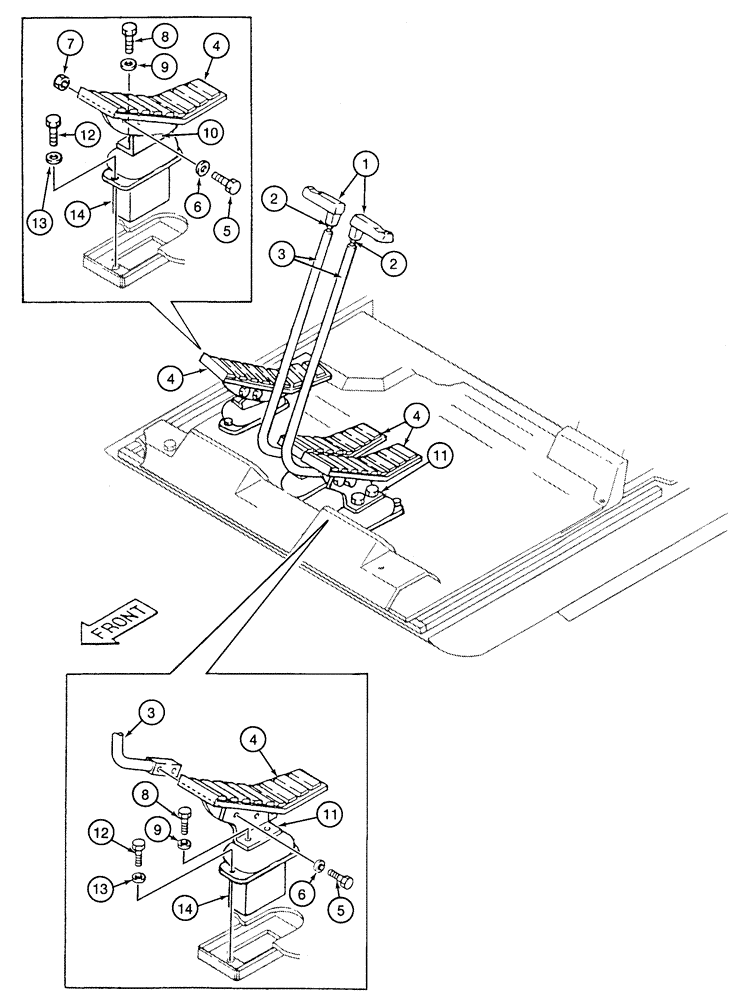

Запчасти Case 9060 (6-12) - TRACK DRIVE CONTROLS (06) - POWER TRAIN

1

150347A1

KNOB

HANDLE - control, track drive

2шт.

2

150373A1

NUT

- hex, 12 mm - 1.25, class 12.9, jam

2шт.

3

151634A1

LEVER

- hand control, track drive

2шт.

4

150524A1

PEDAL

- foot control

3шт.

5

150555A1

BOLT,High Strength, Hex, M10 x 30mm

BOLT - hex, 10 - 1.5 x 30 mm, class 10.9, Serial Range: pedal-lever

6шт.

6

150604A1

WASHER

- special

6шт.

7

150363A1

NUT

- hex, 10 mm - 1.5, class 12.9

2шт.

8

150548A1

BOLT,High Strength, Hex, M10 x 20mm

BOLT - hex, 10 - 1.5 x 20 mm, class 10.9, Serial Range: pedal-bracket

6шт.

9

150604A1

WASHER

- special

6шт.

10

151410A1

BRACKET

- pedal mounting, right-hand

2шт.

11

151404A1

SUPPORT

BRACKET - pedal mounting, left-hand

1шт.

12

150552A1

BOLT,High Strength, Hex, M10 x 25mm

BOLT - hex, 10 - 1.5 x 25 mm, class 10.9

6шт.

13

150604A1

WASHER

- special

6шт.

14

153090A1

VALVE

ASSEMBLY - remote control, foot pedal control, parts list figure 8-056

3шт.
