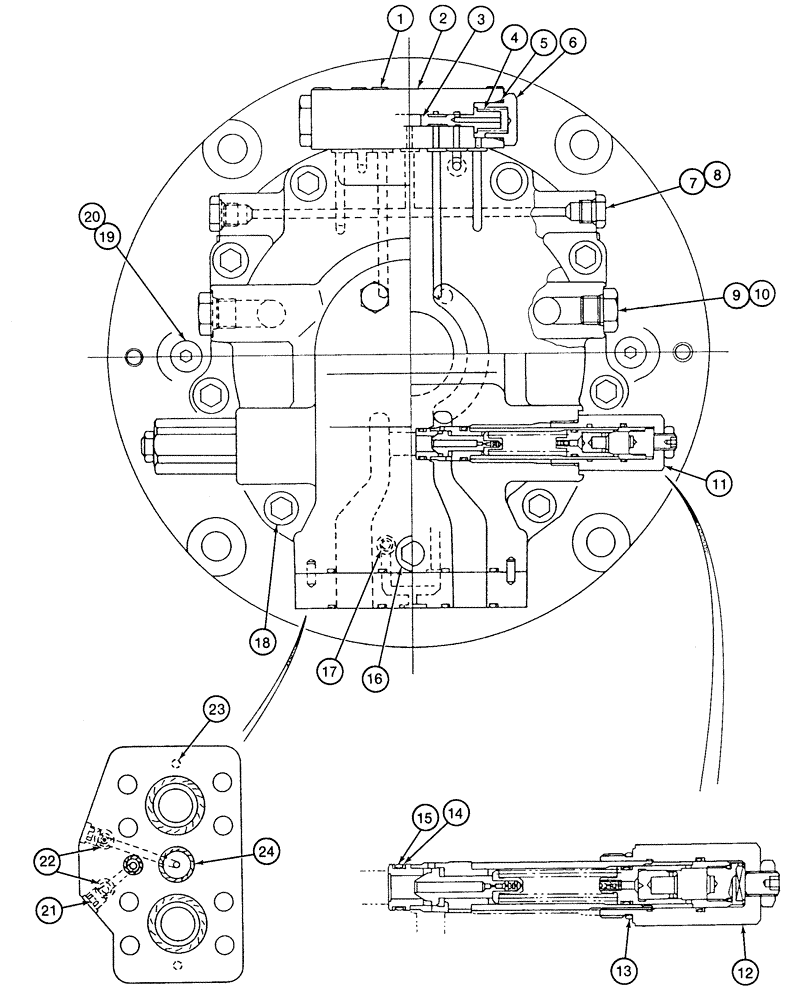

Запчасти Case 9060 (6-10) - 151837A1 TRACK DRIVE MOTOR, COVER AND VALVES (06) - POWER TRAIN

151837A1

MOTOR

- track drive without brake valve, Includes: Ref. 1 - 24 & Ref. 1 - 39 on figure 6-08

2шт.

155785A1

VALVE

- control, 2 speed, Includes: Ref. 1 - 6

1шт.

1

863-8045

HEX SOC SCREW,M8 x 45mm, Cl 12.9

- hex socket, 8 - 1.25 x 45 mm, class 12.9

6шт.

2

NSS

NOT SOLD SEPARAT

COVER - housing, front

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - range gear

2шт.

4

NSS

NOT SOLD SEPARAT

SPRING - valve

2шт.

5

154503A1

O-RING

- plug

2шт.

6

NSS

NOT SOLD SEPARAT

PLUG - valve port

2шт.

7

153105A1

PLUG

- port

2шт.

8

154475A1

O-RING

- plug

2шт.

9

155481A1

PLUG

- port

2шт.

10

154487A1

O-RING

- plug

2шт.

11

155784A1

VALVE, PRESSURE RELI

VALVE - relief, Includes: Ref. 12 - 15

2шт.

12

NSS

NOT SOLD SEPARAT

VALVE - relief, less external seals

1шт.

13

153879A1

O-RING

- valve to cover, outer

1шт.

14

153970A1

BACK-UP RING

RING - backup, valve seal

1шт.

15

154487A1

O-RING

- relief valve to cover, inner

1шт.

16

863-16120

HEX SOC SCREW,M16 x 120mm, Cl 12.9

BOLT - socket head, 16 - 2.0 x 120 mm class 12.9

1шт.

17

150399A1

O-RING

- oil passage

1шт.

18

863-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

SCREW - hex socket, 16 - 2.0 x 50 mm, class 12.9

8шт.

19

155480A1

PLUG

- valve

2шт.

20

155475A1

PLUG

- port

2шт.

21

151026A1

PLUG

- port

2шт.

22

150399A1

O-RING

- adapter plate

1шт.

23

738-1516

LOCK PIN,M5 x 16, Slotted

PIN, LOCK, , Roll M5 x 16, Slotted

2шт.

24

151362A1

O-RING

- adapter plate

1шт.
