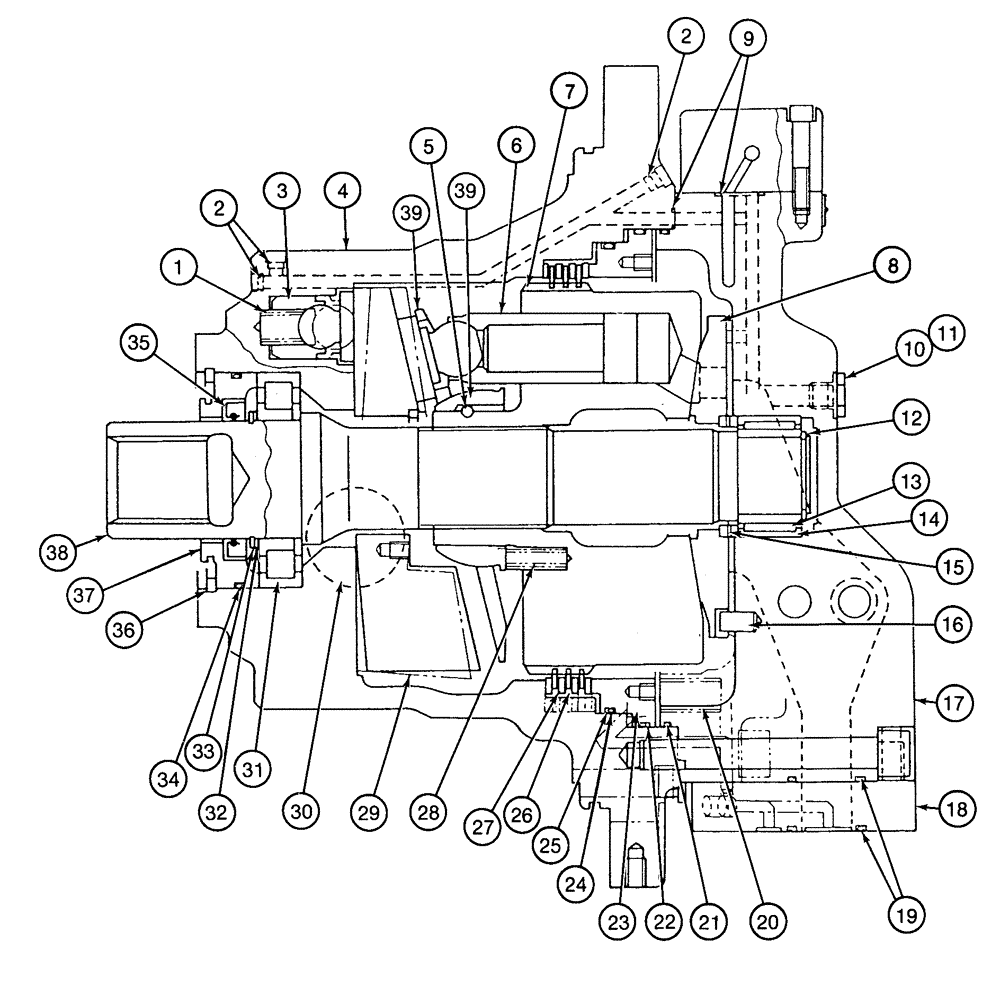

Запчасти Case 9060 (6-08) - 151837A1 TRACK DRIVE MOTOR, SHAFT, CYLINDER BLOCK AND PISTONS (06) - POWER TRAIN

151837A1

MOTOR

- track drive without brake valve, Includes: Ref. 1 - 39 & Ref. 1 - 24 on Figure 6-10

2шт.

1

156084A1

SPRING

- piston return

4шт.

2

155479A1

PLUG

- port

6шт.

155781A1

CASE

HOUSING - motor, Includes: Ref. 3 & 4

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - housing

4шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - track drive motor

1шт.

5

155937A1

BALL

- steel

1шт.

157472A1

CYLINDER

BLOCK - cylinder, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

7

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

9

150399A1

O-RING

- oil passage

13шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- port plug

2шт.

11

153913A1

PLUG

- port

2шт.

12

155624A1

RING, SNAP

RING - retaining

1шт.

13

156136A1

RING RACE

RACE - bearing, inner

1шт.

14

156137A1

BEARING, NEEDLE,Needle, 47.63mm ID x 61.91mm OD x 31.75mm W

BEARING - needle

1шт.

15

155622A1

COLLAR

SPACER - bearing

1шт.

16

155623A1

COTTER PIN

PIN - dowel

1шт.

17

156311A1

REAR COVER

COVER - end

1шт.

18

151534A1

FLANGE ASSY

PLATE - adapter, hose mounting

1шт.

19

150152A1

O-RING

- adapter plate

4шт.

20

156065A1

SPRING

- compression

10шт.

21

155220A1

O-RING

- end, Serial Range: cover-housing

2шт.

22

155166A1

BACK-UP RING

RING - back-up

1шт.

23

155946A1

PISTON

- brake

1шт.

24

155219A1

O-RING

-, Serial Range: piston-housing

1шт.

25

155165A1

BACK-UP RING

RING - back-up

1шт.

26

156312A1

PLATE

- disc

3шт.

27

156313A1

BRAKE DISC

PLATE - friction

4шт.

28

156083A1

SPRING

- piston return

9шт.

29

156314A1

PLATE

- swash

1шт.

30

155947A1

BALL

- steel

2шт.

31

156138A1

BEARING, ROLLER,60 mm ID x 110 mm OD x 22 mm

BEARING - roller

1шт.

32

156193A1

WASHER

SPACER - bearing

1шт.

33

155625A1

RING, SNAP

RING - retaining, bearing

1шт.

34

154733A1

O-RING

- oil seal retaining plate

1шт.

35

155108A1

OIL SEAL

SEAL - oil, shaft

1шт.

36

155626A1

RING, SNAP

RING - retaining, plate

1шт.

37

156315A1

OIL SEAL

RETAINER - seal, shaft oil seal

1шт.

38

155361A1

SHAFT

- motor

1шт.

39

155782A1

RETAINER

- plate, with holder

1шт.
