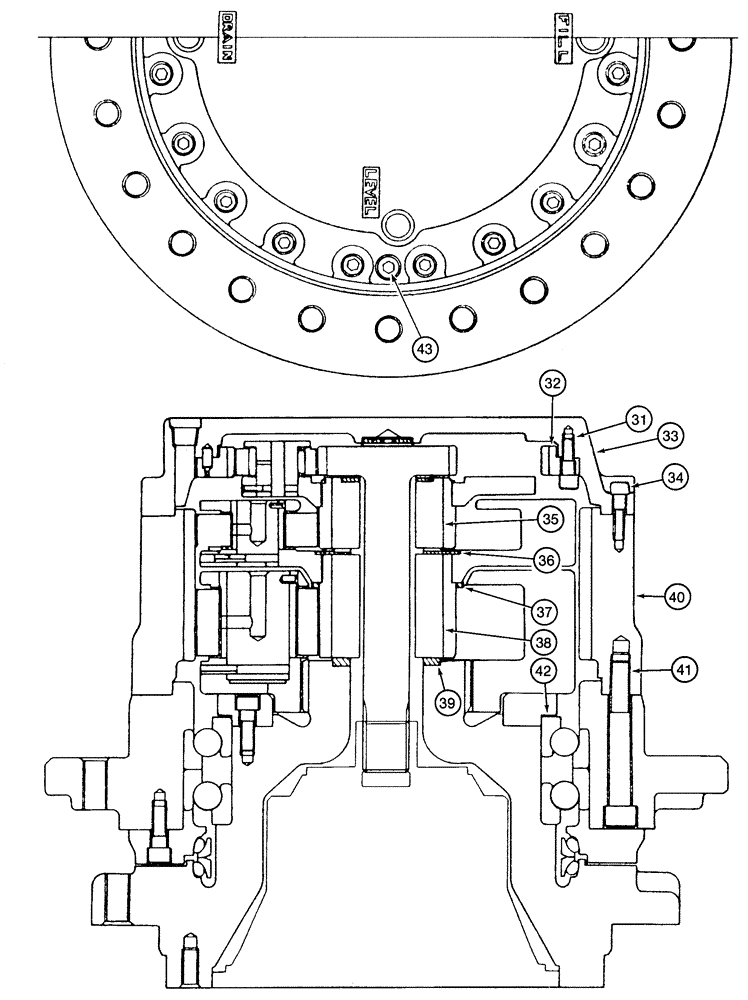

Запчасти Case 9060 (6-06) - 151260A1 FINAL DRIVE TRANSMISSION, CONT. (06) - POWER TRAIN

151260A1

RESTRICTOR

TRANSMISSION - final drive without track drive motor, Includes: Ref. 31 - 43 & Ref. 1 - 30 on Figure 6-04

1шт.

31

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9

8шт.

32

151555A1

GEAR, RING

GEAR - ring

1шт.

33

151900A1

COVER

- side

1шт.

34

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

SCREW - hex socket 12 - 1.75 x 40 mm, class 12.9

20шт.

35

151577A1

GEAR

- sun

1шт.

36

151619A1

PLATE

- thrust

1шт.

37

151621A1

PLATE

- thrust

1шт.

38

151580A1

GEAR

- sun

1шт.

39

151625A1

PLATE

- thrust

1шт.

40

151541A1

GEAR, RING

GEAR - ring

1шт.

41

861-20140

HEX SOC SCREW,M20 x 140mm, Cl 12.9

BOLT - hex socket, 20 - 2.5 x 140 mm, class 12.9

20шт.

42

151636A1

SHIM

PLATE - shim, 0.04 inch thick

1шт.

42

153891A1

SHIM

PLATE - shim, 0.05 inch thick

1шт.

42

153892A1

SHIM

PLATE - shim, 0.05 inch thick

1шт.

42

153893A1

SHIM

PLATE - shim, 0.06 inch thick

1шт.

42

153894A1

SHIM

PLATE - shim, 0.06 inch thick

1шт.

42

153895A1

SHIM

PLATE - shim, 0.06 inch thick

1шт.

42

153896A1

SHIM

PLATE - shim, 0.07 inch thick

1шт.

42

153897A1

SHIM

PLATE - shim, 0.07 inch thick

1шт.

42

153898A1

SHIM

PLATE - shim, 0.08 inch thick

1шт.

42

153899A1

SHIM

PLATE - shim, 0.08 inch thick

1шт.

42

153900A1

SHIM

PLATE - shim, 0.08 inch thick

1шт.

42

153901A1

SHIM

PLATE - shim, 0.09 inch thick

1шт.

42

153902A1

SHIM

PLATE - shim, 0.09 inch thick

1шт.

42

153903A1

SHIM

PLATE - shim, 0.10 inch thick

1шт.

42

153904A1

SHIM

PLATE - shim, 0.10 inch thick

1шт.

42

153905A1

SHIM

PLATE - shim, 0.10 inch thick

1шт.

42

153906A1

SHIM

PLATE - shim, 0.11 inch thick

1шт.

42

153907A1

SHIM

PLATE - shim, 0.11 inch thick

1шт.

42

153908A1

SHIM

PLATE - shim, 0.12 inch thick

1шт.

43

861-12020

HEX SOC SCREW,M12 x 20mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 20 mm, class 12.9

2шт.
