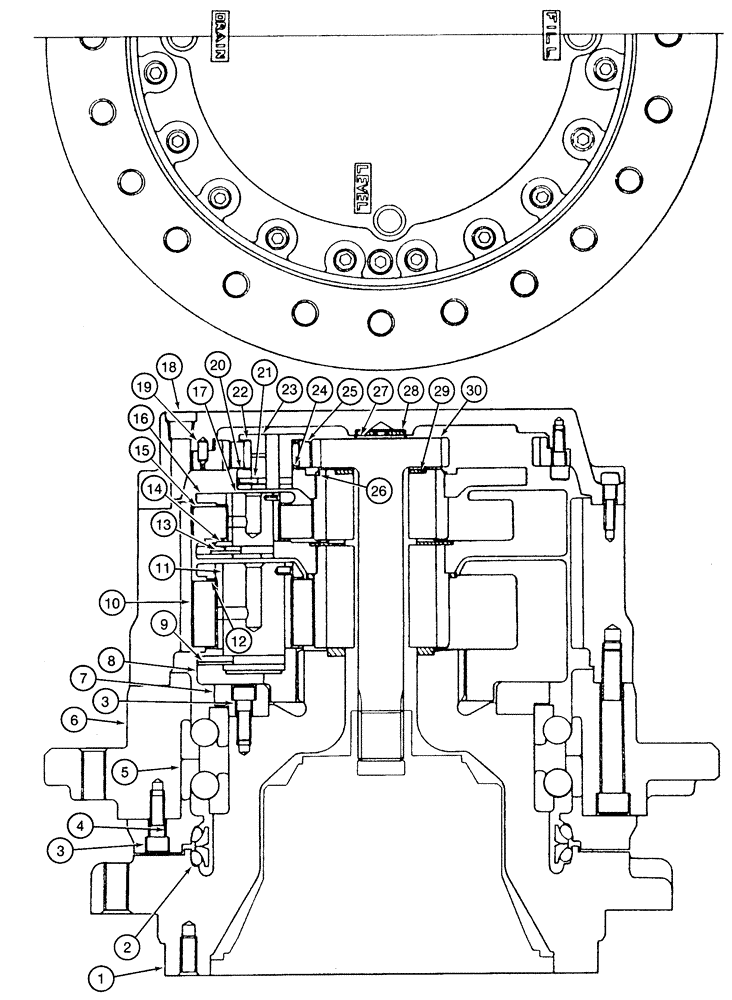

Запчасти Case 9060 (6-04) - 151260A1 FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

151260A1

RESTRICTOR

TRANSMISSION - final drive without track drive motor, Includes: Ref. 1 - 30 & Ref. 31 - 43 on Figure 6-06

1шт.

1

151538A1

CASE

FLANGE - adapter, track drive motor

1шт.

2

151687A1

SEAL

- face, includes two rings and two seals

1шт.

3

150880A1

BOLT,Hex Skt

- hex socket, special

40шт.

4

151547A1

RETAINER

- oil seal

1шт.

5

151682A1

BEARING, BALL,300 mm ID x 395 mm OD x 52 mm

BEARING - ball

1шт.

6

151543A1

HOUSING, BEARING

HOUSING - bearing

1шт.

7

151608A1

RETAINER

- bearing

1шт.

8

151569A1

CARRIER

- planetary

1шт.

9

738-1836

LOCK PIN,M8 x 36, Slotted

PIN - roll, 8 x 36 mm

5шт.

10

151591A1

GEAR

- planetary

5шт.

11

151598A1

SPECIAL PIN

SHAFT - planetary gear

5шт.

12

151605A1

PLATE

SPACER - planetary gear

10шт.

13

738-1828

LOCK PIN,M8 x 28, Slotted

PIN - roll, 8 x 28 mm

5шт.

14

151602A1

PLATE

SPACER - planetary gear

10шт.

15

151589A1

GEAR

- planetary

5шт.

16

151564A1

CARRIER

- planetary

1шт.

17

151597A1

SPECIAL PIN

SHAFT - planetary gear

5шт.

18

150829A1

PLUG

- port

3шт.

19

151627A1

PIN

- dowel

4шт.

20

151558A1

CARRIER

- planetary

1шт.

21

738-1620

LOCK PIN,6mm OD x 20mm L, Slotted

PIN - roll, 6 x 20 mm

3шт.

22

151684A1

BEARING, NEEDLE

BEARING - needle

3шт.

23

151594A1

SPECIAL PIN

SHAFT - planetary gear

3шт.

24

151600A1

PLATE

SPACER - planetary gear

12шт.

25

151583A1

GEAR

- planetary

3шт.

26

151631A1

RING, LOCKING

RING - lock

1шт.

27

151611A1

PLATE

- thrust

1шт.

28

151632A1

SHIM

PLATE - shim

1шт.

28

153890A1

SHIM

PLATE - shim

1шт.

29

151615A1

PLATE

- thrust

1шт.

30

151574A1

GEAR

- sun

1шт.
