Запчасти Case 9060 (6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR (06) - POWER TRAIN

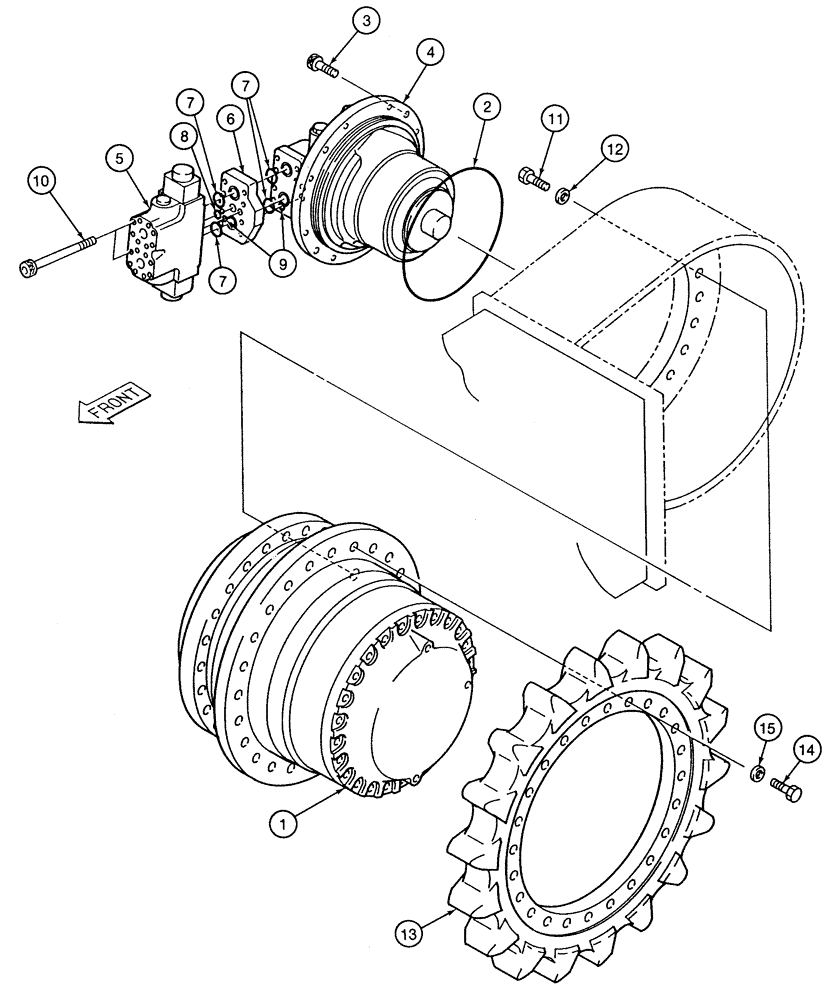

Схема запчастей Case 9060 - (6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

151827A1

ASSEMBLY

TRANSMISSION - final drive with track drive motor, part list figures 6-2 - 6-6, Includes: Ref. 1 - 10

2шт.

1

151260A1

RESTRICTOR

TRANSMISSION - final drive without track drive motor, parts list figures 6-4 -6-6

1шт.

2

151524A1

O-RING

- piston, Serial Range: motor-frame

1шт.

3

150807A1

BOLT,Hex Skt, M18 x 2.5 x 50mm

BOLT - hex socket, 18 - 2.5 x 50 mm

8шт.

151832A1

MOTOR

- track drive with brake valve, parts list figures 6-8 - 6-10, Includes: Ref. 4 - 10

1шт.

4

151837A1

MOTOR

- track drive without brake valve, parts list figures 6-2, 6-8, and 6-10

1шт.

5

151531A1

VALVE, BRAKE

VALVE - brake, parts list figure 6-20

1шт.

6

151534A1

FLANGE ASSY

PLATE - adapter, Serial Range: valve-motor

1шт.

7

154543A1

O-RING

- Adapter plate, large, was 150152A1

4шт.

8

151362A1

O-RING

- adapter plate, small

1шт.

9

150399A1

O-RING

- adapter plate, medium

3шт.

10

151537A1

BOLT (MACHINE),Hex Skt

BOLT - hex socket, special

8шт.

11

828-24100

BOLT,Hex, M24 x 3 x 100mm, Cl 10.9

- hex, 24 - 3.0 x 100 mm, class 10.9

48шт.

12

151003A1

WASHER

- flat, special

48шт.

13

151434A1

SPROCKET ASSY.

SPROCKET - track drive

2шт.

14

626-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

- hex, full threads, 24 - 3.0 x 70 mm, class 10.9

48шт.

15

151003A1

WASHER

- flat, special

48шт.

Выбрано товаров: 17
