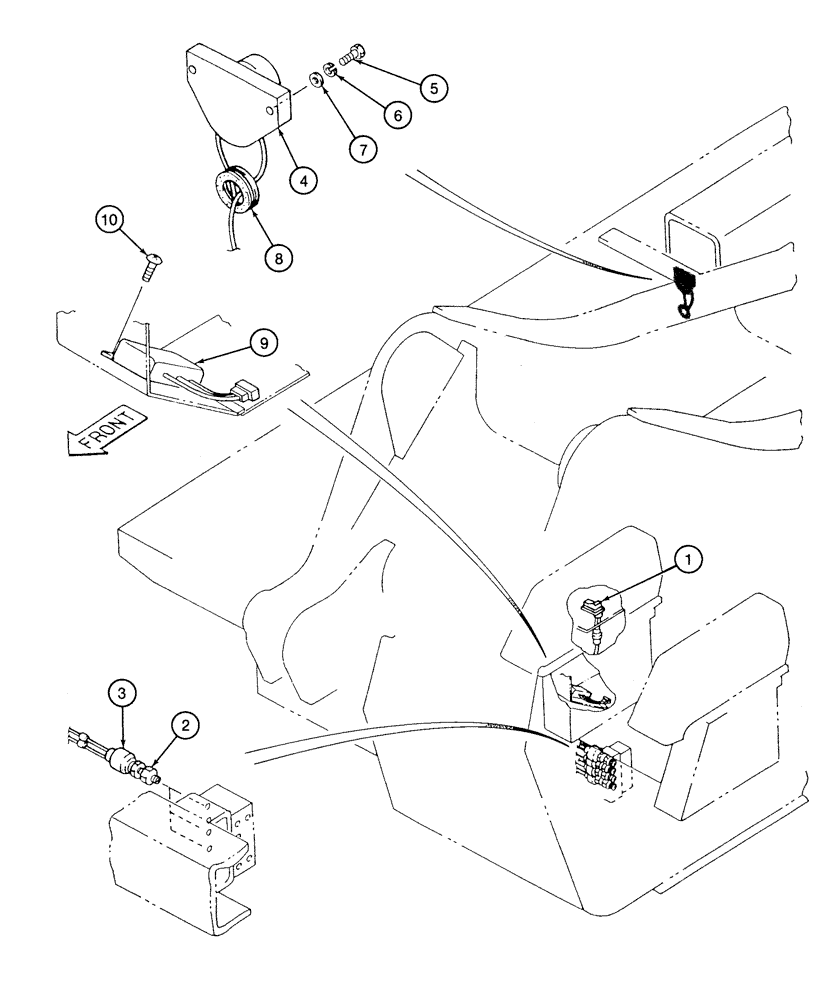

Запчасти Case 9060 (4-22) - TRAVEL ALARM (04) - ELECTRICAL SYSTEMS

1

152187A1

SWITCH

- rocker

1шт.

2

151055A1

BUSHING

- reducer, at pressure switch

4шт.

3

151834A1

SWITCH

- pressure

4шт.

4

162218A1

ALARM

- travel, was 151829A1

1шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

8

151004A1

GROMMET

- rubber

1шт.

9

152492A1

RELAY

- electrical

1шт.

10

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

- pan head, relay mounting

1шт.
