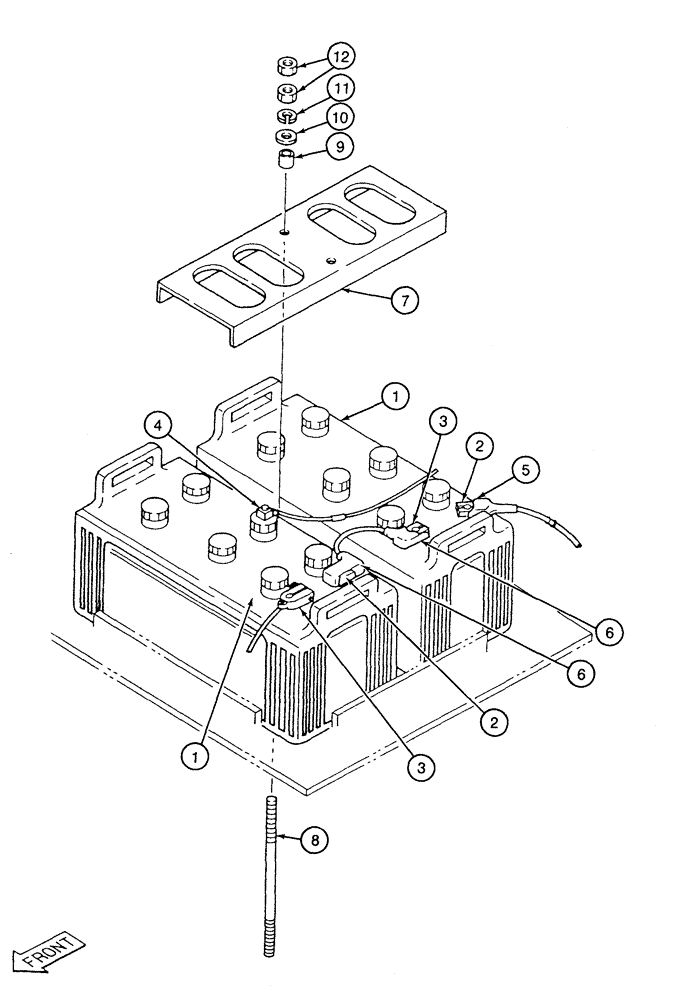

Запчасти Case 9060 (4-12) - BATTERIES AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

170052A1

DRY BATTERY

- 12 volt, 780 amps

2шт.

2

158403A1

TERMINAL CONNECTOR

CLAMP - terminal, battery

2шт.

3

150455A1

TERMINAL CONNECTOR

CLAMP - terminal, battery

2шт.

4

170051A1

SENSOR

- low electrolyte

1шт.

5

150360A1

CAP

COVER - terminal

2шт.

6

150364A1

CAP

COVER - terminal

2шт.

7

150810A1

SPECIAL RING

BRACKET - battery retainer

1шт.

8

150789A1

STUD,M10 x 280mm

STUD - special, 10 - 1.5 x 280 mm, battery holder

2шт.

9

150816A1

SPACER

- battery stud

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

11

892-11010

LOCK WASHER,M10

2шт.

12

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10

4шт.
