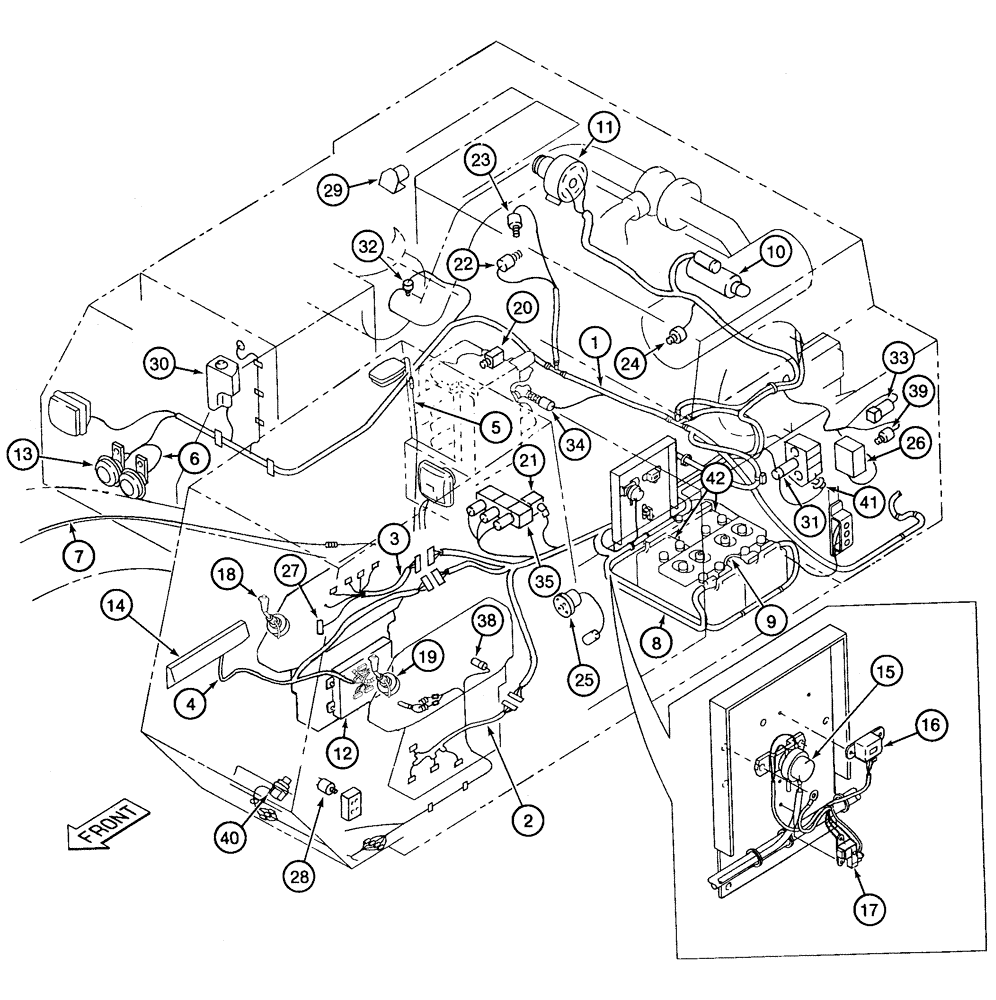

Запчасти Case 9060 (4-08) - MAIN ELECTRICAL WIRING (04) - ELECTRICAL SYSTEMS

1

291943A1

HARNESS

- main electrical (replaces 151056A1)

1шт.

2

158189A1

HARNESS

- left-hand console

1шт.

3

151054A1

HARNESS

- right-hand console

1шт.

4

150930A1

HARNESS

- instrument cluster

1шт.

5

150926A1

HARNESS

- dome lamp

1шт.

6

151144A1

HARNESS

- wire, horn

1шт.

7

150439A1

HARNESS

- wiring, work lamp on boom

1шт.

8

150683A1

NEG BATTERY CABLE

CABLE - battery, to main relay

1шт.

9

150738A1

NEG BATTERY CABLE

CABLE -, Serial Range: battery,-battery

1шт.

10

136091A1

STARTING MOTOR

STARTER - 24 volt, parts list figure 4-04

1шт.

11

135104A1

ALTERNATOR

- 24 volt, 40 ampere, parts list figure 4-02

1шт.

11

135104A1

ALTERNATOR

- 24 volt, 40 ampere, parts list figure 4-02

1шт.

12

158832A1

CONTROL

LER - electrical system, see figure 4-16

1шт.

13

150836A1

HORN

- two-tone

1шт.

14

151115A1

CONTROL

CLUSTER - instrument, see figure 4-14

1шт.

15

150663A1

RELAY

- battery, main disconnect

1шт.

16

MIT135153A1

RELAY

- alternator safety, no restart

1шт.

17

135154A1

RELAY

- intake air heater, engine preheat

1шт.

18

151616A1

KNOB

- control, right-hand, with one-touch idle switch, see figure 8-024

1шт.

19

151613A1

KNOB

- control, left-hand, with horn switch, see figure 8-024

1шт.

20

153470A1

VALVE

- solenoid, free swing, parts list figure 8-024

1шт.

21

150425A1

VALVE

- solenoid, pilot controls, parts list figure 8-024

1шт.

22

134836A1

UNIT

GAUGE - water temperature

1шт.

23

134837A1

SWITCH

- water temperature, 105 degrees Centigrade

1шт.

24

H411892

SWITCH

SENDER - oil pressure

1шт.

25

152111A1

SENSOR

- fuel level

1шт.

26

152920A1

MOTOR

- throttle

1шт.

152920A1R

REMAN-ELECTRIC MOTOR

9060 (4/93-)

1шт.

152920A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

27

152677A1

SWITCH

- rocker, free swing

1шт.

28

151834A1

SWITCH

- pressure, travel alarm

1шт.

29

162218A1

ALARM

- travel, 24 volt

1шт.

30

150610A1

RESERVOIR

- windshield washer fluid, with pump, 24 volt, see figure 4-28

1шт.

31

REF

INSTRUCTION

VALVE - pressure reducing, pump proportional, see figure 8-018 for correct valve and components

1шт.

32

150042A1

SENSOR

SWITCH - air restriction indicator

1шт.

33

150844A1

VALVE

- solenoid, boom down delay, parts list figure 8-48

1шт.

34

151834A1

SWITCH

- pressure, boom down delay

1шт.

35

151017A1

VALVE

- solenoid, swing brake, cushion or two speed travel, parts list figure 8-46

3шт.

38

150857A1

SWITCH

- limit, pilot control

1шт.

39

150912A1

SWITCH

- pressure, swing brake release

1шт.

40

158884A1

IGNITION SWITCH

SWITCH - push button, two speed travel

1шт.

41

150974A1

SENSOR

SENDER - temperature, hydraulic fluid

1шт.

42

170052A1

DRY BATTERY

- 12 volt, 780 amps, see figure 4-12

2шт.
