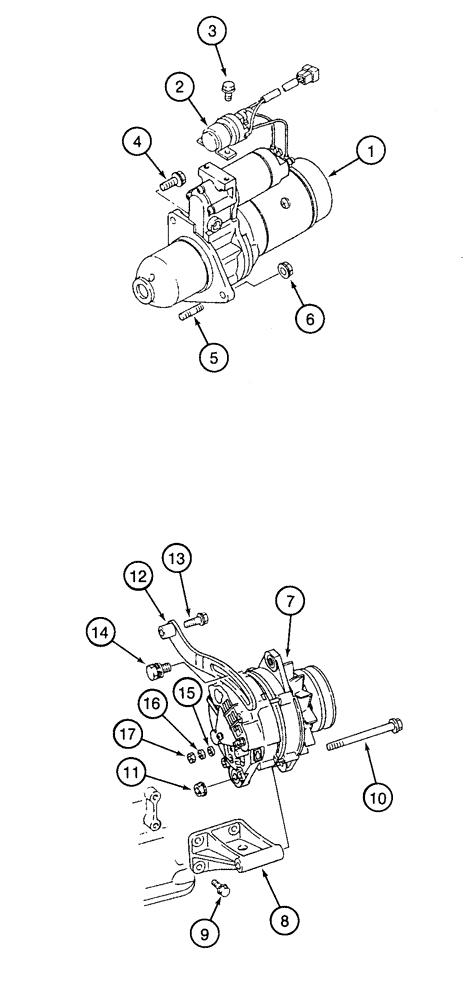

Запчасти Case 9060 (4-06) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

136091A1

STARTING MOTOR

STARTER - 24 volt, parts list figure 4-05

1шт.

2

135062A1

RELAY

- safety control

1шт.

3

135089A1

BOLT,Hex Flg, M6 x 16mm

- hex flange, 6 x 16 mm

2шт.

4

240363A1

BOLT

- hex flange, 12 x 40 mm

2шт.

5

135081A1

STUD

- special, 12 x 35 mm

1шт.

6

135085A1

FLANGE NUT

- hex flange, 12 mm

1шт.

7

135104A1

ALTERNATOR

- 24 volt, 40 ampere, parts list figure 4-03

1шт.

8

135114A1

BRACKET

- alternator mounting

1шт.

9

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

4шт.

10

135145A1

BOLT,Hex Flg, M12 x 125mm

- hex flange, 12 x 125 mm

1шт.

11

135085A1

FLANGE NUT

- hex flange, 12 mm

1шт.

12

135112A1

BRACKET

BRACE - alternator adjusting

1шт.

13

135146A1

BOLT,Hex Flg, M10 x 40mm

- hex flange, 10 x 40 mm

1шт.

14

135147A1

BOLT,M12 x 30mm, w/ Captive Wshr

- with captive washer, 12 x 30 mm

1шт.

15

135136A1

WASHER

- flat, 5 mm

1шт.

16

135077A1

WASHER

- lock, 5 mm

1шт.

17

135143A1

NUT

NUT - hex, 5 mm

1шт.
