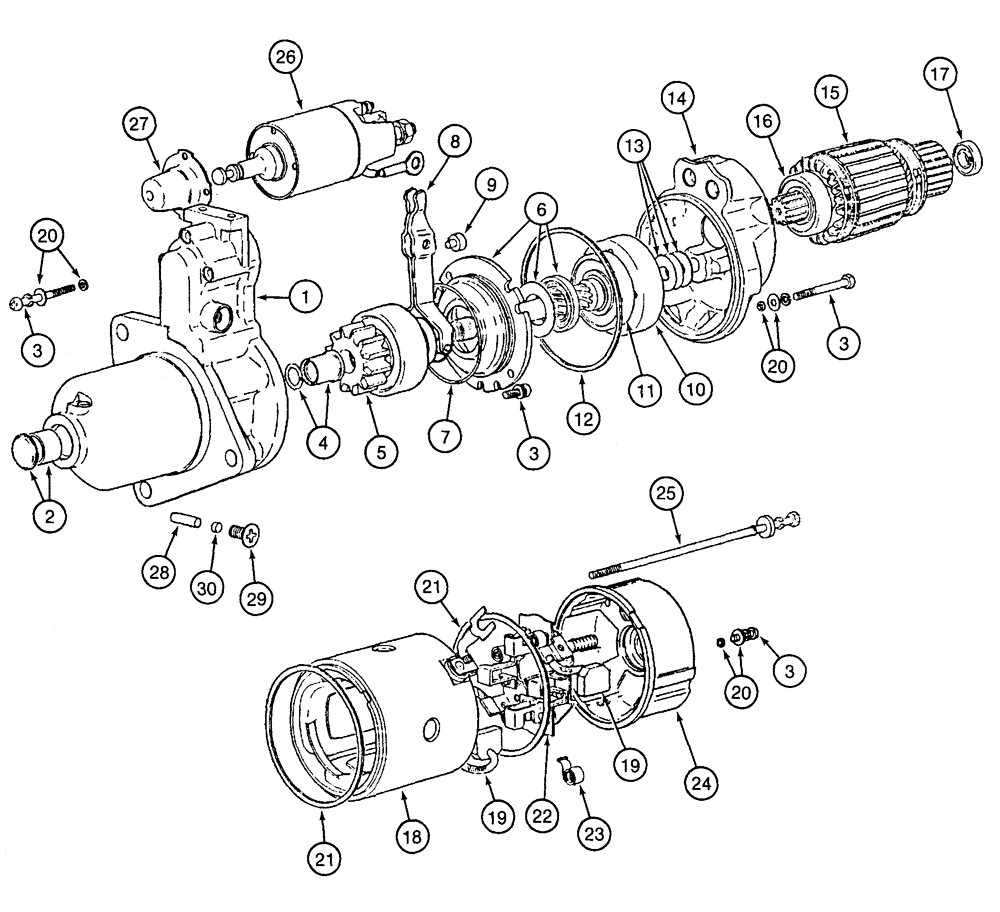

Запчасти Case 9060 (4-04) - STARTER (04) - ELECTRICAL SYSTEMS

136091A1

STARTING MOTOR

STARTER - 24 volt, Includes: Ref. 1 - 30

1шт.

1

136100A1

BRACKET

HOUSING - starter, with mounting bracket, Includes: Ref. 2

1шт.

2

136093A1

SET OF PARTS

KIT - bearing and sleeve

1шт.

3

136138A1

SCREW

KIT - screw, starter housing hardware

1шт.

4

136132A1

STOP

KIT - stopper, starter pinion

1шт.

5

136111A1

PINION

CLUTCH - starter

1шт.

6

136098A1

BRACKET

- starter gear

1шт.

7

136128A1

O-RING

- gear bracket

1шт.

8

136127A1

LEVER

- starter pinion shaft

1шт.

9

136112A1

GUIDE

- lever, starter pinion shaft

1шт.

10

136125A1

GEAR-SET

KIT - gear, Includes: Ref. 11

1шт.

11

136094A1

BEARING

- armature

1шт.

12

136118A1

GASKET

- starter housing

1шт.

13

136134A1

WASHER

KIT - shim, starter gear shaft

1шт.

14

240339A1

BRACKET

HOUSING - gear

1шт.

136092A1

SET OF PARTS

KIT - armature, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

ARMATURE - starter

1шт.

16

136095A1

BEARING, BALL

BEARING - armature, gear end

1шт.

17

240335A1

BALL BEARING

BEARING - armature, brush end

1шт.

18

136135A1

FORK

YOKE - starter, Includes: Ref. 19

1шт.

19

136102A1

BRUSH ASSY.

BRUSH - starter

4шт.

20

136131A1

GASKET

KIT - dust seal, starter housing hardware (replaces 136171A1)

1шт.

21

136115A1

GASKET

- starter housing

2шт.

22

136126A1

HOLDER

- brush, Includes: (4) of Ref. 19 & Ref. 23

1шт.

23

136130A1

SPRING

- brush

4шт.

24

136101A1

BRACKET

CAP - commutator end

1шт.

25

136097A1

BOLT

SET - bolt, commutator end cap to gear housing

1шт.

136133A1

SWITCH

SOLENOID - starter, Includes: Ref. 26 & 27

1шт.

26

NSS

NOT SOLD SEPARAT

SOLENOID - starter

1шт.

27

136113A1

COVER

- solenoid

1шт.

28

136140A1

DOWEL

PIN - starter

1шт.

29

136136A1

SCREW

- special

1шт.

30

136114A1

GASKET

- special screw

1шт.
