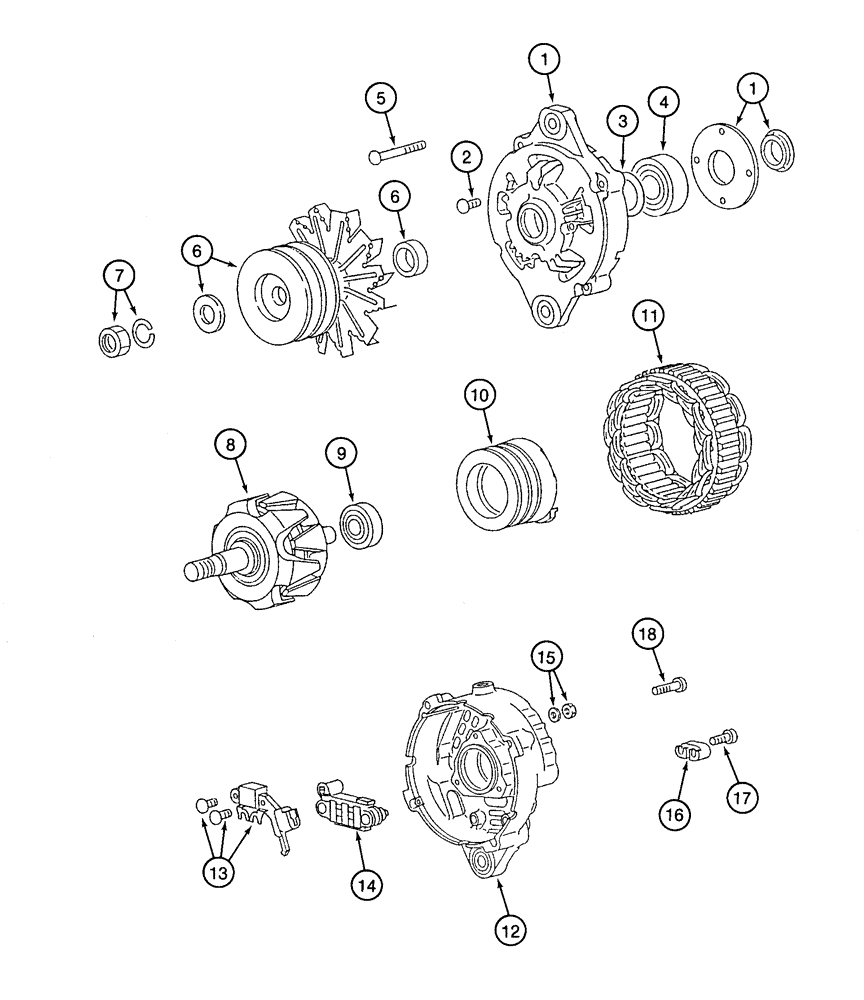

Запчасти Case 9060 (4-02) - ALTERNATOR AND REGULATOR (04) - ELECTRICAL SYSTEMS

135104A1

ALTERNATOR

- 24 volt, 40 ampere, Includes: Ref. 1 - 18

1шт.

135126A1

BRACKET

FRAME ASSEMBLY - drive end, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - drive end, includes bearing sleeve and retainer plate

1шт.

2

135138A1

SCREW

- special

1шт.

3

135130A1

OIL SEAL

SEAL - oil, rotor shaft

1шт.

4

135108A1

BEARING, BALL

BEARING - rotor

1шт.

5

135137A1

SCREW

- special

1шт.

6

135131A1

PULLEY

KIT - pulley and fan, includes flat washer and rotor shaft bushing

1шт.

7

135142A1

NUT

KIT - nut, includes lock washer

1шт.

135134A1

ROTOR ASSY.

ROTOR - alternator, Includes: Ref. 8 & 9

1шт.

8

NSS

NOT SOLD SEPARAT

ROTOR - alternator

1шт.

9

135111A1

BEARING

- rotor

1шт.

10

135128A1

COIL ASSY.

COIL - rotor

1шт.

11

240374A1

STAY

STATOR - alternator

1шт.

135127A1

BRACKET

FRAME - regulator end, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

FRAME - regulator end

1шт.

13

135133A1

REGULATOR

- alternator

1шт.

14

135132A1

RECTIFIER

- alternator

1шт.

15

135141A1

NUT

- includes flat washer

1шт.

16

135129A1

INSULATOR

- alternator harness

1шт.

17

135140A1

SCREW

- special

1шт.

18

135139A1

SCREW

- special

1шт.
