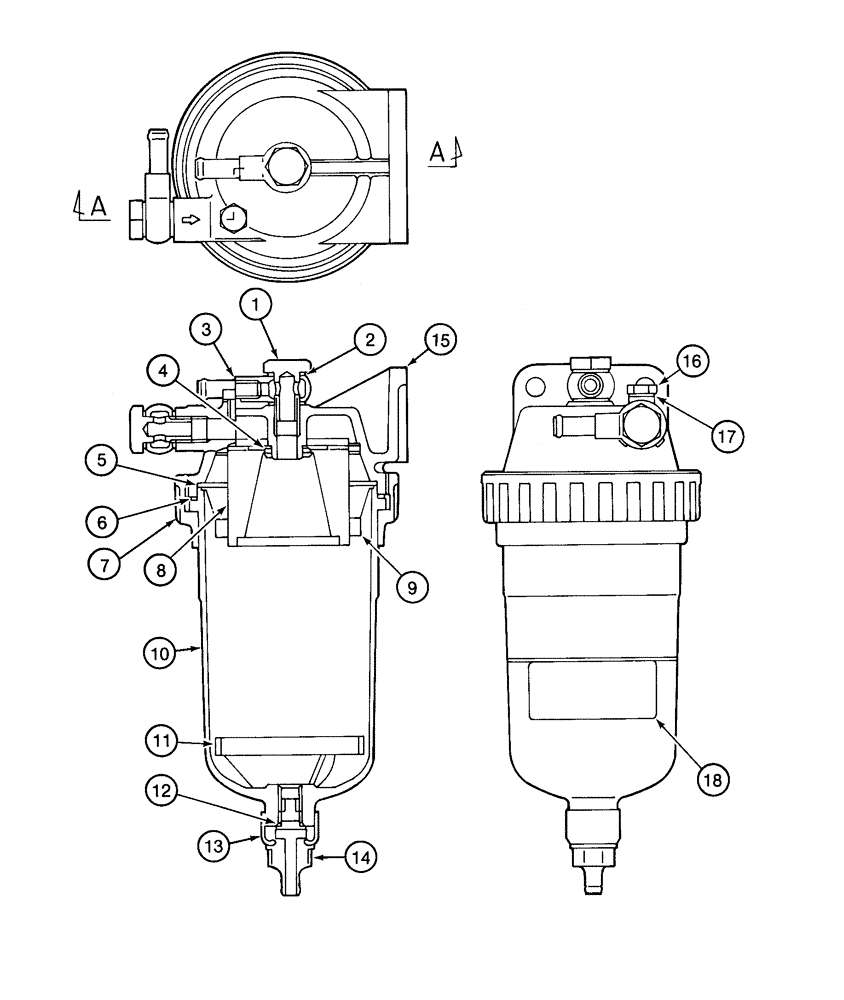

Запчасти Case 9060 (3-18) - 158651A1 WATER SEPARATOR (03) - FUEL SYSTEM

158651A1

SEPARATOR

- water, Includes: Ref. 1 - 18

1шт.

1

156185A1

BANJO BOLT

BOLT - special, fuel line connnecting

2шт.

2

158678A1

GASKET

- seal, fuel line bolt

4шт.

3

158679A1

FITTING

JOINT - fuel line tube

2шт.

4

158677A1

GASKET

- baffle plate

1шт.

5

158673A1

PACKING

- baffle plate

1шт.

6

154711A1

O-RING

-, Serial Range: body-head

1шт.

7

158671A1

RING NUT

- separator, Serial Range: body,-head

1шт.

8

158668A1

FUEL FILTER

ELEMENT - water separator

1шт.

9

158672A1

CONE

PLATE - baffle

1шт.

10

158670A1

BODY

- water separator

1шт.

11

158674A1

FLOAT

- water level

1шт.

12

154462A1

O-RING

- drain plug

1шт.

13

155353A1

PLUG

CAP - drain, separator

1шт.

14

155467A1

PLUG, DRAIN

PLUG - drain, separator

1шт.

15

158669A1

HEAD

- water separator

1шт.

16

158675A1

PLUG

- air

1шт.

17

158676A1

GASKET

- seal, plug

1шт.

18

REF

INSTRUCTION

PLATE - caution, separator

1шт.
