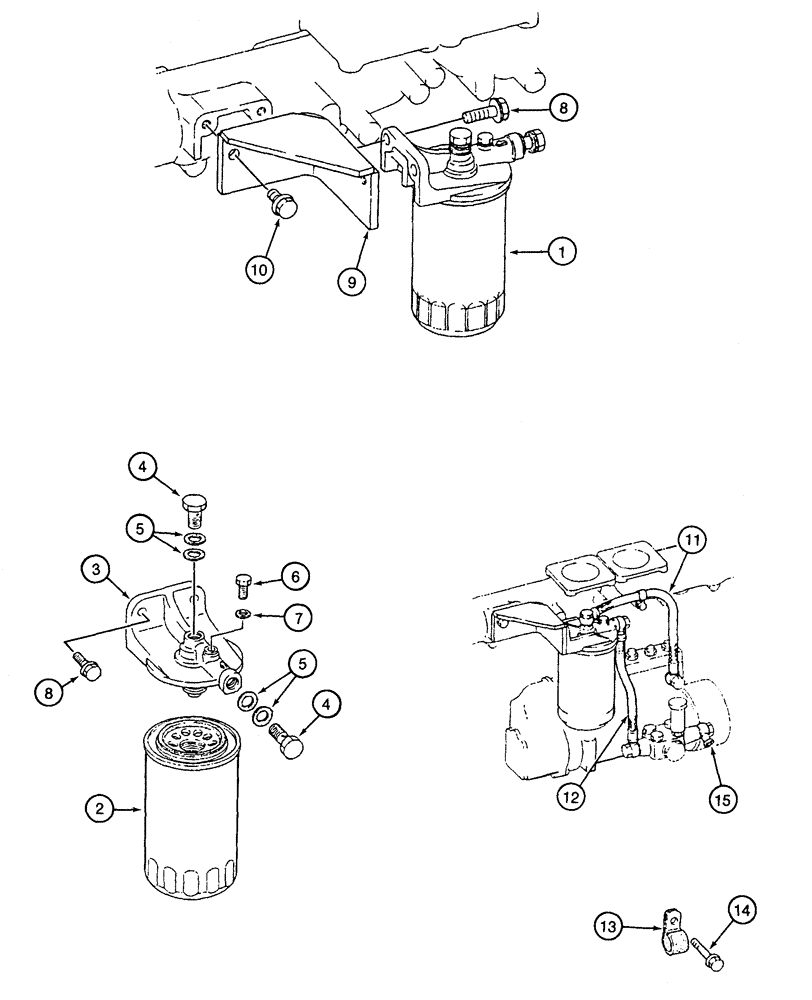

Запчасти Case 9060 (3-16) - FUEL FILTER AND HOSES (03) - FUEL SYSTEM

1

133398A1

FILTER, FUEL

FILTER - fuel, Includes: Ref. 2 - 7

1шт.

2

133402A1

FILTER

- fuel

1шт.

3

133399A1

HEAD ASSY.

BASE - fuel filter

1шт.

4

H412429

BANJO BOLT

BOLT - hex, banjo, 14 x 26 mm

2шт.

5

133378A1

GASKET

GASKET - special, bolt

4шт.

6

240107A1

PLUG

- hex, 8 mm

1шт.

7

133379A1

GASKET

- special, 8 mm

1шт.

8

133387A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

2шт.

8

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

2шт.

9

134800A1

BRACKET

- fuel filter

1шт.

10

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

2шт.

11

134815A1

HOSE

- 13-3/8 inch (340 mm) long

1шт.

12

134806A1

HOSE

- 15 inch (380 mm) long

1шт.

13

134803A1

CLAMP

- 16 mm diameter, fuel line

2шт.

14

132289A1

BOLT,Hex Flg, M10 x 16mm

- hex, flange, 10 x 16 mm

1шт.

15

133407A1

FITTING

- banjo

1шт.

Ref# 15 - Does NOT include screen. 2/21/98

1шт.
