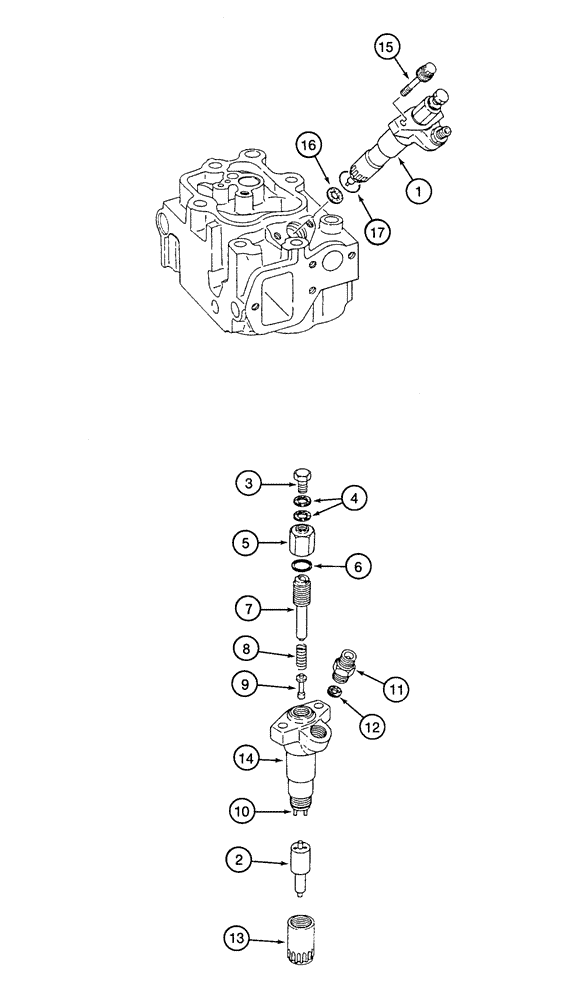

Запчасти Case 9060 (3-14) - FUEL INJECTION NOZZLE (03) - FUEL SYSTEM

1

135148A1

NOZZLE INJECTION

NOZZLE AND HOLDER - fuel injection, Includes: Ref. 2 - 14

6шт.

2

132284A1

NOZZLE CAP

NOZZLE - fuel injection

1шт.

135151A1

HOLDER

- fuel injection, Includes: Ref. 3 - 14

1шт.

3

134650A1

BOLT

BOLT - hex, banjo

1шт.

4

134686A1

GASKET

- nozzle, inner

2шт.

5

134714A1

NUT

- nozzle

1шт.

6

134652A1

GASKET

- nozzle screw

1шт.

7

134710A1

SCREW

- nozzle

1шт.

8

133275A1

SPRING

- nozzle holder

1шт.

9

134708A1

PUSH ROD

ROD - push, nozzle holder

1шт.

10

134711A1

DOWEL

PIN - holder

2шт.

11

134690A1

FITTING

ADAPTER - straight, special

1шт.

12

134685A1

GASKET

- special, adapter

1шт.

13

134712A1

NUT

- holder

1шт.

14

NSS

NOT SOLD SEPARAT

HOLDER - nozzle

1шт.

15

134715A1

BOLT,M8 x 56mm

- hex flange, 8 x 56 mm

12шт.

16

134649A1

SEAL

- dust, nozzle holder

6шт.

17

134651A1

GASKET

- fuel injection nozzle

6шт.
