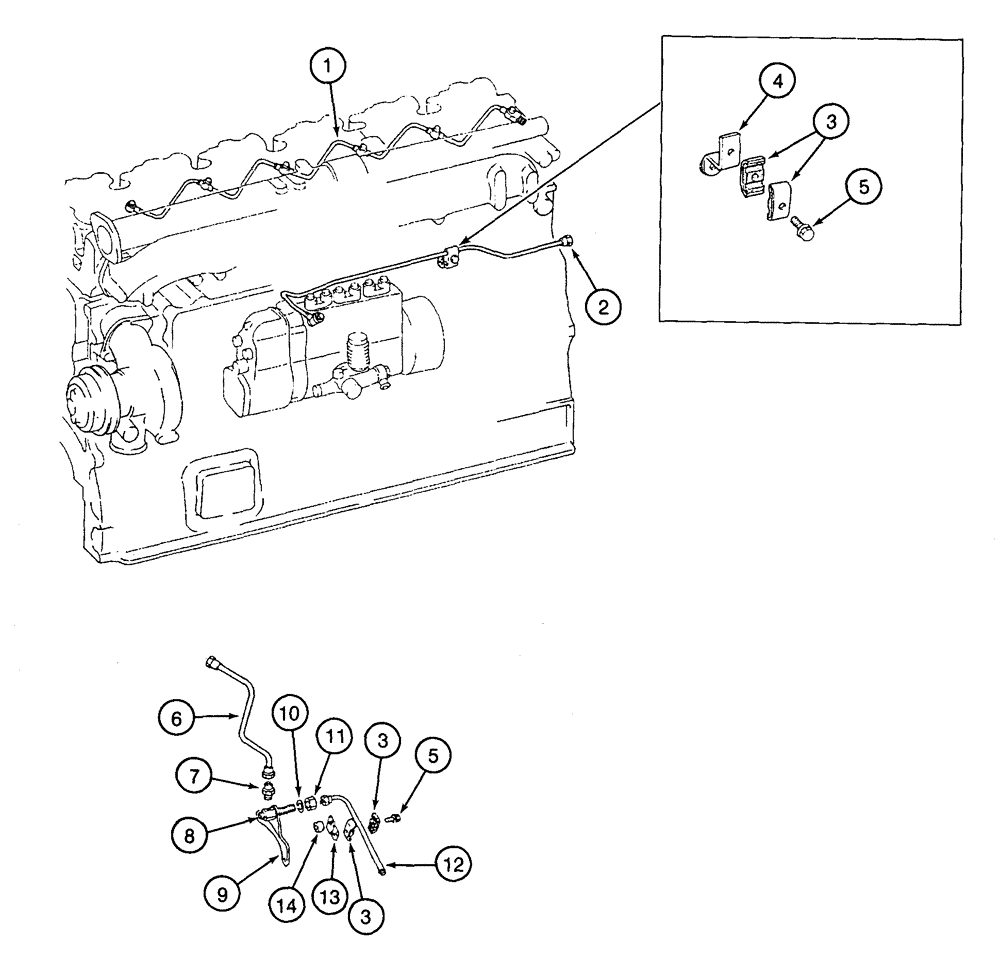

Запчасти Case 9060 (3-10) - FUEL RETURN LINES (03) - FUEL SYSTEM

1

240284A1

FUEL TUBE

TUBE - fuel injection nozzle return, was 134733A1 or ME056925

1шт.

2

134732A1

TUBE

- injection pump overflow

1шт.

3

133329A1

CLAMP

- tube, 2 x 6 mm

4шт.

4

134723A1

SUPPORT

- clamp

1шт.

5

133338A1

BOLT,Hex Flg, M6 x 35mm

- hex flange, 6 x 35 mm

2шт.

6

134734A1

FUEL TUBE

TUBE - fuel injection nozzle return

1шт.

7

133327A1

FITTING

ADAPTER - straight

1шт.

8

134727A1

CONNECTOR, ELEC

ADAPTER - special, fuel return tubes

1шт.

9

134729A1

BRACKET

- adapter

1шт.

10

132622A1

WASHER

- lock, 14 mm

1шт.

11

132634A1

NUT

- hex jam, 14 mm

1шт.

12

134721A1

FUEL TUBE

TUBE - fuel return

1шт.

13

134724A1

SUPPORT

- clamp

1шт.

14

134731A1

STAY

SPACER - 15 mm, clamp

1шт.
