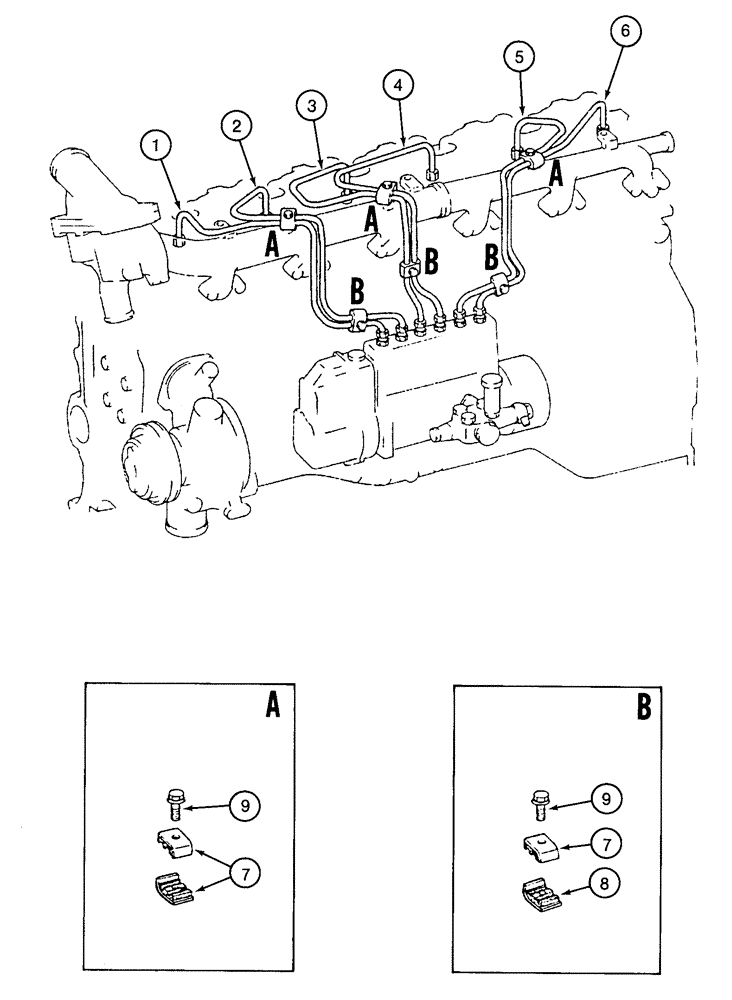

Запчасти Case 9060 (3-08) - INJECTION TUBES (03) - FUEL SYSTEM

1

240126A1

FUEL TUBE

TUBE - fuel injection, No. 1, 6.35 x 2 x 680 mm

1шт.

2

240127A1

FUEL TUBE

TUBE - fuel injection, No. 2, 6.35 x 2 x 680 mm

1шт.

3

240128A1

FUEL TUBE

TUBE - fuel injection, No. 3, 6.35 x 2 x 680 mm

1шт.

4

240129A1

FUEL TUBE

TUBE - fuel injection, No. 4, 6.35 x 2 x 680 mm

1шт.

5

240130A1

FUEL TUBE

TUBE - fuel injection, No. 5, 6.35 x 2 x 680 mm

1шт.

6

240131A1

FUEL TUBE

TUBE - fuel injection, No. 6, 6.35 x 2 x 680 mm

1шт.

133270A1

FUEL TUBE

TUBE - fuel injection, straight, 6.35 x 2 x 680 mm, not shown

1шт.

Replaces fuel injection tubes 1 thru 6. For service only, bend to fit.

1шт.

7

240122A1

CLAMP

- 2 x 6 mm, injection tube

9шт.

8

240280A1

CLAMP

- 2 x 6 mm, injection tube

3шт.

9

240281A1

BOLT

- hex, with attached washer, 6 x 30 mm

6шт.
