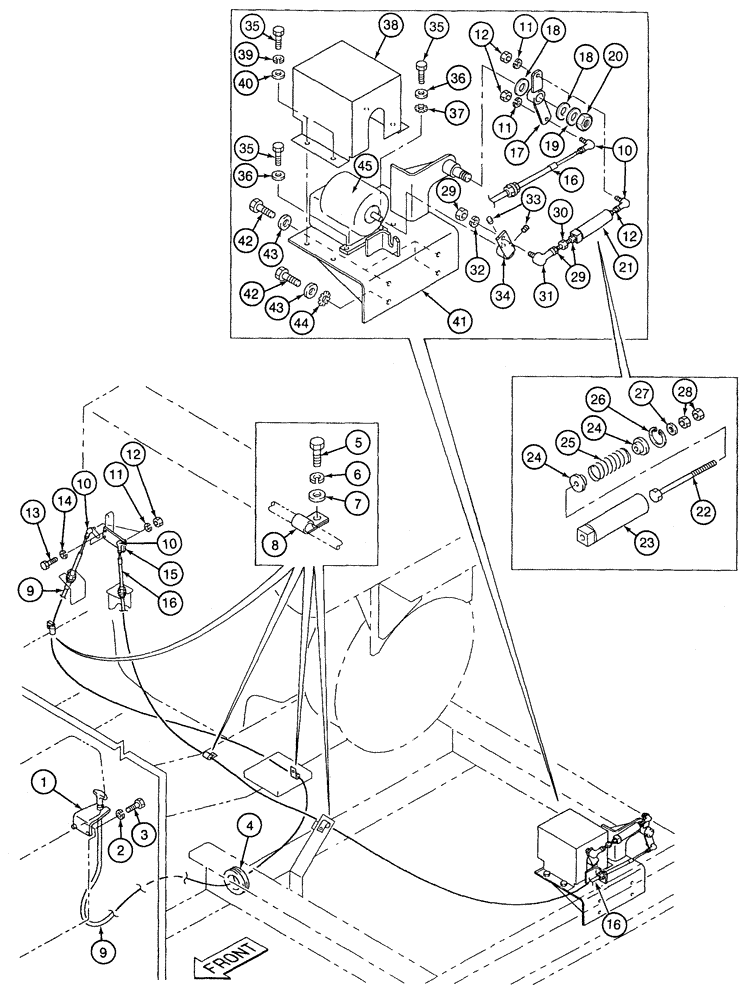

Запчасти Case 9060 (3-07A) - THROTTLE AND FUEL SHUTOFF CONTROLS, P.I.N. EAC0600003 AND AFTER (03) - FUEL SYSTEM

1

152166A1

BRACKET

- mounting, emergency shutoff T-handle

1шт.

2

892-11010

LOCK WASHER,M10

2шт.

3

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

4

153590A1

GROMMET

- rubber

1шт.

5

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

4шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

153039A1

CLAMP

- P-type, 12 mm ID

4шт.

9

150565A1

CABLE PULLING GRIP

CABLE - emergency shutoff, includes T-handle

1шт.

10

150054A1

BALL JOINT

JOINT - ball

4шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

5шт.

13

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

14

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

15

151041A1

CONTROL LEVER

LEVER - emergency shutoff cable

1шт.

16

151044A1

CABLE PULLING GRIP

CABLE - control, to throttle motor

1шт.

170016A1

ARM ASSY.

BELLCRANK - throttle linkage, Includes: Ref. 17 & 18

1шт.

17

170071A1

ARM ASSY.

BELLCRANK - throttle linkage

1шт.

18

170072A1

BUSHING

- bellcrank

2шт.

19

170073A1

WASHER

- special

1шт.

20

170074A1

NUT

- hex, special

1шт.

21

150535A1

SPRING

- cable return, Includes: Ref. 22 - 28

1шт.

22

150540A1

BOLT,Hex, M6 x 95mm, Spcl

BOLT - hex, special

1шт.

23

150537A1

TUBE

HOUSING - spring

1шт.

24

150453A1

COLLAR CLAMP

GUIDE - spring

2шт.

25

150543A1

SPRING

- cable return

1шт.

26

800-2122

SNAP RING,M22, Internal

RING, SNAP, M22, Int

1шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

28

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

3шт.

30

150547A1

ROD,THREADED

ROD - threaded, cable return spring

1шт.

31

153235A1

BALL JOINT

JOINT - ball

1шт.

32

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

33

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

SCREW - set, hex socket, 8 - 1.25 x 12 mm, cup point

2шт.

34

151521A1

LEVER

- throttle motor

1шт.

35

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

6шт.

36

150594A1

WASHER

WASHER - flat, 10.5 x 18 x 3.2 mm

2шт.

37

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

38

151930A1

COVER

- throttle motor

1шт.

39

892-11010

LOCK WASHER,M10

4шт.

40

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

41

170015A1

BRACKET

- mounting, throttle motor linkage and cover

1шт.

42

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

43

150811A1

WASHER

- flat, special, 12 mm

4шт.

44

30574R1

LOCK WASHER,Ext Tooth, M12

WASHER - internal tooth lock, 12 mm

1шт.

45

152920A1

MOTOR

- throttle, component parts not serviced separately

1шт.

152920A1R

REMAN-ELECTRIC MOTOR

9060 P.I.N. EAC0600003 AND AFTER (4/93-)

1шт.

152920A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.
