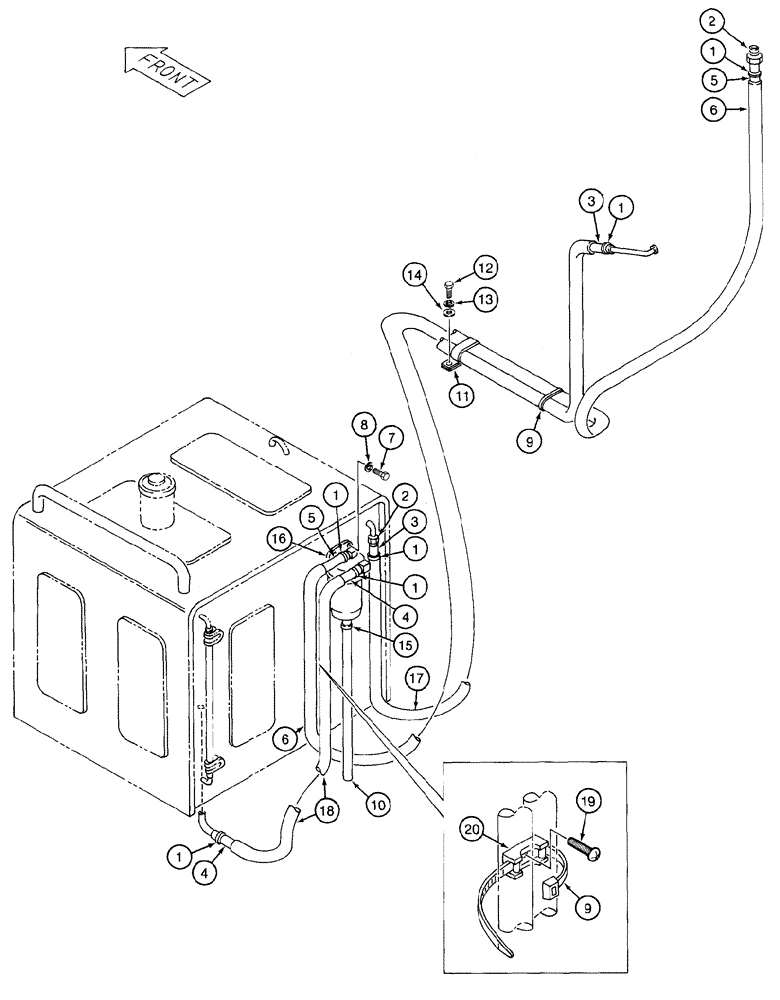

Запчасти Case 9060 (3-04) - FUEL LINES (03) - FUEL SYSTEM

1

153043A1

COLLAR

CLAMP - wire-type

6шт.

2

170011A1

FITTING

- tube

2шт.

3

150419A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 3000 mm Length

TUBE - fuel return

1шт.

4

157609A1

LARGE HOSE

TUBE - bottom of, Serial Range: tank-separator

1шт.

5

158663A1

PLASTIC-RUBBER TUBE

TUBE - supply, Serial Range: separator-engine

1шт.

6

151563A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 149-5/8 inch (3800 mm), Serial Range: long,-engine

1шт.

7

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

8

892-11010

LOCK WASHER,M10

2шт.

9

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

2шт.

10

157627A1

PLASTIC-RUBBER TUBE

TUBE - drain, separator drain

1шт.

11

150585A1

CLAMP

- P-type, double

1шт.

12

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

1шт.

13

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

15

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

16

158651A1

SEPARATOR

- water, from fuel, parts list figure 3-18

1шт.

17

150782A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 98-7/16 inch (2500 mm) long, Serial Range: separator-engine

1шт.

18

157769A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 59 inch (1500 mm) long, Serial Range: tank-separator

1шт.

19

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

1шт.

20

150860A1

COLLAR

BRACKET - support

1шт.
