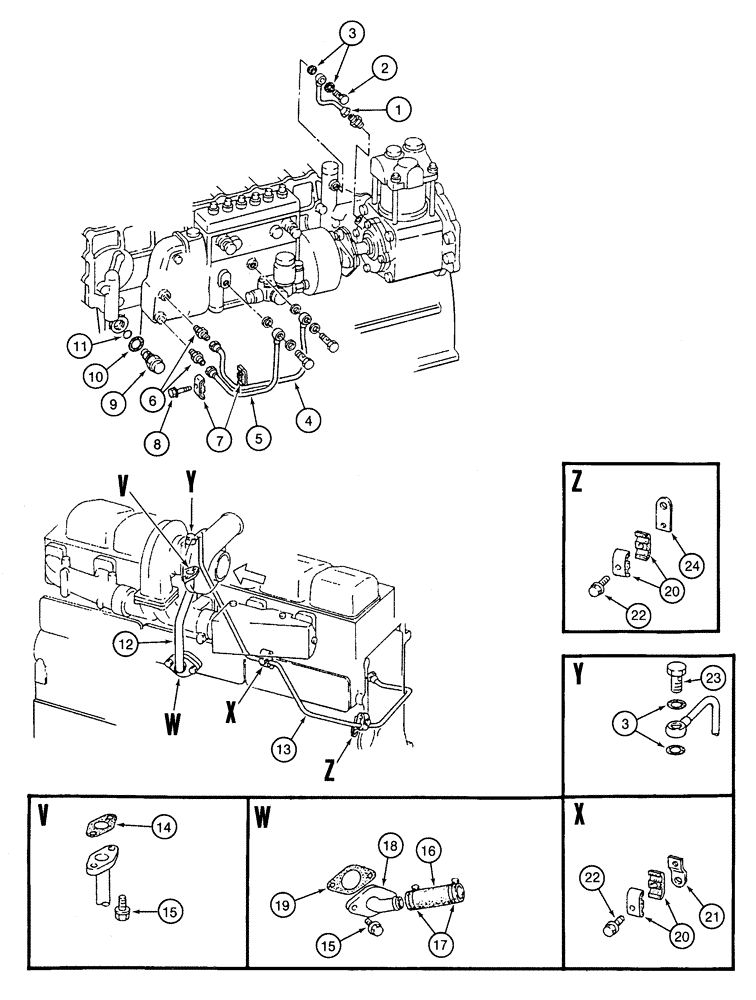

Запчасти Case 9060 (2-56) - OIL LINES (02) - ENGINE

1

133350A1

TUBE

- oil feed, 6 mm, air compressor

1шт.

2

133333A1

BOLT,Hex, M10 x 20mm

BOLT - hex, banjo, 10 x 20 mm, oil feed tube

1шт.

3

132342A1

GASKET

- 10 mm, banjo bolt

4шт.

4

133323A1

TUBE

- engine oil line

1шт.

5

133322A1

TUBE

- engine oil line

1шт.

6

133327A1

FITTING

ADAPTER - straight, tube

2шт.

7

133329A1

CLAMP

- tube, 2 x 6 mm, oil tube

2шт.

8

133337A1

BOLT,Hex Flg, M6 x 30mm

- hex flange, 6 x 30 mm

1шт.

9

240101A1

VALVE

- oil pressure regulating

1шт.

10

132638A1

GASKET

- 27 mm, valve

1шт.

11

133326A1

O-RING

- valve

1шт.

12

240104A1

TUBE

- oil return, turbocharger

1шт.

13

133347A1

TUBE

- oil feed, turbocharger

1шт.

14

133176A1

GASKET

-

1шт.

15

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

4шт.

16

133346A1

HOSE

- 3-11/32 inch (85 mm) long, turbocharger return oil

1шт.

17

133328A1

CLIP

CLAMP - adj, 31 mm

2шт.

18

133349A1

TUBE

- oil return, turbocharger

1шт.

19

133345A1

GASKET

- oil return tube

1шт.

20

133331A1

CLAMP

- tube, 9 x 2 mm

4шт.

21

133325A1

STAY

SUPPORT - clamp

1шт.

22

133338A1

BOLT,Hex Flg, M6 x 35mm

- hex flange, 6 x 35 mm

2шт.

23

133335A1

BOLT,Hex, M10 x 26mm

- oil tube, 10 x 26 mm

1шт.

24

133324A1

STAY

SUPPORT - clamp

1шт.
