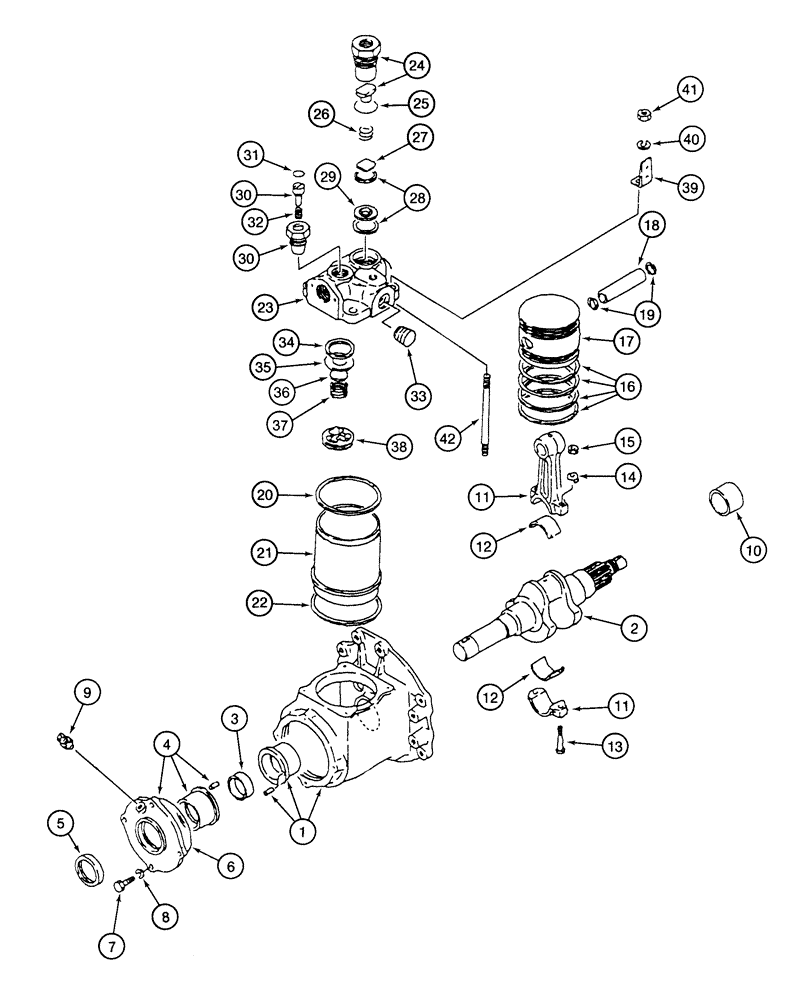

Запчасти Case 9060 (2-54) - AIR COMPRESSOR (02) - ENGINE

132554A1

COMPRESSOR

- air, Includes: Ref. 1 - 42

1шт.

1

132563A1

HOUSING

- air compressor, includes bearing sleeve and dowel pin

1шт.

2

132564A1

CRANKSHAFT

- air compressor

1шт.

3

132599A1

SLEEVE

- crankshaft

1шт.

Part of oil seal kit P/N ME713418

1шт.

4

132570A1

HOUSING

HOUSING - bearing, includes housing, bearing sleeve, oil seal and dowel pin

1шт.

5

132576A1

OIL SEAL

SEAL - oil, crankshaft, front

1шт.

Part of oil seal kit P/N ME713418

1шт.

6

132630A1

O-RING

- bearing housing

1шт.

7

132667A1

BOLT,Hex, M8 x 22mm

- hex, 8 x 22 mm

4шт.

8

132619A1

WASHER

- lock, 8 mm

4шт.

9

132643A1

FITTING

ADAPTER - special, bearing housing

1шт.

10

132559A1

COLLAR

- crankshaft, rear

1шт.

132561A1

PITMAN ASSY.

ROD - connecting, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

ROD - connecting, includes both halves

1шт.

12

132555A1

CRANKSHAFT BEARING

BEARING - connecting rod

2шт.

13

132668A1

BOLT

- connecting rod

2шт.

14

132618A1

WASHER

- connecting rod

2шт.

15

132631A1

NUT

- connecting rod

2шт.

16

132598A1

PISTON RING SET

KIT - piston ring

1шт.

17

132597A1

PISTON

- air compressor

1шт.

18

132581A1

PIN

- piston

1шт.

19

132604A1

RING, SNAP

RING - snap, piston pin

2шт.

20

132565A1

GASKET

- piston sleeve, upper

1шт.

21

132575A1

SLEEVE CYLINDER

SLEEVE - piston

1шт.

22

132566A1

GASKET

- piston sleeve, lower

1шт.

132569A1

HEAD (CYLINDER)

HEAD - air compressor, Includes: Ref. 23 - 38

1шт.

23

NSS

NOT SOLD SEPARAT

HEAD - cylinder

1шт.

132608A1

SET OF PARTS

VALVE - delivery, Includes: Ref. 24 - 29

1шт.

24

132571A1

FITTING

HOLDER - delivery valve, with poppet

1шт.

25

132629A1

O-RING

- holder

1шт.

26

132605A1

SPRING

- delivery valve

1шт.

27

132614A1

VALVE

- delivery

1шт.

28

132567A1

GASKET

- delivery valve

2шт.

29

132600A1

SEAT, VALVE

SEAT - delivery valve

1шт.

132613A1

SET OF PARTS

KIT - unloader valve assembly, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - unloader valve, with poppet

1шт.

31

132603A1

RING, SNAP

RING - snap

1шт.

32

132607A1

SPRING

- compression type, unloader valve

1шт.

33

132627A1

PLUG

- cylinder head

1шт.

132611A1

SET OF PARTS

KIT - suction valve assembly, Includes: Ref. 34 - 38

1шт.

34

132568A1

GASKET

- suction valve

1шт.

35

132602A1

SEAT

- suction valve

1шт.

36

132616A1

VALVE

- suction

1шт.

37

132606A1

SPRING

- compression type, suction valve

1шт.

38

132572A1

HOLDER

- suction valve

1шт.

39

132556A1

BRACKET

- head pipe

1шт.

40

132620A1

WASHER

- lock, 10 mm

4шт.

41

132632A1

NUT

- hex, 10 mm

4шт.

42

132625A1

STUD

- cylinder head

4шт.

ME713418

KIT

- oil seal, compressor front crankshaft, Includes: Ref. 3 & 5

1шт.
