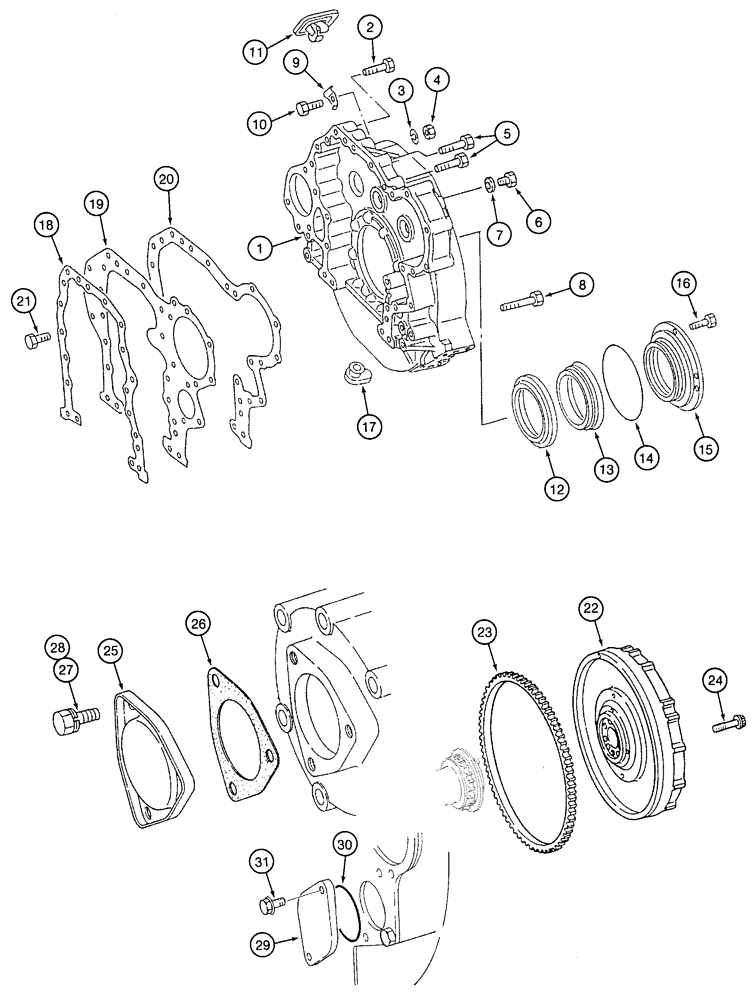

Запчасти Case 9060 (2-48) - FLYWHEEL AND HOUSING (02) - ENGINE

1

240061A1

HOUSING

- flywheel

1шт.

2

132452A1

BOLT,Hex Flg, M12 x 60mm

- hex flange, 12 x 60 mm

2шт.

3

132427A1

WASHER

- lock, 6 mm

1шт.

4

132434A1

WHEEL NUT

- 6 mm

1шт.

5

132452A1

BOLT,Hex Flg, M12 x 60mm

- hex flange, 12 x 60 mm

2шт.

6

132430A1

PLUG

- 16 mm, Includes: Ref. 7

1шт.

7

132412A1

GASKET

- special, 16 mm

1шт.

8

132436A1

BOLT,Hex Flg, M12 x 90mm

- hex flange, 12 x 90 mm

8шт.

9

132414A1

INDICATOR

POINTER - timing

1шт.

10

132438A1

BOLT,Hex, M6 x 25mm

- hex, 6 x 25 mm

1шт.

11

132403A1

COVER

- timing pointer

1шт.

12

132456A1

RING

SLINGER - oil, rear

1шт.

13

132459A1

SEAL

SEAL - oil, rear

1шт.

14

132432A1

O-RING

- seal retainer, 179 mm

1шт.

15

132426A1

RETAINER

- oil seal

1шт.

16

132442A1

BOLT,M8 x 16mm, W/ Wshr

BOLT - with captive washer, 8 x 16 mm

4шт.

17

132428A1

PLUG

- rubber, 29 mm

1шт.

18

132407A1

GASKET

- rear plate, cylinder block side

1шт.

19

132413A1

PLATE

- flywheel housing, rear cylinder block

1шт.

20

132409A1

GASKET

- rear plate, flywheel housing side, for service only

1шт.

21

132453A1

BOLT,Hex Flg, M12 x 20mm

- hex flange, 12 x 20 mm

9шт.

132454A1

FLYWHEEL

- engine, Includes: Ref. 22 & 23

1шт.

22

NSS

NOT SOLD SEPARAT

FLYWHEEL - engine

1шт.

23

132458A1

RING, FLYWHEEL

GEAR - ring, 143 teeth, flywheel

1шт.

24

132460A1

BOLT,Hex Flg, M16 x 50.50mm

BOLT - hex flange, 16 x 50.5 mm

8шт.

25

132405A1

COVER

- tachometer drive

1шт.

26

132411A1

GASKET

- tach drive cover

1шт.

27

132461A1

BOLT,M10 x 20mm, W/ Wshr

- with captive washer, 10 x 20 mm

2шт.

28

132462A1

BOLT,M10 x 35mm, W/ Wshr

BOLT - with captive washer, 10 x 35 mm

1шт.

29

135149A1

COVER

PLATE - cover, if used

1шт.

30

135150A1

O-RING

- if used

1шт.

31

132385A1

BOLT,Hex Flg, M12 x 25mm

- hex flange, 12 x 25 mm, if used

2шт.
