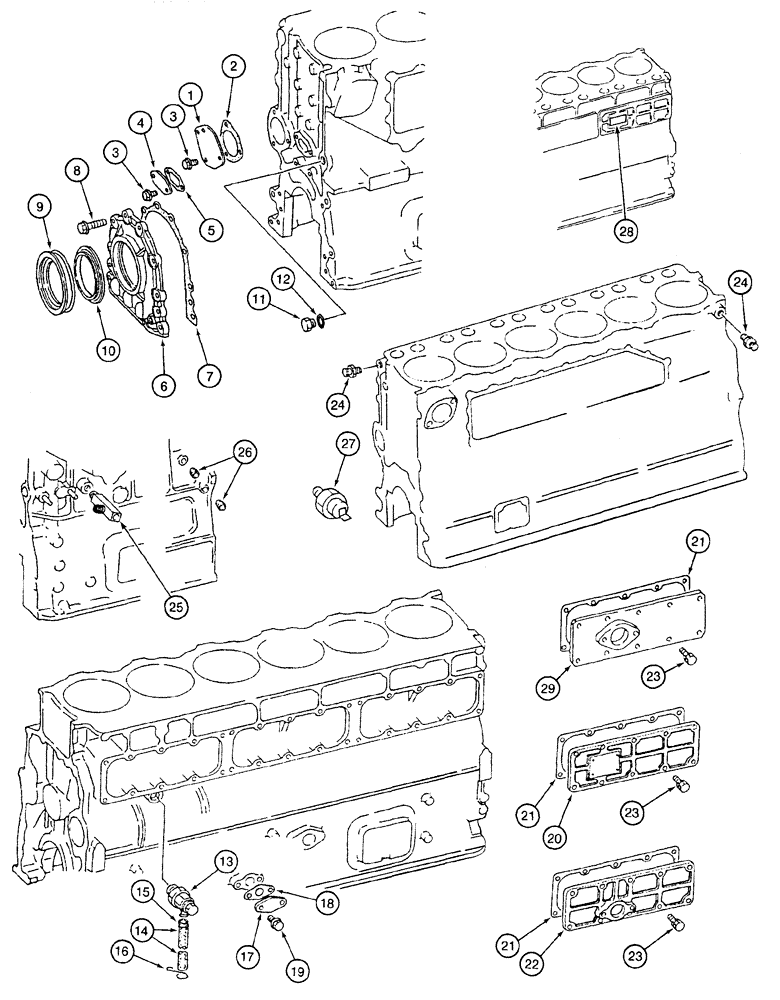

Запчасти Case 9060 (2-44) - CYLINDER BLOCK ATTACHING PARTS AND ENGINE GASKET KIT (02) - ENGINE

1

133155A1

COVER

- cylinder block, camshaft gallery

1шт.

2

133173A1

GASKET

- cover

1шт.

3

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

5шт.

4

133154A1

COVER

- cylinder block

1шт.

5

133174A1

GASKET

- cover

1шт.

6

133151A1

COVER

- crankshaft end

1шт.

7

133177A1

GASKET

- end cover

1шт.

8

133171A1

BOLT,Hex, M12 x 30mm

- hex flange, 12 x 30 mm

8шт.

9

133160A1

OIL SEAL

- oil, front gear cover

1шт.

10

133179A1

RING

SLINGER - oil, front gear cover

1шт.

11

133163A1

PLUG

- special, 27 mm

1шт.

12

132638A1

GASKET

- 27 mm

1шт.

13

133149A1

COCK

VALVE - drain, water, block

1шт.

14

133159A1

HOSE

- 25-5/8 inch (650 mm) long, water drain

1шт.

15

133165A1

CLAMP

- 16 mm diameter, drain hose

1шт.

16

133167A1

CLAMP

CLIP - wire, drain hose, s-shape; 11 mm and 18 mm ends

1шт.

17

133156A1

COVER

- cylinder block

1шт.

18

133176A1

GASKET

- cover

1шт.

19

132289A1

BOLT,Hex Flg, M10 x 16mm

- hex, flange, 10 x 16 mm

2шт.

20

133152A1

COVER

- side

1шт.

21

133158A1

GASKET

- side cover

3шт.

22

133153A1

COVER

- tappet

1шт.

23

133168A1

BOLT,M10 x 30mm, W/ Captive Wshr

- with captive washer, 10 x 30 mm

1шт.

23

133169A1

BOLT,M10 x 30mm, W/ Captive Wshr

- with captive washer, 10 x 30 mm

29шт.

24

133178A1

SCREW

BOLT - lifting, engine

2шт.

25

133183A1

CONNECTOR, ELEC

FITTING - special

1шт.

26

133181A1

PLUG

- special, 1/8 inch PT, oil pressure gauge

3шт.

27

H411892

SWITCH

SENDER - oil pressure

1шт.

28

240378A1

PLATE

- Caution, valve clearance

1шт.

29

240085A1

COVER

- side

1шт.

132281A1

GASKET KIT

KIT - gasket, engine overhaul, not shown

1шт.
