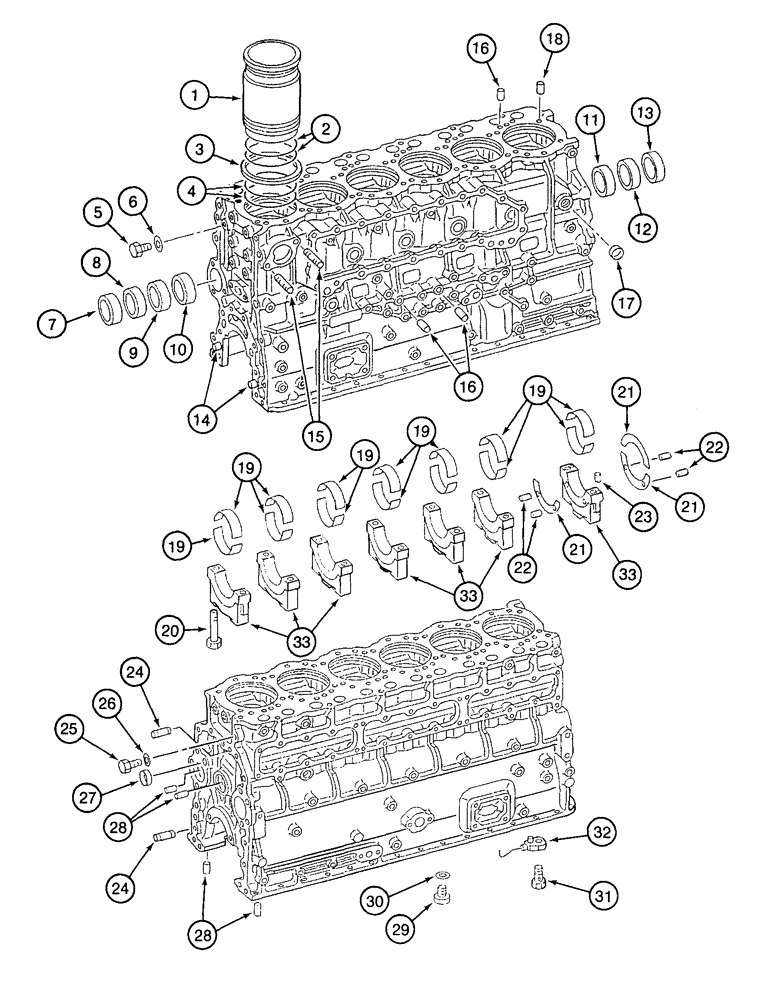

Запчасти Case 9060 (2-42) - CYLINDER BLOCK ASSEMBLY (02) - ENGINE

240045A1

SKELETON ENGINE

ENGINE - short block, includes block, main bearing caps, block bushings, complete pistons, connecting rods, rod bearings and crankshaft

1шт.

1

132312A1

SLEEVE CYLINDER

LINER - cylinder, A size (stamped into top of piston)

6шт.

1

132313A1

SLEEVE CYLINDER

LINER - cylinder, B size (stamped into top of piston)

6шт.

1

132314A1

SLEEVE CYLINDER

LINER - cylinder, C size (stamped into top of piston)

6шт.

2

240049A1

O-RING

- cylinder block liner

12шт.

3

132311A1

SEAL

- cylinder liner, rubber

6шт.

4

240050A1

O-RING

- cylinder block

12шт.

5

132317A1

PLUG

- 10 mm, cylinder block

1шт.

6

132342A1

GASKET

- 10 mm, plug

1шт.

7

132333A1

CAMSHAFT BEARING

- camshaft bearing, 65 x 26 mm, cylinder block

1шт.

8

132334A1

CAMSHAFT BEARING

BUSHING - camshaft bearing, 65.3 x 26 mm, cylinder block

1шт.

9

132335A1

CAMSHAFT BEARING

BUSHING - camshaft bearing, 65.5 X 26 mm, cylinder block

1шт.

10

132336A1

CAMSHAFT BEARING

BUSHING - camshaft bearing, 65.5 x 26 mm, cylinder block

1шт.

11

132337A1

CAMSHAFT BEARING

BUSHING - camshaft bearing, 65.8 x 26 mm, cylinder block

1шт.

12

132338A1

CAMSHAFT BEARING

BUSHING - camshaft bearing, 72 x 26 mm, cylinder block

1шт.

13

132339A1

CAMSHAFT BEARING

- camshaft bearing, 72 x 34 mm, cylinder block

1шт.

14

132325A1

DOWEL

PIN - dowel, 12 x 24 mm

2шт.

15

132316A1

STUD

- 10 x 30 mm, cylinder block

2шт.

16

132323A1

DOWEL

PIN - dowel, 10 x 20 mm, cylinder block

14шт.

17

132300A1

CAP

PLUG - freeze, 25 mm, cylinder block

1шт.

18

132320A1

PLUG

- 10 mm, cylinder block

1шт.

19

132343A1

CRANKSHAFT BEARING

KIT - bearing, upper and lower, 0.25 mm undersize

1шт.

19

132344A1

CRANKSHAFT BEARING

BEARING - set, crankshaft, 0.50 mm undersize

1шт.

19

132345A1

CRANKSHAFT BEARING

BEARING - set, crankshaft, 0.75 mm undersize

1шт.

19

132346A1

CRANKSHAFT BEARING

BEARING - set, crankshaft, 1.00 mm undersize

1шт.

19

132347A1

CRANKSHAFT BEARING

BEARING - set, crankshaft, standard

1шт.

20

132340A1

BOLT,M18 x 136mm

- hex flange, 18 x 136 mm

14шт.

21

132348A1

PLATE

- thrust, crankshaft, standard

3шт.

21

132351A1

PLATE

- thrust, crankshaft, 0.15 mm oversize

3шт.

21

132353A1

PLATE

- thrust, crankshaft, 0.30 mm oversize

3шт.

21

132354A1

PLATE

- thrust, crankshaft, 0.45 mm oversize

3шт.

22

132322A1

SPRING

PIN - spring, 5 x 10 mm

6шт.

23

132327A1

DOWEL

PIN - dowel, 8 x 25 mm

2шт.

24

132324A1

DOWEL

PIN - dowel, 12 x 34 mm

2шт.

25

132317A1

PLUG

- 10 mm, cylinder block

1шт.

26

132342A1

GASKET

- 10 mm, plug

1шт.

27

132331A1

CAP

- 28 mm, cylinder block freeze plug

1шт.

28

1271835C1

AXLE PIN

PIN - dowel, 8 x 18 mm

4шт.

29

132318A1

PLUG

- 20 mm, cylinder block

2шт.

30

132341A1

SEAL

- 20 mm, plug

2шт.

31

132310A1

PLUG

VALVE - check, piston lubricant

6шт.

32

240048A1

ORIFICE RING

JET - oil, cylinder block

6шт.

33

REF

INSTRUCTION

CAP - connecting rod, see page 2-51

6шт.
