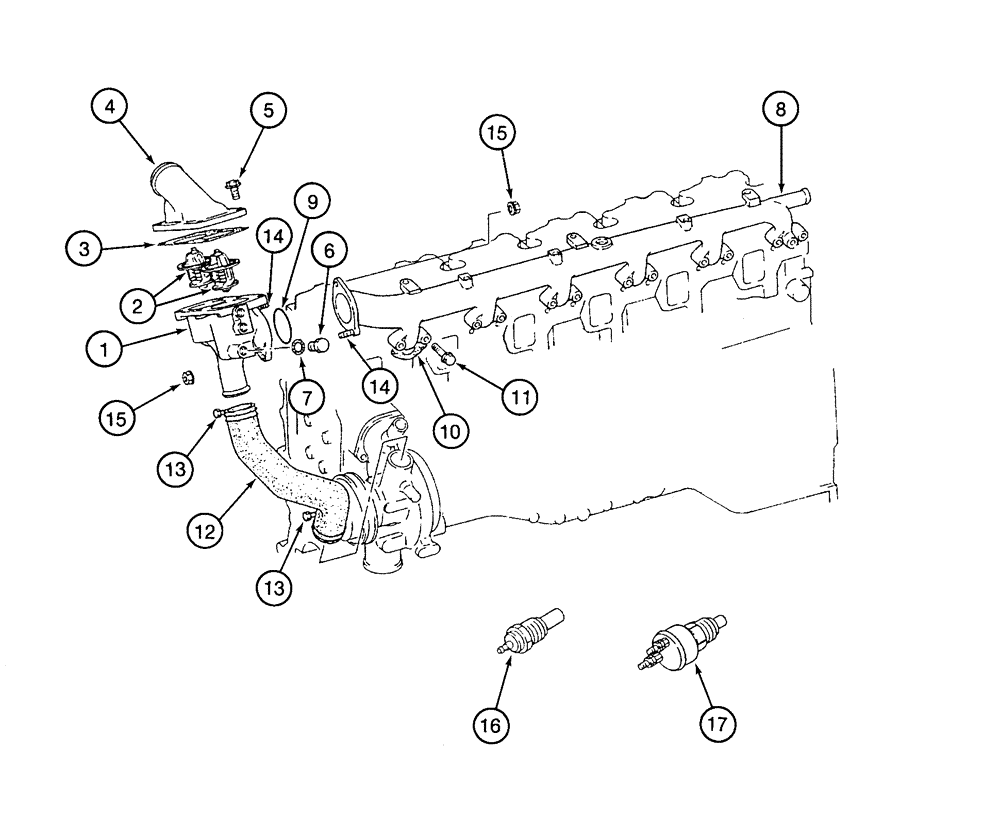

Запчасти Case 9060 (2-38) - WATER PIPE AND THERMOSTAT (02) - ENGINE

1

134830A1

MANIFOLD

HOUSING - thermostat

1шт.

240289A1

THERMOSTAT

KIT - thermostat and gasket, was 134823A1, Includes: Ref. 2 & 3

2шт.

2

NSS

NOT SOLD SEPARAT

THERMOSTAT - water

1шт.

3

134824A1

GASKET

- thermostat housing

1шт.

4

134820A1

COVER

- thermostat housing

1шт.

5

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

6шт.

6

132430A1

PLUG

- 16 mm, thermostat ,housing

1шт.

7

132412A1

GASKET

- special, 16 mm

1шт.

8

134962A1

PIPE

- water outlet

1шт.

9

134835A1

O-RING

- water pipe

1шт.

10

240291A1

GASKET

- water pipe, waa 134831A1

6шт.

11

134834A1

BOLT,Hex, M10 x 45mm

- hex flange, 10 x 45 mm

12шт.

12

134949A1

HOSE

- thermostat bypass

1шт.

13

134833A1

CLIP

CLAMP - adjustable, bypass hose

2шт.

14

134827A1

STUD

- 10 x 22 mm

2шт.

15

134814A1

JAM NUT

- hex jam, 16 mm

2шт.

16

134836A1

UNIT

GAUGE - water temperature

1шт.

17

134837A1

SWITCH

- water temperature, 105 degrees Centigrade

1шт.
