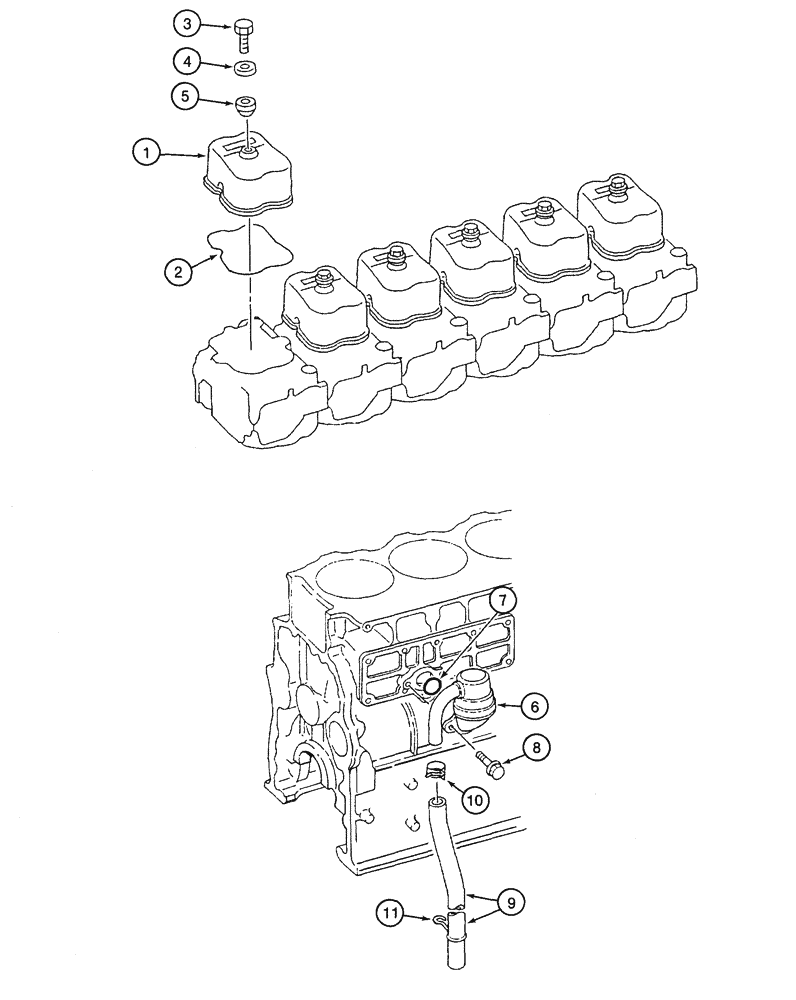

Запчасти Case 9060 (2-36) - CYLINDER HEAD COVERS AND ENGINE BREATHER (02) - ENGINE

1

132282A1

COVER

- cylinder head

6шт.

2

132283A1

O-RING

- cylinder head cover

6шт.

3

132286A1

BOLT,Hex, M8 x 28mm

- hex, 8 x 28 mm

6шт.

4

132285A1

WASHER

- flat, 8.5 mm

6шт.

5

1273078C1

SEAL ASSY.

- oil, rubber

6шт.

6

132287A1

BREATHER

- engine

1шт.

7

132290A1

O-RING

- breather

1шт.

8

132289A1

BOLT,Hex Flg, M10 x 16mm

- hex, flange, 10 x 16 mm

2шт.

9

132288A1

HOSE

- 39-3/8 inch (1000 mm) long, breather

1шт.

10

132292A1

CLAMP

- 30 mm diameter, breather hose

1шт.

11

132291A1

CLIP

- breather hose

1шт.
