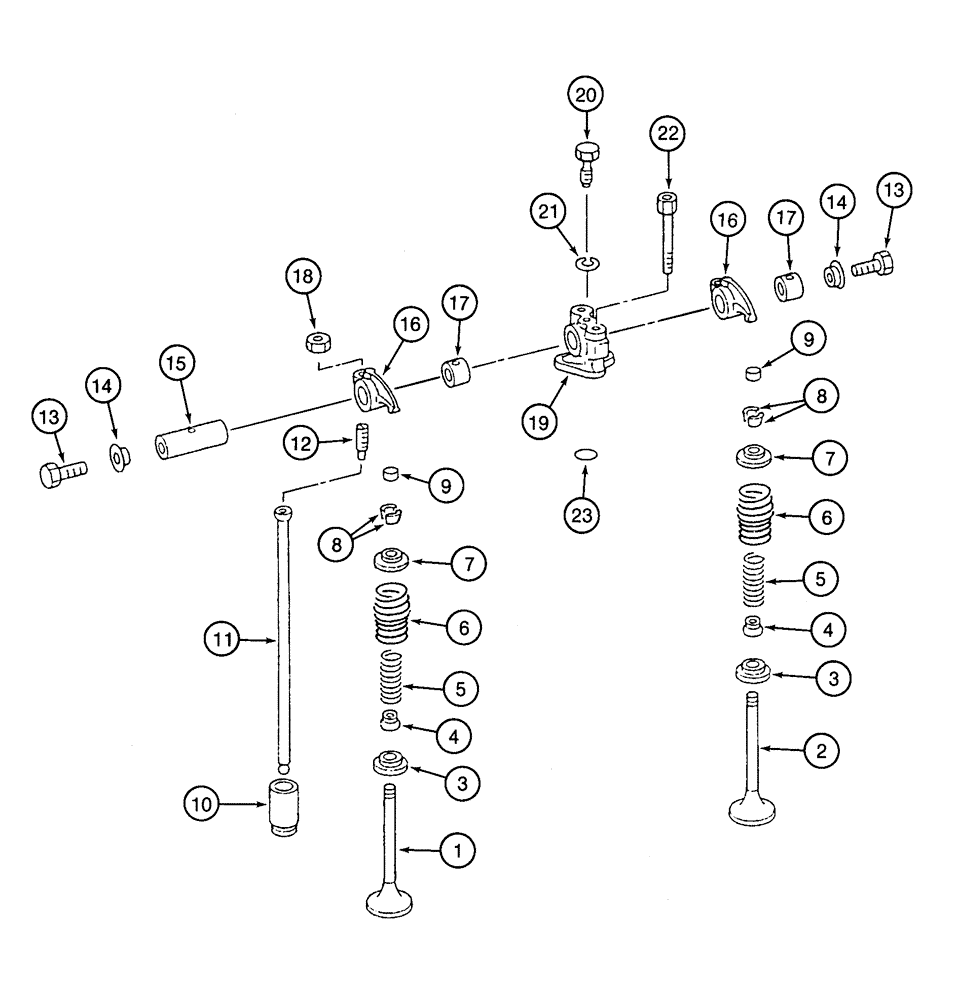

Запчасти Case 9060 (2-34) - VALVE MECHANISM (02) - ENGINE

1

132517A1

VALVE

- inlet

6шт.

2

132524A1

VALVE

- exhaust

6шт.

3

132518A1

SPRING SEAT

SEAT - valve spring, lower

12шт.

4

132526A1

SEAL

- rubber, valve stem

12шт.

5

132520A1

SPRING

- valve, inner

12шт.

6

132522A1

SPRING

- valve, outer

12шт.

7

132515A1

RETAINER

- valve spring, upper

12шт.

8

132527A1

WOODRUFF KEY

LOCK - spring retainer

24шт.

9

132504A1

CAP

- valve, 12 mm

12шт.

10

132498A1

TAPPET

- valve, pushrod

12шт.

11

132513A1

PUSH ROD

ROD - push, valve

12шт.

12

132503A1

SCREW,M10 x 45mm

- special, 10 x 45 mm

12шт.

13

132506A1

BOLT,Hex, M6 x 10mm, W/ Wshr

- hex, with captive washer, 6 x 10 mm

12шт.

14

132512A1

PLATE

- thrust, rocker shaft

12шт.

15

132510A1

SHAFT

- rocker arm

6шт.

16

132514A1

ROCKER

ARM - rocker, includes bushing, inlet and exhaust valves

12шт.

17

132505A1

BUSHING

- rocker arm

12шт.

18

132509A1

NUT

- 10 mm

12шт.

19

132511A1

BRACKET

- rocker arm

6шт.

20

132501A1

SCREW,Adj, M8 x 17mm

- adjusting, 8 x 17 mm

6шт.

21

132502A1

WASHER

- lock, 8 mm

6шт.

22

132507A1

BOLT,M10 x 84mm

- special, 10 x 84 mm, rocker arm bracket

6шт.

23

132508A1

O-RING

- bracket

6шт.
