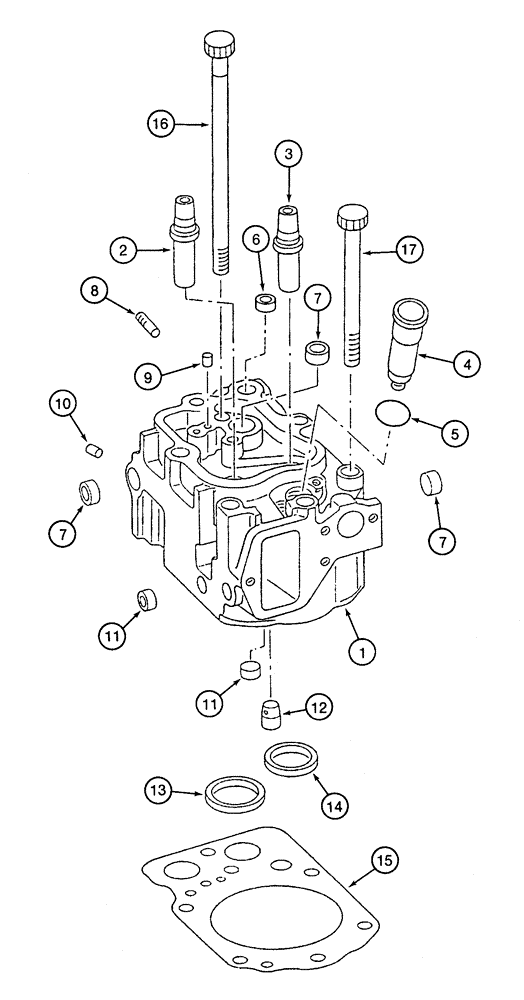

Запчасти Case 9060 (2-32) - CYLINDER HEAD (02) - ENGINE

132277A1

HEAD (CYLINDER)

HEAD - cylinder, Includes: Ref. 1 - 14

6шт.

1

NSS

NOT SOLD SEPARAT

HEAD - cylinder

1шт.

2

132308A1

GUIDE

- intake valve

1шт.

3

132309A1

GUIDE

- exhaust valve

1шт.

4

132294A1

FUEL TUBE

TUBE - holder, fuel injector

1шт.

5

132299A1

O-RING

- injector tube

1шт.

6

132301A1

CAP

PLUG - freeze, 18 mm

1шт.

7

132300A1

CAP

PLUG - freeze, 25 mm

3шт.

8

132296A1

STUD

- cylinder head, 10 x 43 mm

4шт.

9

132298A1

SPRING

PIN - roll, 6 x 12 mm

1шт.

10

132297A1

PLUG

- special, 11 mm

1шт.

11

132302A1

CAP

PLUG - freeze, 20 mm

2шт.

12

132293A1

ORIFICE RING

NOZZLE - water director

1шт.

13

132307A1

SEAT, VALVE

SEAT - intake valve

1шт.

14

132306A1

SEAT, VALVE

SEAT - exhaust valve

1шт.

15

132295A1

CYLINDER HEAD GASKET

- cylinder head

6шт.

16

132305A1

BOLT,M14 x 249mm

- hex flange, 14 x 249 mm

6шт.

17

132303A1

BOLT,M14 x 181mm

- hex flange, 14 x 181 mm

36шт.
