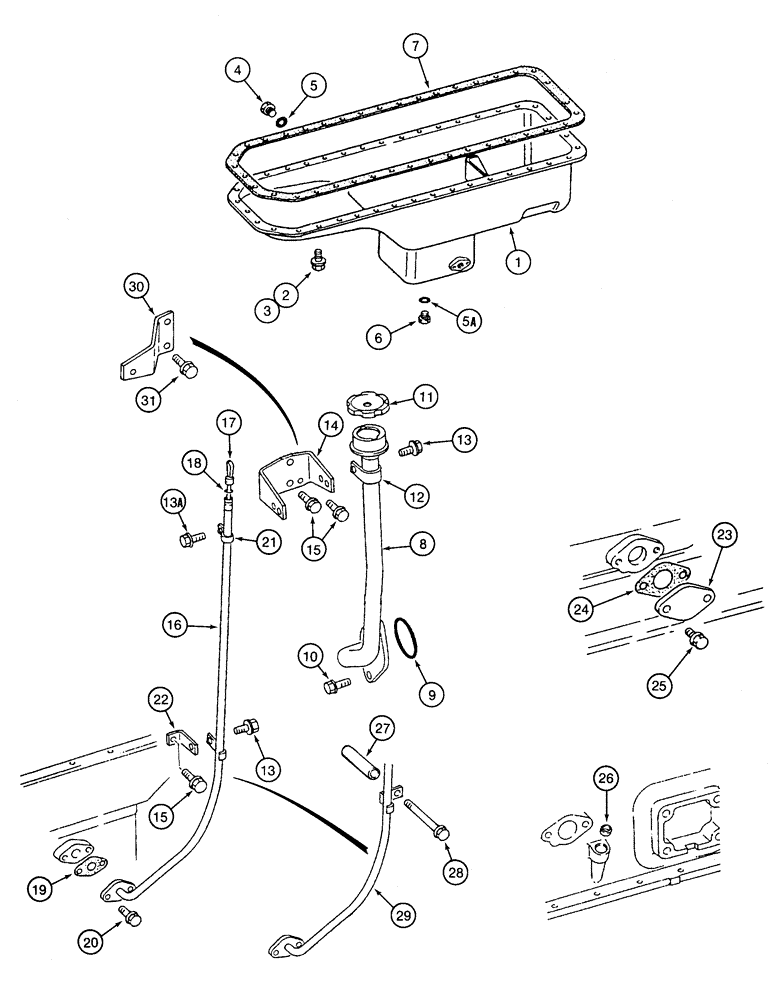

Запчасти Case 9060 (2-30) - OIL PAN, FILLER AND DIPSTICK (02) - ENGINE

1

ME058105

PAN, ENGINE OIL

PAN - oil, bottom ported and has port for ref 4 and 5 plug and gasket

1шт.

1

240052A1

PAN, ENGINE OIL

PAN - oil, engine, bottom ported only

1шт.

2

132361A1

BOLT,Hex Flg, M10 x 18mm

- hex flange, 10 x 18 mm

37шт.

3

132364A1

BOLT,Hex, M10 x 25mm, W/ Wshr

- hex, with captive washer, 10 x 25 mm

2шт.

4

MF665007

PLUG

- hex, 20 mm, if used

1шт.

5

132359A1

OIL PAN GASKET SET

- 20 mm, plug, if used

1шт.

5a

133291A1

O-RING

GASKET - seal

1шт.

6

CASH410605

PLUG,18mm OD x 1.5 Thd Pitch

- hex, 18 mm

1шт.

7

132356A1

OIL PAN GASKET SET

- oil pan

1шт.

8

240055A1

TUBE

- oil filler, was ME058993

1шт.

9

132399A1

O-RING

- oil fill tube

1шт.

10

132385A1

BOLT,Hex Flg, M12 x 25mm

- hex flange, 12 x 25 mm

2шт.

11

1271914C1

CYLINDER END CAP

CAP - oil filler

1шт.

12

132398A1

CLAMP

- special, 12.2 mm dia, oil fill tube

1шт.

13

132373A1

BOLT,Hex Flg, M6 x 12mm

- hex flange, 6 x 12 mm

2-3шт.

13a

132374A1

BOLT,Hex Flg, M6 x 20mm

BOLT - hex flange, 6 x 20 mm

1шт.

14

132672A1

BRACKET

- oil fill tube, if used

1шт.

15

132289A1

BOLT,Hex Flg, M10 x 16mm

- hex, flange, 10 x 16 mm, if used

3шт.

16

133249A1

TUBE

- dipstick, used with ref 22 bracket, if used

1шт.

17

133172A1

DIPSTICK

- oil

1шт.

18

132399A1

O-RING

-, Serial Range: dipstick-tube

1шт.

19

132394A1

GASKET

- special

1шт.

20

132376A1

BOLT,Hex, M10 x 20mm, W/ Wshr

- hex, with captive washer, 10 x 20 mm

2шт.

21

132398A1

CLAMP

- special, 12.2 mm dia, dipstick tube

1шт.

22

3094290700

STAY

SUPPORT - dipstick tube, used with ref 16 tube, if used

1шт.

23

132671A1

COVER

- cylinder block

1шт.

24

132396A1

GASKET

- cover

1шт.

25

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

2шт.

26

132367A1

CAP

PLUG - special, 15 mm, at oil fill tube

1шт.

27

240056A1

SPACER

BRACKET - special, if used

1шт.

28

240059A1

BOLT

- hex flange, 10 x 67 mm, if used

1шт.

29

240058A1

GUIDE

TUBE - dipstick, used with ref 27 bracket, if used

1шт.

30

240054A1

SUPPORT

BRACKET - dipstick tube, if used

1шт.

31

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm, if used

2шт.
