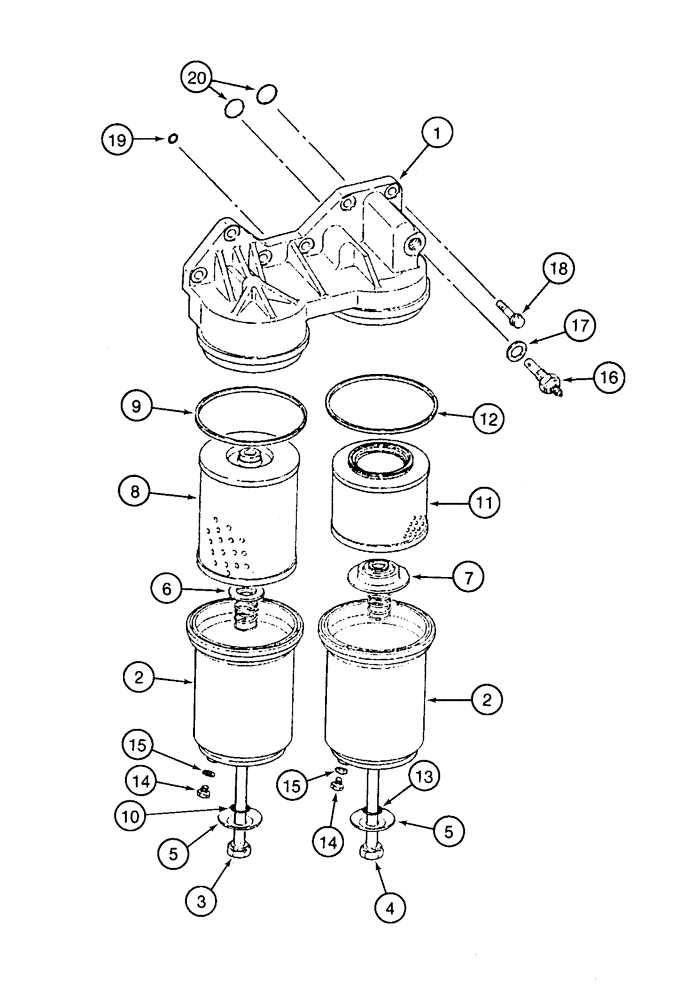

Запчасти Case 9060 (2-24) - OIL FILTER (02) - ENGINE

133254A1

FILTER ASSY

FILTER - oil, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - oil filter

1шт.

2

133256A1

BOWL

HOUSING - oil filter

2шт.

3

133257A1

BOLT,M16 x 226mm

BOLT - center, oil filter, 16 x 226 mm, filter retaining

1шт.

4

133258A1

BOLT,M16 x 165mm

BOLT - center, oil filter, 16 x 165 mm, filter retaining

1шт.

5

133267A1

WASHER

- flat, 16.5 mm

2шт.

6

133260A1

RETAINER

- bypass filter element

1шт.

7

133262A1

RETAINER

- full flow filter element

1шт.

133263A1

FILTER

KIT - bypass filter element, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - bypass filter

1шт.

9

133259A1

GASKET

O-RING - filter, Serial Range: housing-head

1шт.

10

133268A1

O-RING

- filter housing at retaining bolt

1шт.

133265A1

FILTER

KIT - full flow filter element, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT - full flow filter

1шт.

12

133259A1

GASKET

O-RING - filter, Serial Range: housing-head

1шт.

13

133268A1

O-RING

- filter housing at retaining bolt

1шт.

14

133271A1

PLUG

- special

2шт.

15

132342A1

GASKET

- 10 mm

2шт.

16

133255A1

SWITCH

- pressure

1шт.

17

132359A1

OIL PAN GASKET SET

- 20 mm, filter switch

1шт.

18

133276A1

BOLT,Hex Flg, M10 x 35mm

- hex, flange, 10 x 35 mm

7шт.

19

133272A1

O-RING

- 10.8 mm

1шт.

20

133274A1

O-RING

- 24 mm

2шт.
