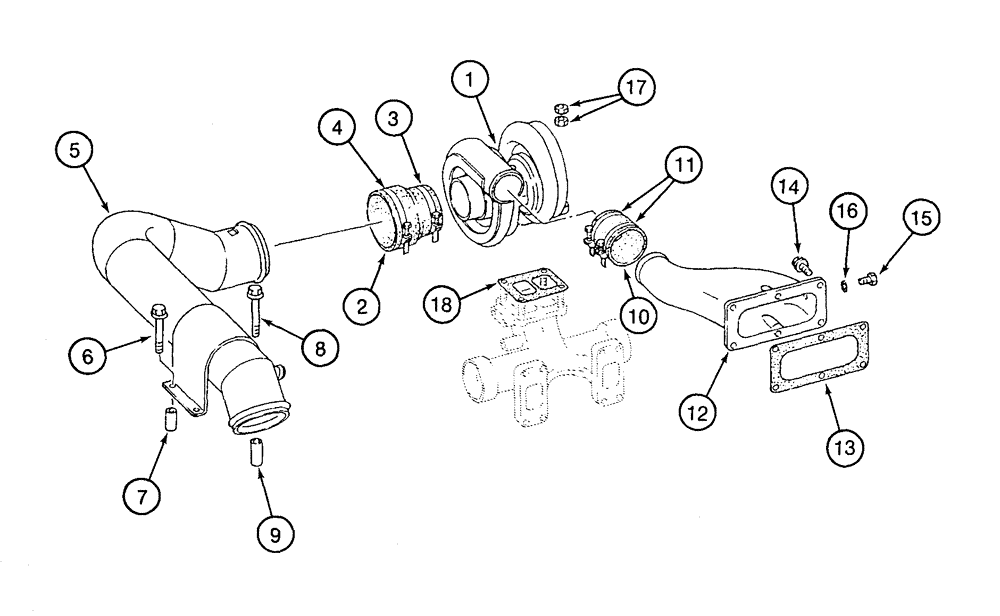

Запчасти Case 9060 (2-20) - TURBOCHARGER SYSTEM (02) - ENGINE

1

134925A1

ASSEMBLY

TURBOCHARGER ASSEMBLY - engine, parts list figure 2-22

1шт.

2

134959A1

HOSE

- 3-3/4 inch (95 mm) long, turbocharger inlet

1шт.

3

134980A1

CLAMP

- special, 76 mm diameter

1шт.

4

134979A1

HOSE CLAMP

CLAMP - hose, 101 mm diameter

1шт.

5

136078A1

PIPE

- air intake

1шт.

6

134967A1

BOLT,Hex Flg, M8 x 65mm

- hex flange, 8 x 65 mm

2шт.

7

136085A1

SPACER

- tube, 28 mm long

2шт.

8

134975A1

BOLT,Hex Flg, M8 x 80mm

- hex flange, 8 x 80 mm

1шт.

9

136084A1

SPACER

- tube, 8 x 40 mm long

1шт.

10

134958A1

HOSE

- 2-1/2 inch (65 mm) long

1шт.

11

134931A1

COUPLING

- air inlet hose, adjustable

2шт.

12

136082A1

PIPE

- turbocharger to inlet manifold

1шт.

13

136080A1

GASKET

- inlet manifold

1шт.

14

134971A1

BOLT,Hex Flg, M8 x 20mm

- hex flange, 8 x 20 mm

6шт.

15

132317A1

PLUG

- 10 mm

1шт.

16

132342A1

GASKET

- 10 mm

1шт.

17

134957A1

NUT

- hex, 10 mm

8шт.

18

134960A1

GASKET

- turbocharger

1шт.
