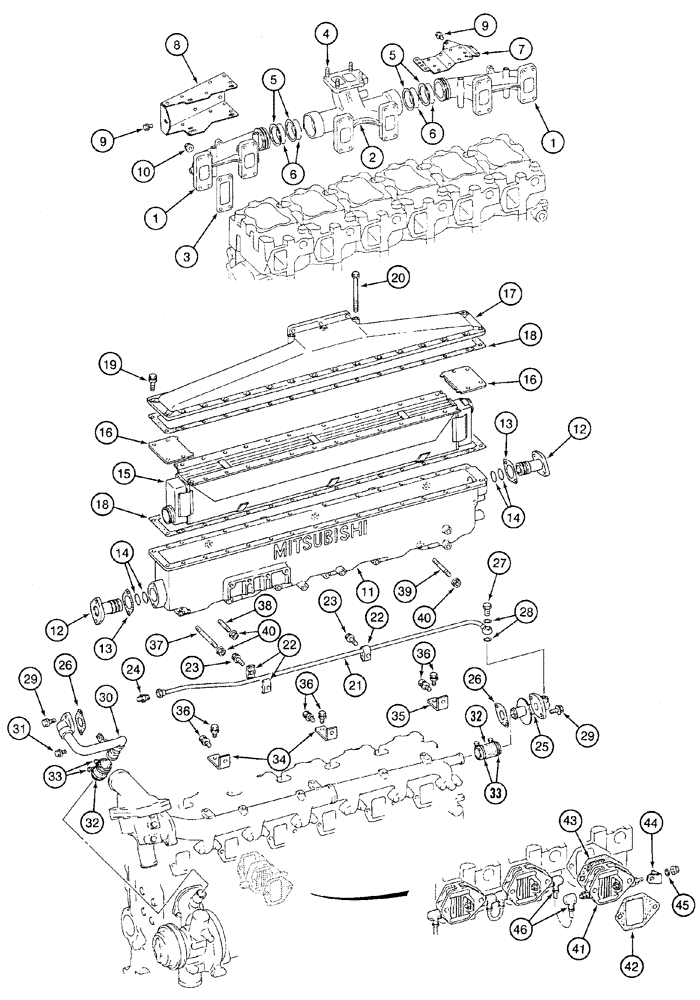

Запчасти Case 9060 (2-18) - EXHAUST MANIFOLD AND RELATED PARTS, INTERCOOLER (02) - ENGINE

1

134860A1

MANIFOLD

- exhaust, outer

2шт.

2

134864A1

MANIFOLD

- exhaust, center

1шт.

3

134861A1

MANIFOLD GASKET

- manifold

6шт.

4

134865A1

STUD

- special, 10 x 30 mm, center manifold

4шт.

5

134866A1

SEALING RING

RING - seal, thick

4шт.

6

134867A1

SEALING RING

RING - seal, thin

4шт.

7

134862A1

INSULATOR

SHIELD - heat

1шт.

8

134863A1

INSULATOR

SHIELD - heat

1шт.

9

134869A1

BOLT,M8 x 12mm, w/ Captive Wshr

- with captive washer, 8 x 12 mm

8шт.

10

134868A1

FLANGE NUT

- hex flange, self-locking, 10 mm

24шт.

136060A1

COOLER

INTERCOOLER ASSEMBLY - engine, Includes: Ref. 11 - 20

1шт.

11

136067A1

MANIFOLD

- intercooler

1шт.

12

136073A1

PIPE

- air, intercoooler

2шт.

13

136064A1

GASKET

- special, intercoooler

2шт.

13

136065A1

GASKET

- special, intercoooler

2шт.

14

136076A1

O-RING

- engine air intake line, 30 mm, intercoooler

4шт.

15

136063A1

RADIATOR

- intercooler

1шт.

16

136068A1

PLATE

- intercooler core setting

2шт.

17

136062A1

COVER

- intercooler

1шт.

18

136066A1

GASKET

- intercooler

2шт.

19

134848A1

BOLT,Spcl, M8 x 35mm, w/ Captive Wshr

- special, with captive washer, 8 x 35 mm, intercoooler

29шт.

20

134847A1

BOLT,Spcl, M8 x 115mm, w/ Captive Wshr

BOLT - special, with captive washer, 8 x 115 mm, intercoooler

3шт.

21

136070A1

PIPE

- intercooler, air

1шт.

22

133329A1

CLAMP

- tube, 2 x 6 mm, air intake line, intercoooler

4шт.

23

133337A1

BOLT,Hex Flg, M6 x 30mm

- hex flange, 6 x 30 mm, intercoooler

2шт.

24

133327A1

FITTING

ADAPTER - straight, intercoooler

1шт.

25

136072A1

PIPE

- water, intercooler

1шт.

26

136064A1

GASKET

- special, intercoooler

2шт.

26

136065A1

GASKET

- special, intercoooler

2шт.

27

133233A1

SEAT, VALVE

SEAT - relief valve, air intake line, intercoooler

1шт.

28

132342A1

GASKET

- 10 mm, intercoooler

2шт.

29

133294A1

BOLT,Hex Flg, M10 x 30mm

- hex flange, 10 x 30 mm, intercoooler

4шт.

30

136071A1

PIPE

- water, intercooler

1шт.

31

132289A1

BOLT,Hex Flg, M10 x 16mm

- hex, flange, 10 x 16 mm, intercoooler

1шт.

32

136069A1

HOSE

CONNECTOR - special, rubber, intercooler

2шт.

33

136077A1

CLIP

CLAMP - adj, 40 mm dia, intercoooler

4шт.

34

136074A1

BRACKET

SUPPORT - air intake line, intercoooler

2шт.

35

136075A1

BRACKET

SUPPORT - air intake line, intercoooler

1шт.

36

132364A1

BOLT,Hex, M10 x 25mm, W/ Wshr

- hex, with captive washer, 10 x 25 mm, intercoooler

6шт.

37

134845A1

STUD

- special, long, 10 x 125 mm, intercoooler

5шт.

38

134842A1

STUD

- special, short, 10 x 60 mm, intercoooler

6шт.

39

134843A1

STUD

- special, medium, 10 x 100 mm, intercoooler

1шт.

40

134763A1

NUT

- hex flange, 10 mm, intercoooler

12шт.

41

136088A1

HEATER ASSY.

HEATER - air intake, intercoooler

6шт.

42

134855A1

MANIFOLD GASKET

- manifold, intercoooler

6шт.

43

136089A1

GASKET

- special, with net, intercoooler

6шт.

44

136090A1

PLATE

- ground strap, intercoooler

1шт.

45

133247A1

WASHER

- flat, 10 mm, intercoooler

1шт.

46

136087A1

CABLE

- air intake heater, 120 mm, intercoooler

5шт.
