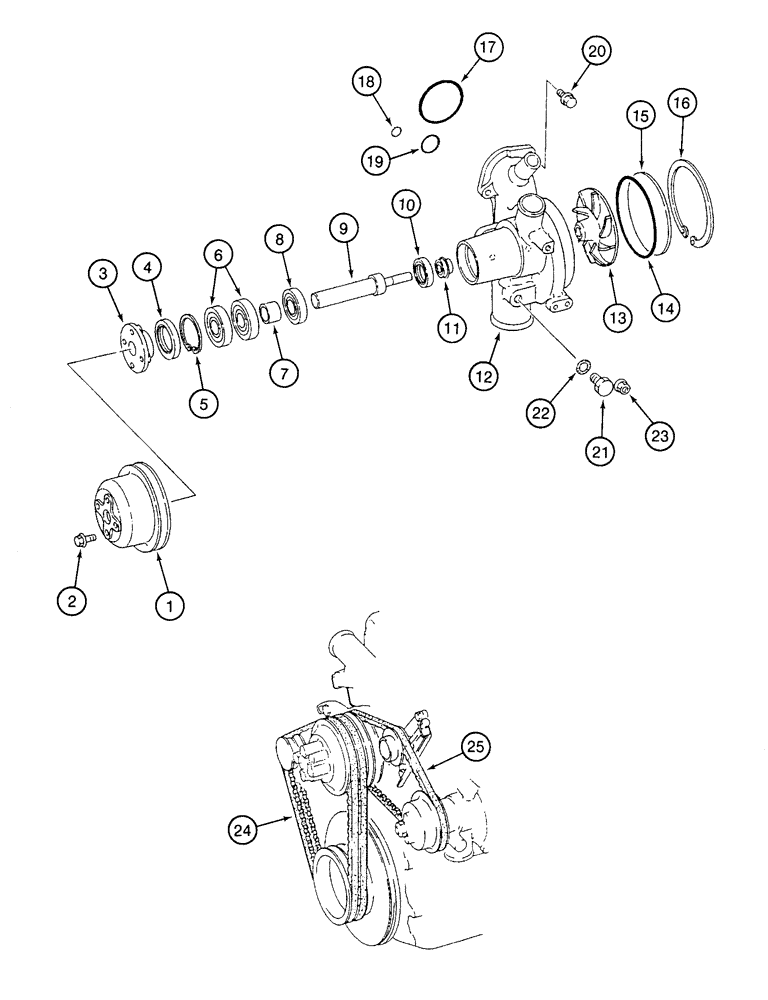

Запчасти Case 9060 (2-16) - WATER PUMP AND BELTS (02) - ENGINE

1

134546A1

PULLEY

- water pump

1шт.

2

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

4шт.

133340A1

PUMP, WATER

PUMP - water, Includes: Ref. 3 - 16

1шт.

3

134744A1

FLANGE

- water pump, pulley drive

1шт.

Part of seal kit P/N 133343A1

1шт.

4

134752A1

OIL SEAL

- oil, pump shaft

1шт.

5

134770A1

RING, SNAP

RING - retaining, bearings

1шт.

6

134736A1

BALL BEARING

- ball, outer

2шт.

Part of seal kit P/N 133343A1

1шт.

7

134767A1

SPACER

- 20 mm, bearings

1шт.

8

134737A1

BALL BEARING

- ball, inner

1шт.

Part of seal kit P/N 133343A1

1шт.

9

134750A1

SHAFT

- pump

1шт.

Part of seal kit P/N 133343A1

1шт.

10

134753A1

OIL SEAL

- oil, pump shaft, inner, 8 mm thick

1шт.

Part of seal kit P/N 133343A1

1шт.

11

134749A1

SEAL

- unitized, shaft

1шт.

Part of seal kit P/N 133343A1

1шт.

12

133400A1

BODY

HOUSING - water pump

1шт.

13

133408A1

IMPELLER

- water pump

1шт.

Part of seal kit P/N 133343A1

1шт.

14

134762A1

O-RING

- 135 mm dia, impeller

1шт.

Part of seal kit P/N 133343A1

1шт.

15

133401A1

COVER

- water pump

1шт.

16

134624A1

RING, SNAP

RING - retaining, cover

1шт.

17

134756A1

O-RING

- 75 mm

1шт.

Part of seal kit P/N 133343A1

1шт.

18

133291A1

O-RING

- 14 mm

1шт.

Part of seal kit P/N 133343A1

1шт.

19

134757A1

O-RING

- 29 mm

1шт.

Part of seal kit P/N 133343A1

1шт.

20

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

2шт.

21

132430A1

PLUG

- 16 mm, water pump

1шт.

22

132412A1

GASKET

- special, 16 mm

1шт.

23

134763A1

NUT

- hex flange, 10 mm

1шт.

24

134828A1

V-BELT

BELT - V-type, 1480 x 2 mm, fan and alternator drive

1шт.

25

134616A1

V-BELT

V-BELT - 1115 x 1 mm, water pump drive

1шт.

133343A1

SET OF PARTS

KIT - repair, water pump, Includes: Ref. 3, 6, 8 - 11, 13, 14 & 17 - 19

1шт.
