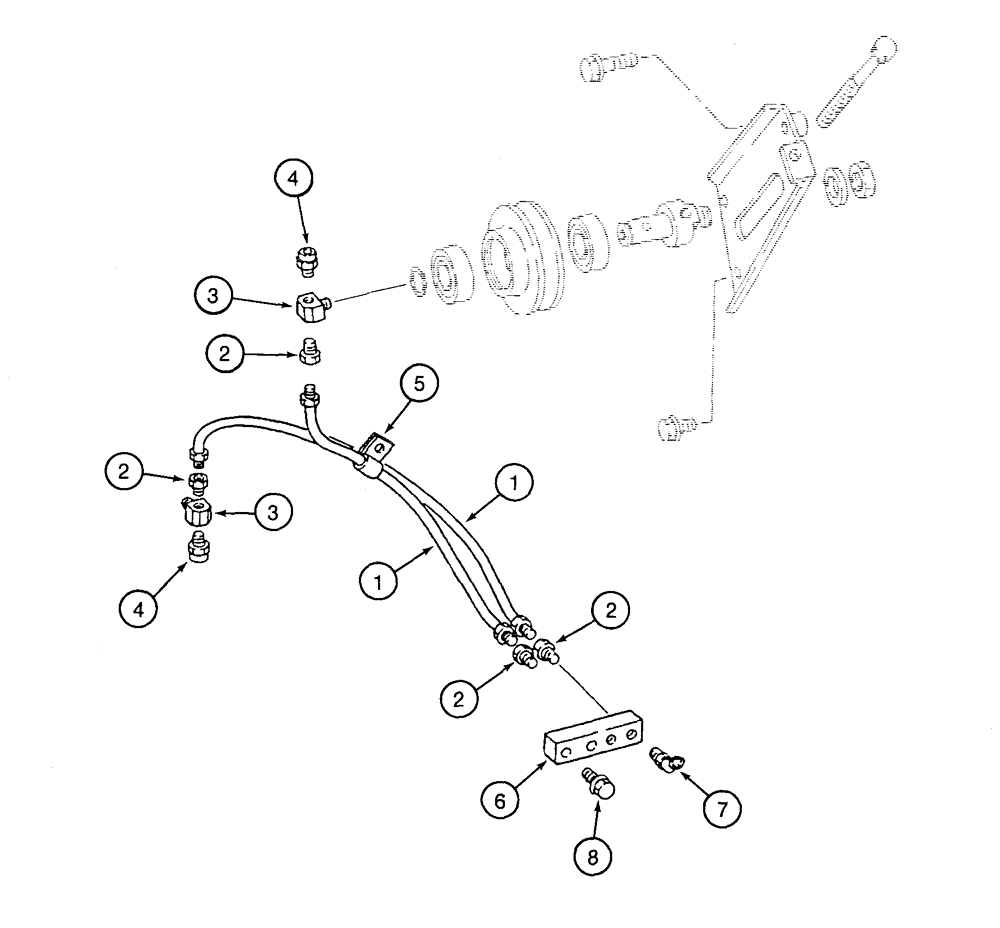

Запчасти Case 9060 (2-14) - FAN LUBE LINES (02) - ENGINE

1

134726A1

TUBE

- grease, 6 x 490 mm

2шт.

2

134817A1

FITTING

CONNECTOR - straight

4шт.

3

134816A1

FITTING

CONNECTOR - T-type, to fan idler shaft and fan drive housing

2шт.

4

134754A1

VALVE

- grease escape

2шт.

5

134764A1

CLIP

- tube

1шт.

6

134818A1

FITTING

MANIFOLD - grease fitting

1шт.

7

134794A1

NIPPLE, LUBE

FITTING - grease, 45 degrees

2шт.

8

134809A1

BOLT,Hex, M8 x 30mm

- hex flange, 8 x 30 mm

2шт.
