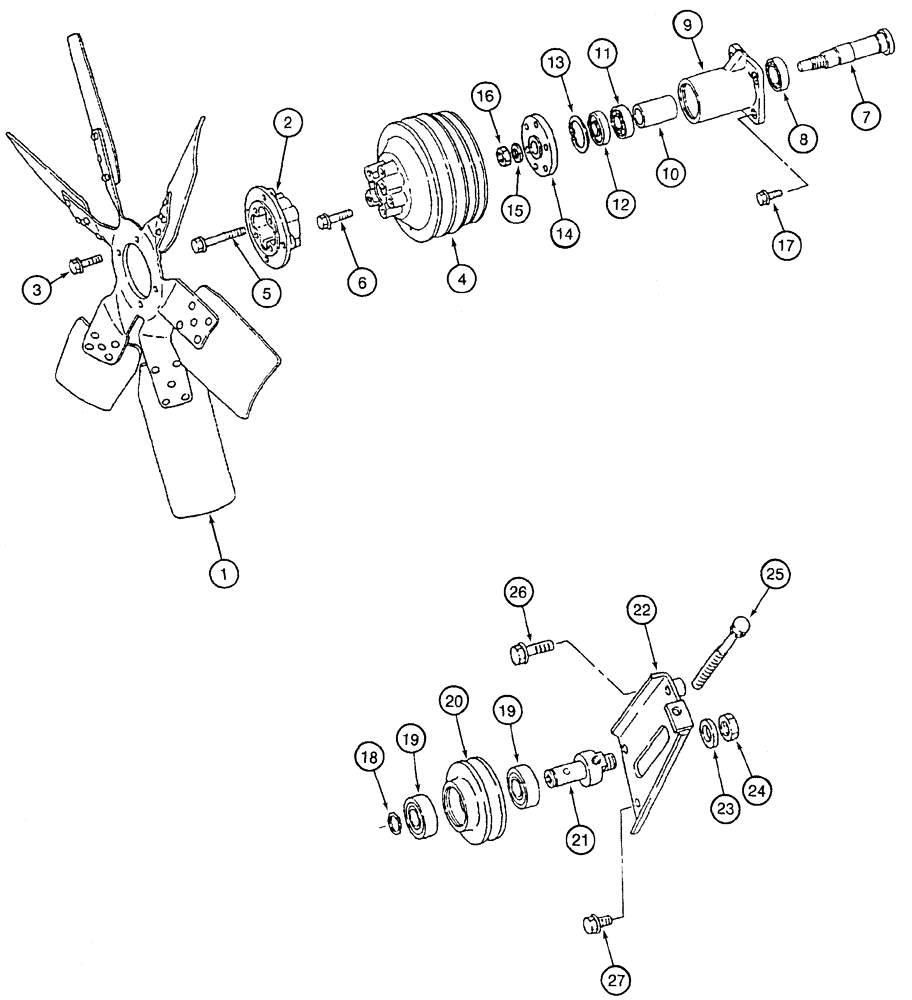

Запчасти Case 9060 (2-12) - FAN, DRIVE AND IDLER (02) - ENGINE

1

134635A1

FAN

- cooling

1шт.

2

134716A1

SPACER

- fan

1шт.

3

133168A1

BOLT,M10 x 30mm, W/ Captive Wshr

- with captive washer, 10 x 30 mm

4шт.

3

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

6шт.

4

134781A1

PULLEY

- fan

1шт.

5

134797A1

BOLT,Hex, M10 x 90mm

- hex flange, 10 x 90 mm

4шт.

134793A1

PULLEY

DRIVE fan, Includes: Ref. 6 - 16

1шт.

6

134807A1

BOLT,Hex, M10 x 50mm

- hex flange, 10 x 50 mm

4шт.

7

134783A1

SHAFT

- fan drive

1шт.

8

134776A1

BALL BEARING

BEARING - ball, fan drive shaft, head end

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - fan drive

1шт.

10

134786A1

SPACER

- fan drive shaft

1шт.

11

134739A1

BALL BEARING

BEARING - ball, inner

1шт.

12

134774A1

BALL BEARING

BEARING - pulley drive, outer

1шт.

13

134770A1

RING, SNAP

RING - retaining

1шт.

14

134777A1

FLANGE

- coupling, fan drive

1шт.

15

134789A1

WASHER

- flat, 22.5 x 36 mm

1шт.

16

132633A1

NUT

- hex jam, 20 mm

1шт.

17

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

2шт.

17

133250A1

BOLT,Hex, M12 x 25mm, W/ Captive Wshr

- hex, with captive washer, 12 x 25 mm

2шт.

134792A1

PULLEY ASSY.

PULLEY - fan idler, Includes: Ref. 18 - 25

1шт.

18

134771A1

RING, SNAP

RING - retaining

1шт.

19

134738A1

BEARING

- ball, fan idler shaft

2шт.

20

134778A1

PULLEY

- fan idler

1шт.

21

134751A1

SHAFT

- idler pulley

1шт.

22

133341A1

BRACKET

- idler pulley

1шт.

23

134787A1

WASHER

- flat, 17 mm

1шт.

24

134814A1

JAM NUT

- hex jam, 16 mm

1шт.

25

240288A1

BOLT

- hex flange, 10 x 75 mm

1шт.

26

132500A1

BOLT,Hex Flg, M10 x 25mm

- hex flange, 10 x 25 mm

1шт.

26

133294A1

BOLT,Hex Flg, M10 x 30mm

- hex flange, 10 x 30 mm

1шт.

27

132378A1

BOLT,Hex Flg, M10 x 20mm

- hex flange, 10 x 20 mm

6шт.

27

133168A1

BOLT,M10 x 30mm, W/ Captive Wshr

- with captive washer, 10 x 30 mm

4шт.
