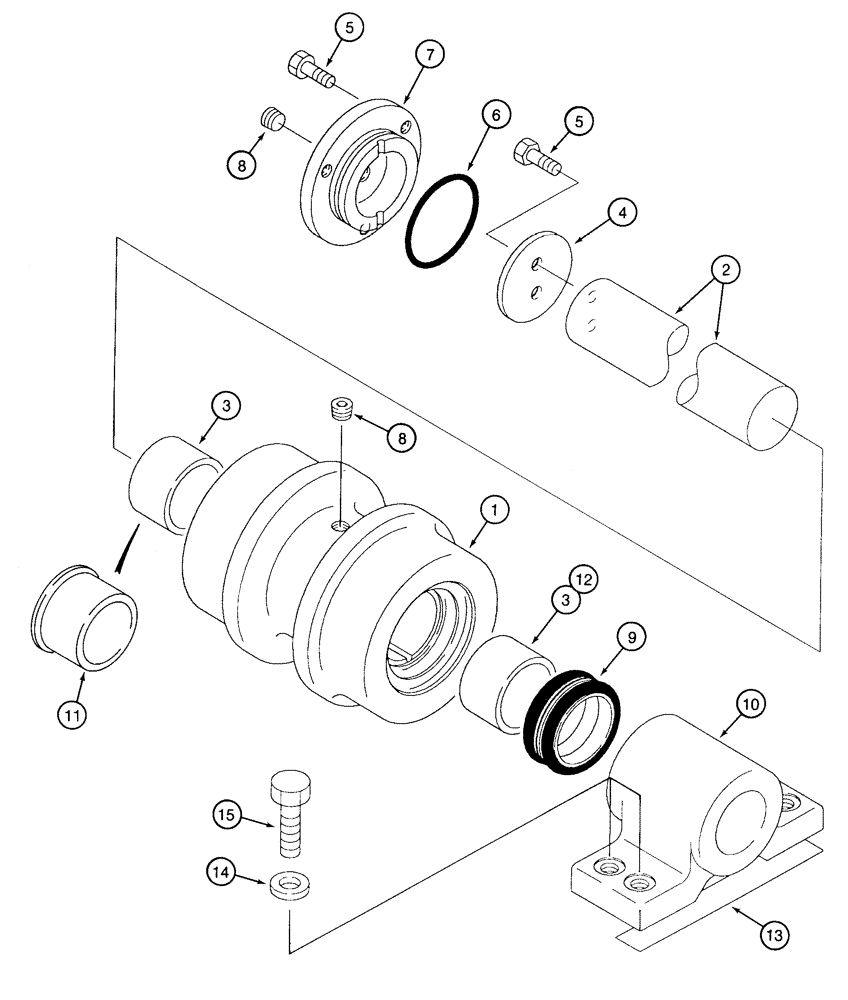

Запчасти Case 9060 (5-10) - TRACK CARRIER ROLLER, MANUFACTURED BY SUMITOMO (11) - TRACKS/STEERING

152140A1

ROLLER ASSY.

ROLLER - carrier, early 9060 Excavator production, manufactured by Sumitomo, no longer available, order 158745A1, Includes: Ref. 1 - 12

4шт.

See figure 5-12 for service replacement carrier rollers manufactured by Intertrac.

1шт.

158745A1

ROLLER ASSY.

ROLLER - carrier, final 9060 Excavator production, manufactured by Sumitomo, Includes: Ref. 1 - 12

4шт.

See figure 5-12 for service replacement carrier rollers manufactured by Intertrac.

1шт.

1

NSS

NOT SOLD SEPARAT

ROLLER - carrier, track

1шт.

2

152101A1

WHEEL SHAFT

SHAFT - carrier roller

1шт.

3

152105A1

BUSHING

- nylon, 60 x 65 x 40 mm long, 152140A1 roller assembly only

2шт.

4

152147A1

PLATE, THRUST

RETAINER - shaft

1шт.

5

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

5шт.

6

154679A1

O-RING

- cover

1шт.

7

152143A1

COVER

- end, carrier roller

1шт.

8

150821A1

PLUG

- port, carrier roller

2шт.

9

150737A1

SEAL

- face, includes two seals and two rings, carrier roller

1шт.

10

152103A1

BRACKET

- mounting, carrier roller

1шт.

11

158747A1

BUSHING

- flanged, fabricated, 60 x 64 x 45 mm long, 158745A1 roller assembly only

1шт.

12

158748A1

BUSHING

- fabricated, 60 x 64 x 42 mm long, 158745A1 roller assembly only

1шт.

13

150003A1

HUB

SHIM - bracket height, 0.03 inch (0.8 mm) thick

1шт.

14

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened, Bracket mounting

16шт.

15

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

16шт.
