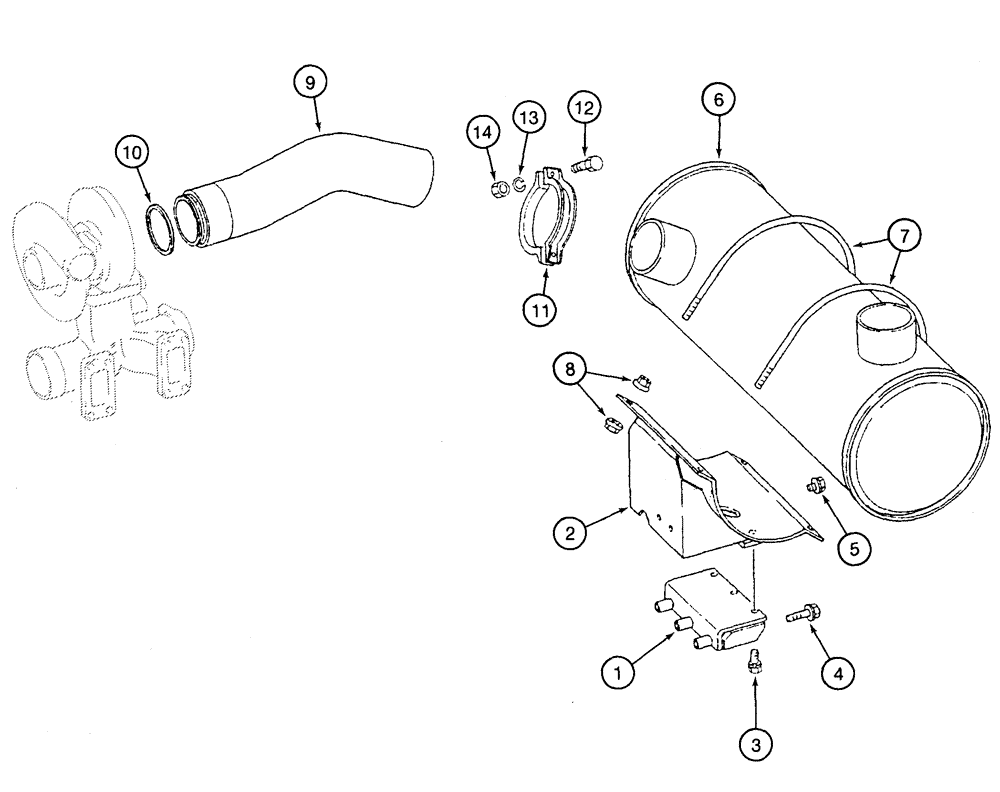

Запчасти Case 9060 (2-10) - MUFFLER AND MOUNTING PARTS (02) - ENGINE

1

135006A1

SUPPORT

- muffler bracket

1шт.

2

135005A1

BRACKET

- muffler support

1шт.

3

132376A1

BOLT,Hex, M10 x 20mm, W/ Wshr

- hex, with captive washer, 10 x 20 mm

3шт.

4

135003A1

BOLT,Hex Flg, M10 x 95mm

- hex flange, 12 x 95 mm

3шт.

5

132489A1

BOLT,Hex Flg, M12 x 16mm

- hex flange, 12 x 16 mm

2шт.

6

240329A1

MUFFLER

- exhaust

1шт.

7

135007A1

U-BOLT,M10 x 277mm

- 10 x 277 mm, muffler mounting

2шт.

8

134763A1

NUT

- hex flange, 10 mm

8шт.

9

135004A1

PIPE, EXHAUST SYSTEM

PIPE -, Serial Range: muffler,-turbocharger

1шт.

10

134995A1

SEALING RING

RING - seal, pipe

1шт.

11

134999A1

CLAMP

-, Serial Range: pipe,-muffler

2шт.

12

135000A1

BOLT,Hex, M10 x 30mm

- hex, 10 x 30 mm

2шт.

13

132620A1

WASHER

- lock, 10 mm

2шт.

14

133286A1

NUT

- hex, 10 mm

2шт.
