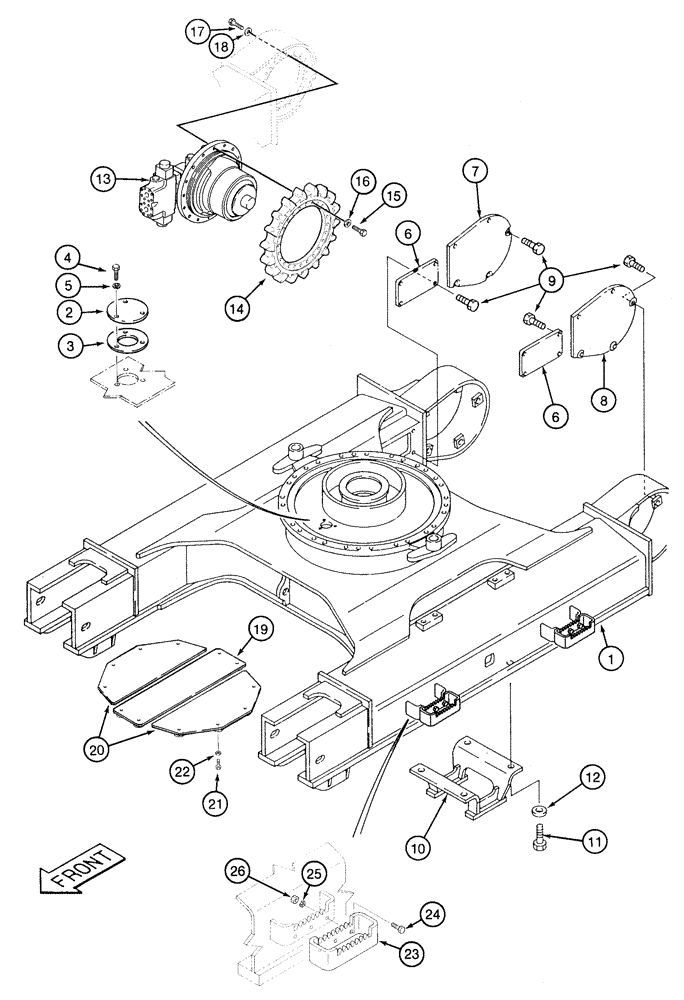

Запчасти Case 9060 (5-02) - TRACK FRAME AND DRIVE SPROCKET (11) - TRACKS/STEERING

1

152209A1

FRAME

- track, Serial Range: EAC0600001-EAC0600001

1шт.

1

152209A1

FRAME

- track, Serial Range: EAC0600002-EAC0600002

1шт.

1

170062A1

FRAME

- track, Serial Range: EAC0600003-EAC0600018

1шт.

1

170064A1

FRAME

- track, Start Serial: EAC0600019

1шт.

2

150432A1

LID

COVER - access, grease fill, turntable gear

1шт.

3

150436A1

PACKING

GASKET - access cover

1шт.

4

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

3шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

6

151820A1

COVER

- access, hydraulic, Serial Range: lines-motor

2шт.

7

151811A1

COVER

- access, track drive motor, right-hand

1шт.

8

151816A1

COVER

- access, track drive motor, left-hand

1шт.

9

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access cover

18шт.

10

152027A1

GUARD

GUIDE - track

2шт.

11

628-24050

BOLT,Hex, M24 x 3 x 50mm, Cl 10.9, Full Thd

- hex, full threads, 24 - 3.0 x 50 mm, class 10.9

8шт.

12

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special, was 151003A1

8шт.

13

REF

INSTRUCTION

MOTOR - track drive, see Figure 6-2 - 6-10

2шт.

14

151434A1

SPROCKET ASSY.

SPROCKET - track drive

2шт.

15

626-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

- hex, full threads, 24 - 3.0 x 70 mm, class 10.9

48шт.

16

151003A1

WASHER

- flat, special

48шт.

17

828-24100

BOLT,Hex, M24 x 3 x 100mm, Cl 10.9

- hex, 24 - 3.0 x 100 mm, class 10.9

48шт.

18

151003A1

WASHER

- flat, special

48шт.

19

151289A1

COVER

- access, clean out, turn table gear, inner

1шт.

20

151283A1

COVER

- access, clean out, turn table gear, outer

2шт.

21

626-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

12шт.

22

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened

12шт.

23

151961A1

STEP

- operator, bolted to track frame

4шт.

24

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

25

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

12шт.

26

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

12шт.
