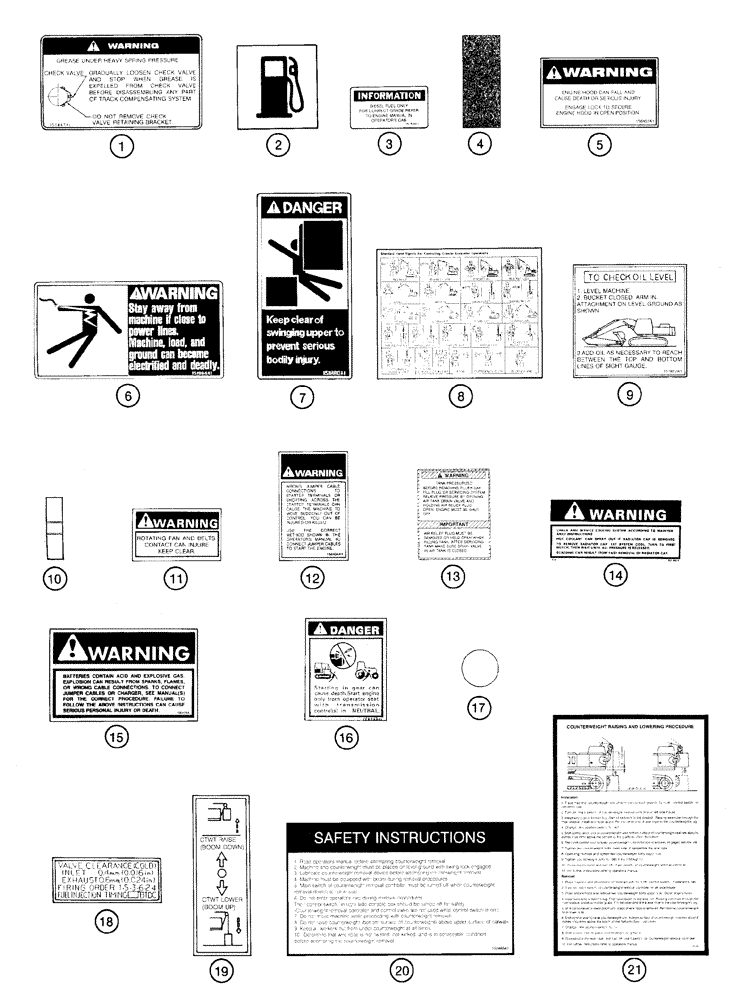

Запчасти Case 9060 (9-80) - DECALS - FRENCH LANGUAGE, WARNING, DANGER AND MISCELLANEOUS (09) - CHASSIS/ATTACHMENTS

1

158283A1

DECAL

- Warning, grease under heavy spring pressure (French)

2шт.

2

150104A1

DECAL

- fuel tank

1шт.

3

158274A1

DECAL

- Information, diesel fuel only (French)

1шт.

4

150108A1

ANTI-SKID STRIP

STRIP - adhesive, anti-skid

12шт.

5

158288A1

DECAL

- Warning, engine hood can fall (French)

1шт.

6

158284A1

DECAL

- Warning, stay away from machine if close to power line (French)

2шт.

7

158285A1

DECAL

- Danger, keep clear of swinging upper (French)

2шт.

8

158270A1

DECAL

- hand signal chart (French)

1шт.

9

158272A1

DECAL

- to check oil level (French)

1шт.

10

150628A1

GAUGE

DECAL - oil level gauge

1шт.

11

321-4324

DECAL

- Warning, rotating fan and belts (French)

1шт.

12

321-6720

DECAL

- Warning, wrong jumper cable connections to starter terminals (French)

1шт.

13

158289A1

DECAL

- Caution/Important, pressurized tank (French)

1шт.

14

321-6701

DECAL

- Warning, check and service cooling system (French)

1шт.

15

321-6719

DECAL

- Warning, batteries contain acid and explosive gas (French)

1шт.

16

158287A1

DECAL

- Danger, starting in gear can cause death (French)

1шт.

17

151756A1

PLATE WASHER

PLATE - bumper, 2 inch circle

4шт.

18

240378A1

PLATE

- Caution, valve clearance

1шт.

19

158292A1

DECAL

- control lever, raise and lower counterweight (French)

1шт.

20

158293A1

DECAL

- Safety Instructions, raise and lower counterweight (French)

1шт.

21

158294A1

DECAL

- Procedure, raise and lower counterweight (French)

1шт.
