Запчасти Case 9060 (9-72) - ESCO TOOTH OPTIONS (09) - CHASSIS/ATTACHMENTS

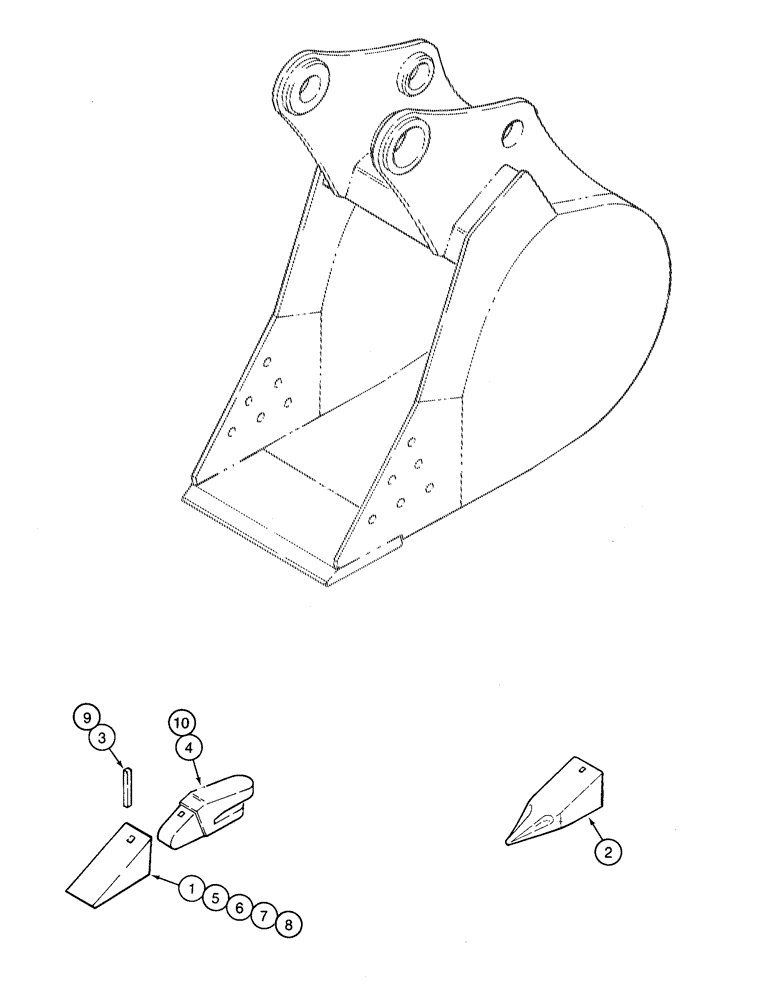

Схема запчастей Case 9060 - (9-72) - ESCO TOOTH OPTIONS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

127565A1

TOOTH

- chisel point, with 2 inch lip adapter

1шт.

For Central Fabricators or H & H heavy duty buckets.

1шт.

2

127566A1

TOOTH

- tiger point, with 2 inch lip adapter

1шт.

For Central Fabricators or H & H heavy duty buckets.

1шт.

3

127567A1

LOCK

- tooth to shank, pin and plug, with 2 inch lip adapter

1шт.

For Central Fabricators or H & H heavy duty buckets.

1шт.

4

127564A1

ADAPTER

SHANK - tooth, 2 inch, also called an adapter, with 2 inch lip adapter

1шт.

For Central Fabricators or H & H heavy duty buckets.

1шт.

5

127569A1

TOOTH

- bucket, chisel point, with 2-1/2 inch lip adapter

1шт.

For Central Fabricators or H & H severe duty buckets.

1шт.

6

127570A1

TOOTH

- bucket, tiger point, with 2-1/2 inch lip adapter

1шт.

For Central Fabricators or H & H severe duty buckets.

1шт.

7

127571A1

TOOTH

- bucket, twin tiger point, with 2-1/2 inch lip adapter

1шт.

For Central Fabricators or H & H severe duty buckets.

1шт.

8

127572A1

TOOTH

- bucket, standard point, with 2-1/2 inch lip adapter

1шт.

For Central Fabricators or H & H severe duty buckets.

1шт.

9

127573A1

LOCK

- tooth to shank, pin and plug, with 2-1/2 inch lip adapter

1шт.

For Central Fabricators or H & H severe duty buckets.

1шт.

10

127568A1

ADAPTER

SHANK - tooth, 2-1/2 inch, also called an adapter, with 2-1/2 inch lip adapter

1шт.

For Central Fabricators or H & H severe duty buckets.

1шт.

Выбрано товаров: 20
